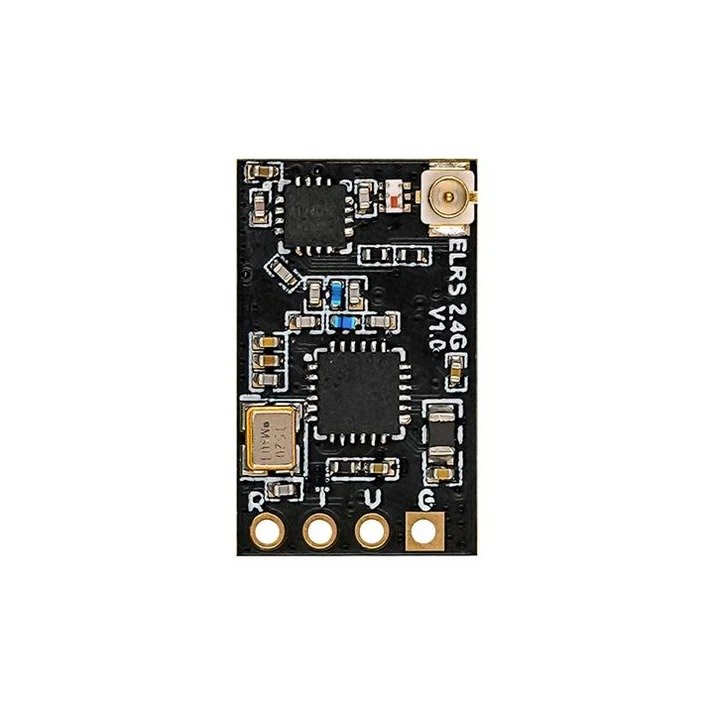

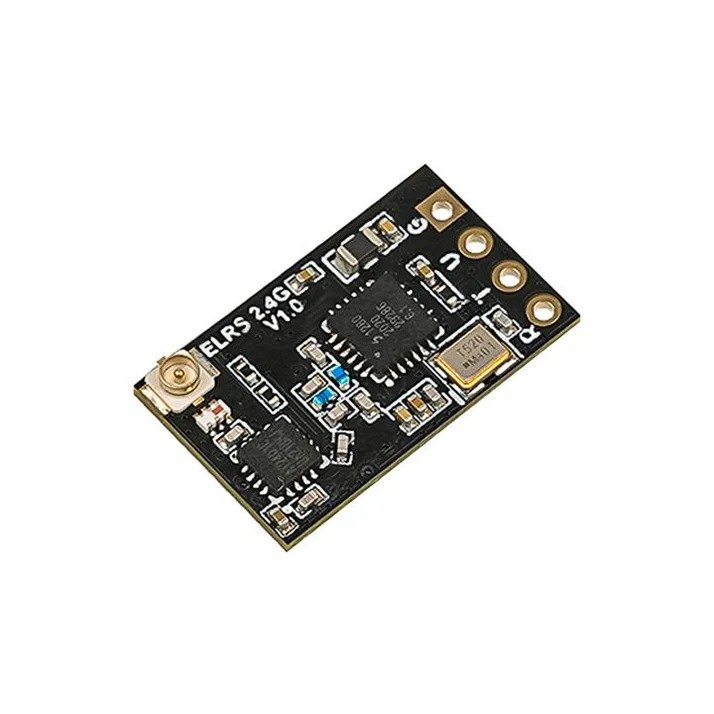

BetaFPV ELRS Nano Receiver – 2.4GHz

Experience Unparalleled Connectivity

The BetaFPV ELRS Nano Receiver – 2.4GHz is engineered to meet the needs of FPV enthusiasts by delivering seamless and reliable signal transmission. Designed with cutting-edge technology, this receiver ensures precision and stability, allowing you to enjoy a flawless flight experience. Whether you are a beginner or a seasoned pilot, this compact and powerful device elevates your equipment’s performance to new heights.

Compact Design for Enhanced Portability

With its small and lightweight structure, the BetaFPV ELRS Nano Receiver can be easily integrated into any drone setup, making it an ideal choice for users looking to optimize space and weight. The compact design doesn’t compromise performance, ensuring you get superior signal strength and minimal latency during use. Its user-friendly installation process and robust build quality make it an indispensable addition to your FPV gear.

Reliable Performance at 2.4GHz

The receiver operates on the highly dependable 2.4GHz frequency, ensuring better range and robust connectivity even in challenging environments. Its compatibility with ExpressLRS (ELRS) protocol enhances its adaptability across various FPV systems. Whether flying indoors or outdoors, this receiver provides consistent connection and responsiveness, empowering pilots to push the boundaries of their craft.

Upgrade your drone setup today with the BetaFPV ELRS Nano Receiver – 2.4GHz and experience the perfect blend of compact design, reliable performance, and cutting-edge technology. It’s time to take your FPV experience to the next level with a receiver that truly delivers.

Specifications:

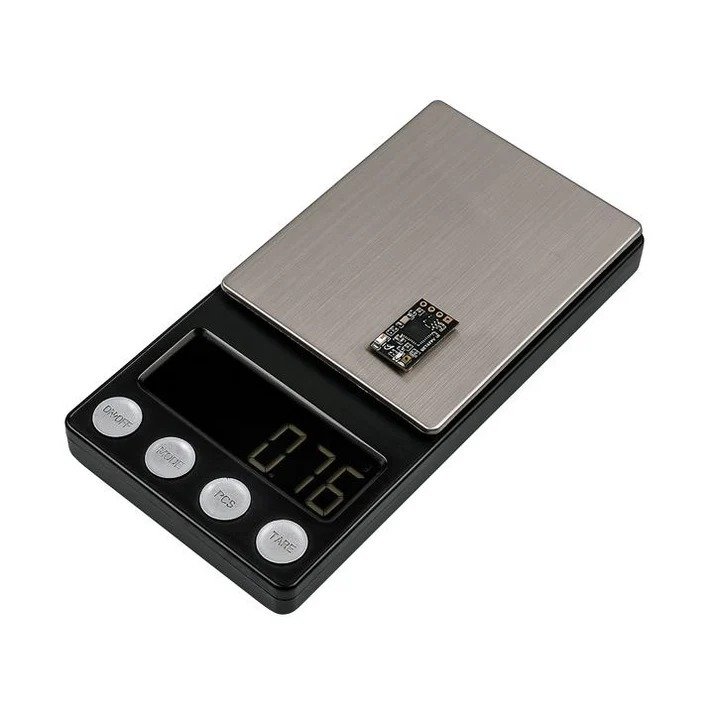

• Weight: 0.7g (receiver only)
• Size: 12mm*19mm
• Telemetry power: 20dbm
• Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
• FCC/868MHz EU
• Input voltage: 5V
• Antenna connector: IPEX MHF

Package Includes:

• 1 * BETAFPV ELRS Nano receiver – 2.4GHz
• 1 * BETAFPV T antenna
• 2 * Spare shrink tube
• 4 * 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
• 1 * pin header 1×4
• 1 * Nano receiver user manual

Diagram

Nano receiver 2.4G version diagram as shown below.

Know more about the PA+LNA. todo

Know More About ExpressLRS

ExpressLRS is an open-source RC link for RC applications. Everyone could find this project on Github or join the discussion in Facebook Group.

ExpressLRS is based on Semtech Lora SX127x or SX1280 hardware for RX and TX respectively. it aims to achieve the best possible link performance in both speeds, latency, and range. At 2.4 GHz a blistering 500Hz is currently supported with a custom OpenTX build. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

More and more vendors start to support the ExpressLRS radio protocol in different parts, like radio transmitter with ELRS in stock, drone with built-in ELRS receiver, ELRS TX module for JR bay, or Nano bay. BETAFPV team take part in this project and provide a series of ExpressLRS components.

Configuration & Bind

ExpressLRS uses the Crossfire serial protocol (AKA CRSF protocol) to communicate between the receiver and the flight controller board. So make sure your flight controller board supports the CRSF serial protocol. Next, we use the flight controller with Betaflight firmware to show how to set up the CRSF protocol.

The connection between the ELRS Nano receiver and the FC board is shown below.

Enable the corresponding UART (e.g. UART3 below) as a Serial Rx on Betaflight Configurator “Ports” tab.

On the “Configuration” tab, select “Serial-based receiver” on the “Receiver” panel, and select “CRSF” as the protocol. Telemetry is optional here and will reduce your stick update rate due to those transmit slots being used for telemetry.

Nano receiver could enter binding status by power on/off three times.

• Plugin and unplug nano receiver three times;
• Make sure the LED is doing a quick double blink, which indicates the receiver is in bind mode;
• Make sure the RF TX module or radio transmitter enter binding status, which sends out a binding pulse;
• If the receiver has a solid light, it’s bound.

Note: Binding once and the receiver will store the binding information. Re-power and the connect successfully auto.
