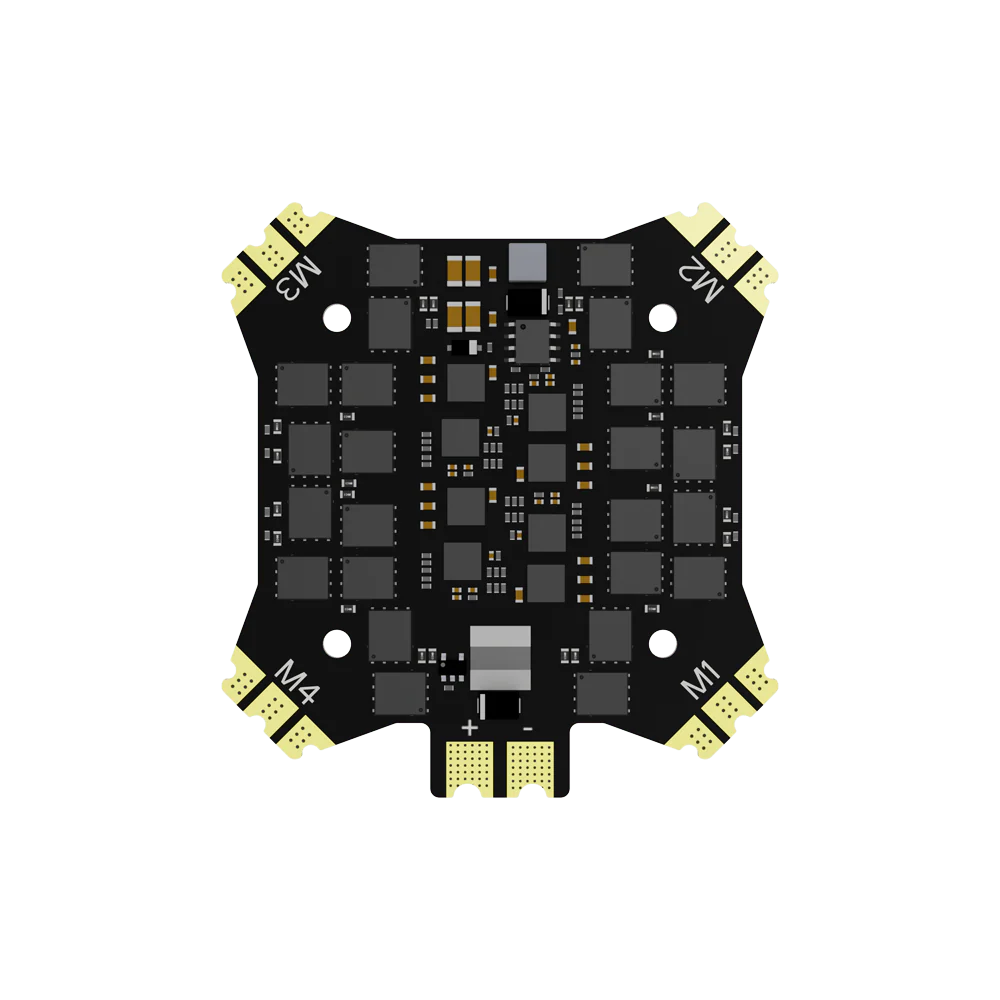

BLITZ E80 4-IN-1 Pro ESC

Exceptional MOSFET Durability

The BLITZ E80 power system is equipped with the high-performance PSMN1R0-40YLD MOSFET, designed to deliver unparalleled reliability under demanding conditions. Engineered to withstand a continuous current of up to 80A at a temperature of 25°C, this MOSFET ensures seamless operation even during prolonged high-power usage. Additionally, its exceptional maximum power dissipation capacity of 198W makes it an ideal choice for sophisticated power-intensive tasks, ensuring durability and efficiency within your projects.

Robust BEC Power Supply

Featuring a cutting-edge TI automotive-grade dedicated synchronous rectifier chip, the BEC power supply of the BLITZ E80 pushes boundaries. This advanced chip supports ultra-high voltage of up to 100V, safeguarding consistent performance and reliability. Whether you’re engaged in professional applications or high-level hobbyist projects, the BLITZ E80’s power system gives you the peace of mind of a dependable power source backed by engineering excellence.

Advanced PCB Circuit Technology

The BLITZ E80 takes circuitry to the next level with its use of 1-4 layer ultra-thick copper power boards, boasting a remarkable thickness of 4OZ. Such robust construction ensures continuous output during high-power operation, making it a practical solution for users who demand both performance and durability. This innovative design guarantees optimal heat dissipation and operational efficiency, critical for high-power applications.

Unmatched Processing Capability

At the heart of the BLITZ E80 lies the STM32F051 main control processor, which operates at a running frequency of up to 48MHz. By incorporating a three-in-one driver IC, this cutting-edge processor provides remarkable speed and precision. The result is a reliably fast and efficient performance, helping to unlock the full potential of your power setups. The seamless integration of these components ensures a smooth operation that meets the demands of modern technology-intensive tasks.

Highlights:

Rational layout, countersunk holes on extended solder pads to ensure PCB layer connection

G071 MCU, 48mHz maximum clock speed;

TDK MLCC Low ESR ceramic capacitors;

Top grade PSMN1R0-40YLD MOSFET;

8 layers double-sided PCB board

Specifications:

Product Name: BLITZ E80 4-IN-1 ESC

Input Voltage: 2-8S

Max. Continuous Current: 80A

Max. Burst Current: 100A

MCU: G071

BEC: No

Firmware: BLHeli32

Current Sensor: Yes

Telemetry: Supported

Target: IFLIGHT_BLITZ_G2

Mounting Dimensions: 35x35mm/Φ3mm

Dimensions: 35x42mm

Weight: 65g(±10)

Protocal: Supports DShot DShot150/300/600/MultiShot/ OneShot etc

Packing List:

1 x BLITZ E80 4-IN-1 Pro ESC (G2）

1 x Wiring set
