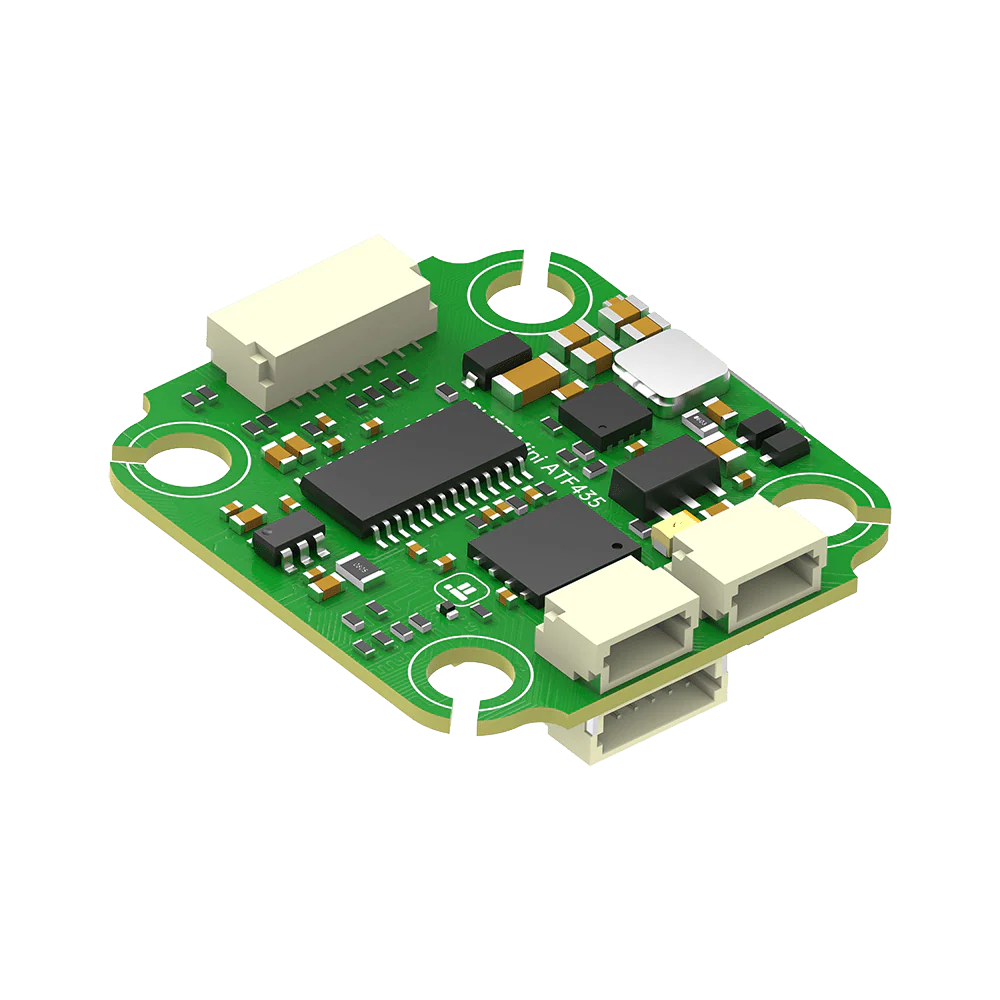

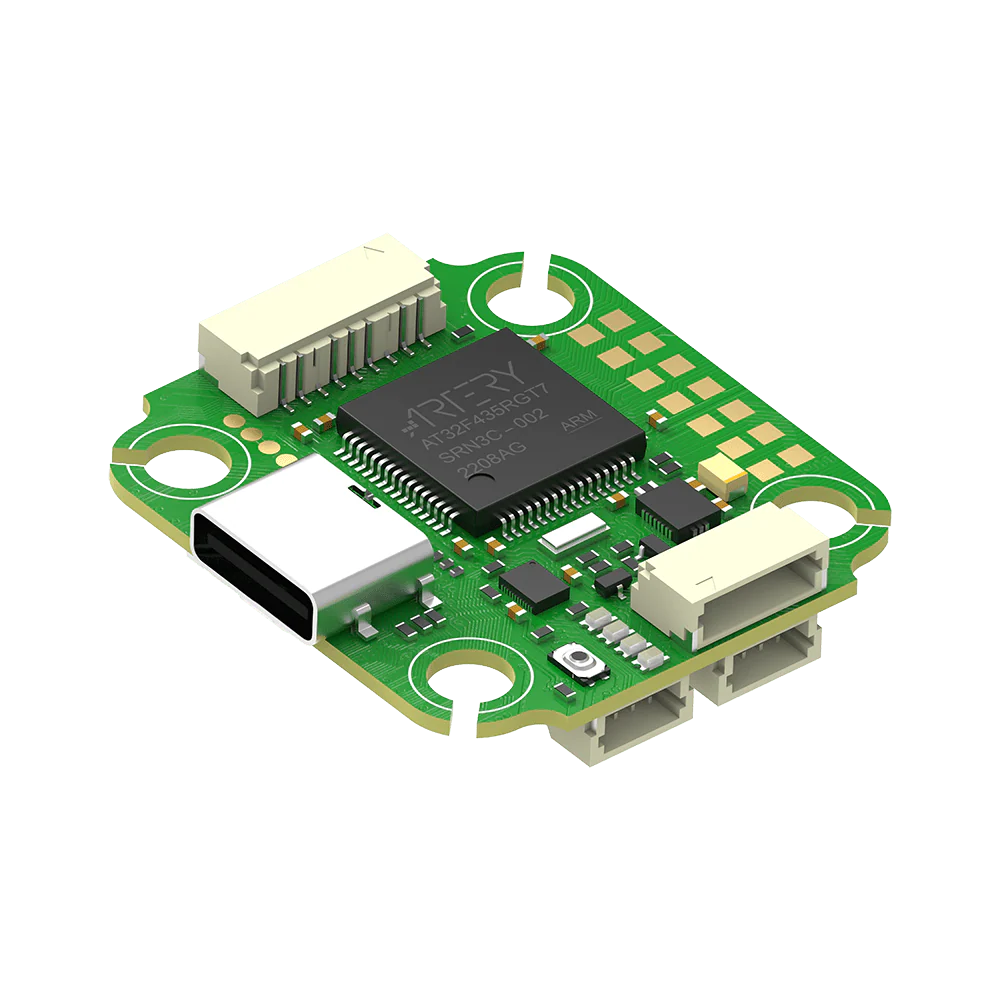

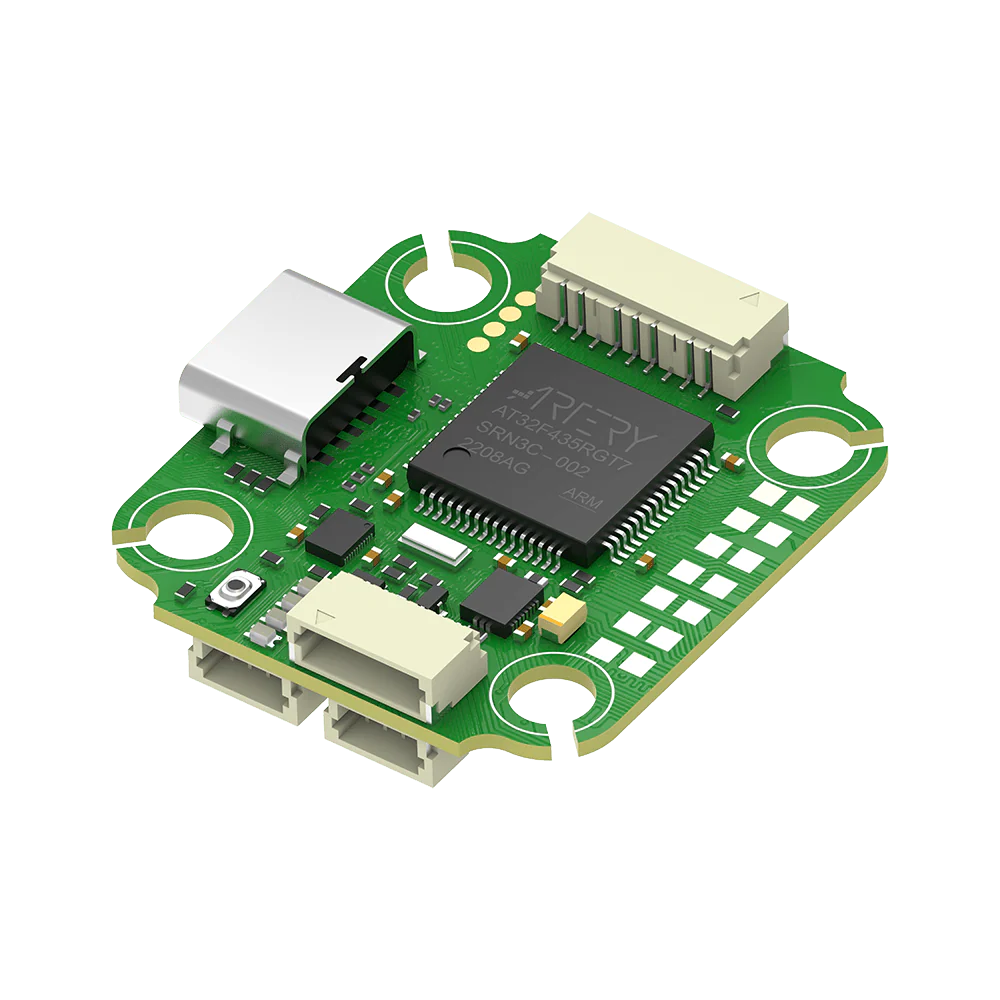

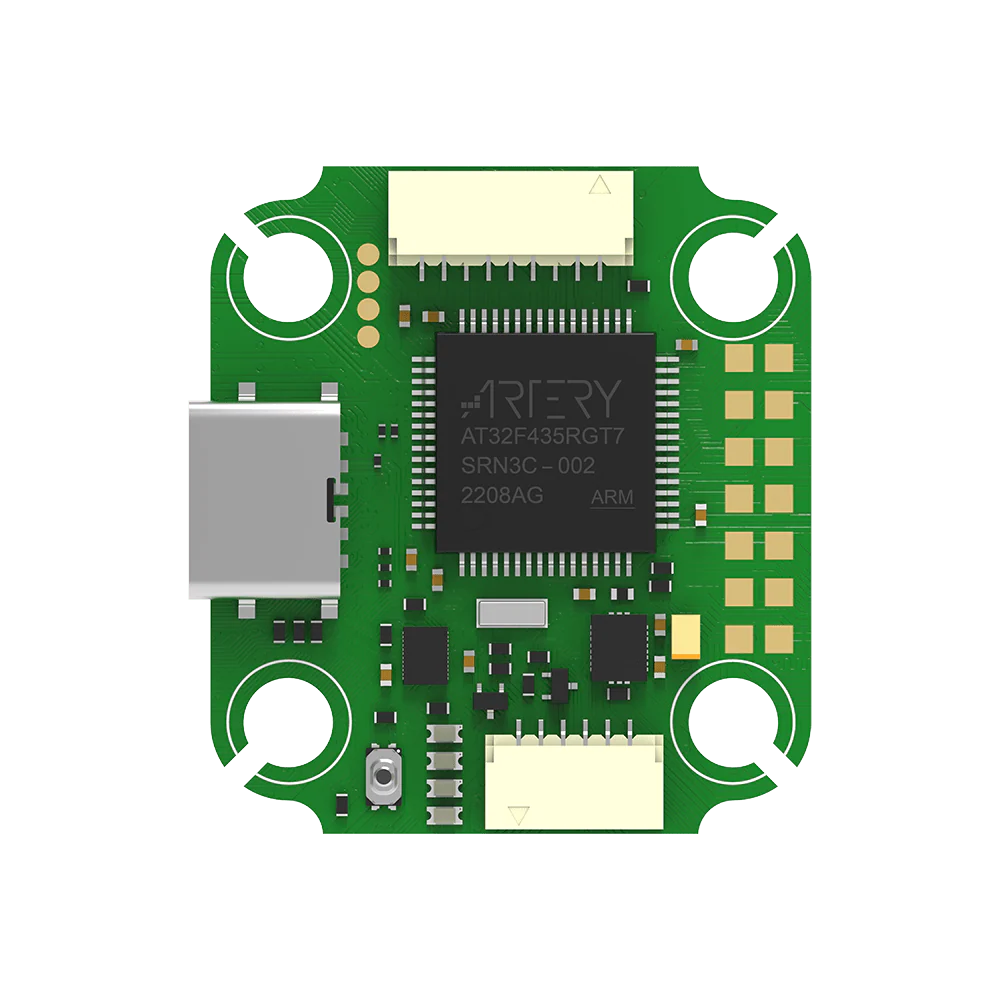

BLITZ Mini ATF435 Flight Controller

Outstanding Performance with Ultra-Fast ATF435 MCU

The BLITZ Flight Controller, designed exclusively for iFlight BNFs, sets a new standard in drone performance. Equipped with the state-of-the-art ATF435 MCU, this flight controller ensures lightning-speed processing and responsiveness, making it compatible with 2-6S batteries. Whether you’re a professional drone racer or hobbyist, the BLITZ Flight Controller enables precise control and ultra-fast functionality.

Seamless Integration with 20×20 Mounting Pattern

Engineered to fit effortlessly into your new frame, the BLITZ Flight Controller features a versatile 20×20 mounting pattern. This adaptable design makes installation quick and straightforward, leaving you more time to focus on your flights. Compatibility with diverse frame setups ensures that this device caters to every pilot’s unique needs, no matter the size or style of their drone.

Enhanced Circuit Design for Optimal Performance

Performance isn’t just about speed—it’s about reliability. With an improved circuit design and high-quality components, this flight controller minimizes electrical noise, ensuring consistent performance even under demanding conditions. The integrated LC filter further enhances signal quality, delivering stable and interference-free functionality.

DJI HD VTX Connector and Visual Debugging

The BLITZ Flight Controller is equipped with a DJI HD VTX connector that supports plug-and-play functionality, eliminating the need for complex soldering. For added convenience, FC indicator LEDs provide easy visual debugging, so you can identify and resolve issues quickly during setup and operation. These intuitive features make the BLITZ Flight Controller the perfect choice for both beginners and seasoned pilots.

A Perfect Match for Any Frame

Not only is the BLITZ Flight Controller the ideal complement to your iFlight BNFs, but its versatile design ensures it pairs seamlessly with most drone frames. Whether you’re upgrading your current setup or building a new drone, this flight controller delivers unmatched performance, reliability, and ease of use.

Specifications:

MCU: AT32F435RGT7

Gyro: BMI270

Barometer: DPS310

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435

Mount pattern: 20*20mm/φ4

Dimensions: 30.5*27mm

Weight: 5g

BEC: 5V 2.5A

Wiring Suggestion:

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

Packing List:

1 x BLITZ Mini ATF435 Flight Controller
