Description
Unleash Peak Performance for Your Quads
The next generation of ESCs from iFlight is here—created to elevate your quadcopter flight experience. Introducing the 55Amp BLHeli32 BLITZ Mini 4in1 ESC, the powerhouse designed to handle even the most demanding, amp-hungry motors. Engineered to endure extreme conditions and ensure optimal performance, this ESC is already being utilized in high-performance BNF quadcopters, including the renowned Nazgul F5/F6 Series. Whether you’re a seasoned pilot or just stepping into the FPV hobby, this ESC delivers unmatched control, reliability, and power that meet the needs of every enthusiast.
Innovative Design for Maximum Efficiency
The iFlight BLHeli32 BLITZ Mini 4in1 ESCs are built to empower your quad with unmatched precision and smooth operation. With a robust 55A capacity designed for 2-6S LiPo batteries, this ESC easily handles powerful motors without compromising its performance. The compact 20×20 mounting pattern ensures compatibility with your setups, making it an ideal choice for high-speed flying or maneuvering through the most challenging environments. Trust the BLHeli32 firmware to guarantee seamless and responsive throttle management, allowing you to focus on flying without interruptions.
Perfect Integration with the BLITZ Flight Controller Series
Designed as the ideal match for the BLITZ Flight Controller series, the BLHeli32 BLITZ Mini 4in1 ESC completes your quad setup with flawless synchronization and integration. Together, this pair delivers fine-tuned flight experiences that cater to all your flying needs—be it freestyle, cinematic shoots, or competitive racing. Built with durability and efficiency in mind, the ESC is ready to withstand the test of time and challenges posed by intensive flying sessions. Pair it with the BLITZ Flight Controller for unparalleled results, making it your go-to choice for quad builds.
Why Choose the iFlight BLHeli32 BLITZ Mini 4in1 ESC?
Searching for an ESC that delivers cutting-edge technology, superior performance, and assured reliability? The iFlight BLHeli32 BLITZ Mini 4in1 ESC is the solution you’ve been waiting for. Experience an ESC that is trusted by many FPV pilots in leading quadcopter designs with features such as:
– High current capacity: up to 55A
– Compatibility with 2-6S LiPo batteries
– Compact 20×20 mounting pattern
– Optimized for BLITZ Flight Controller series
– Exceptional reliability and motor response
Transform your quadcopter flying experience with the iFlight BLHeli32 BLITZ Mini 4in1 ESC—the next-generation ESC for modern FPV applications.
Specifications:

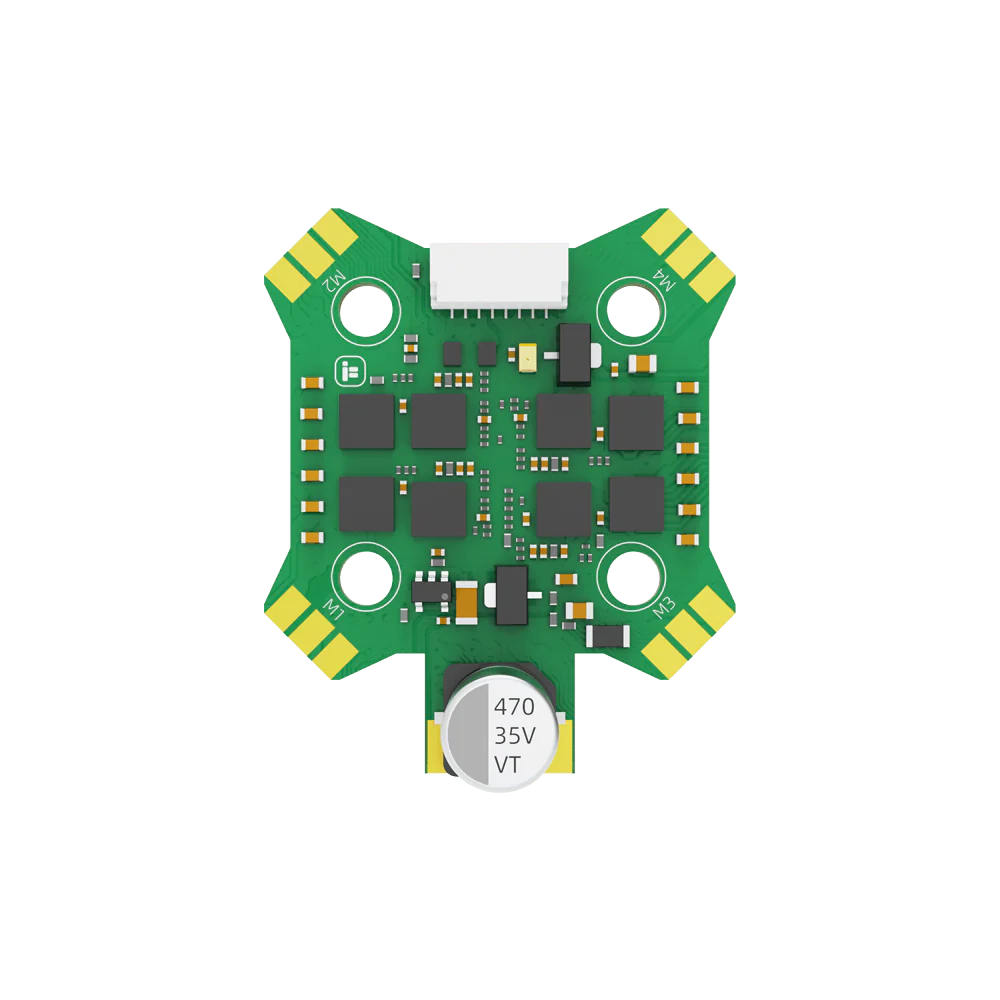

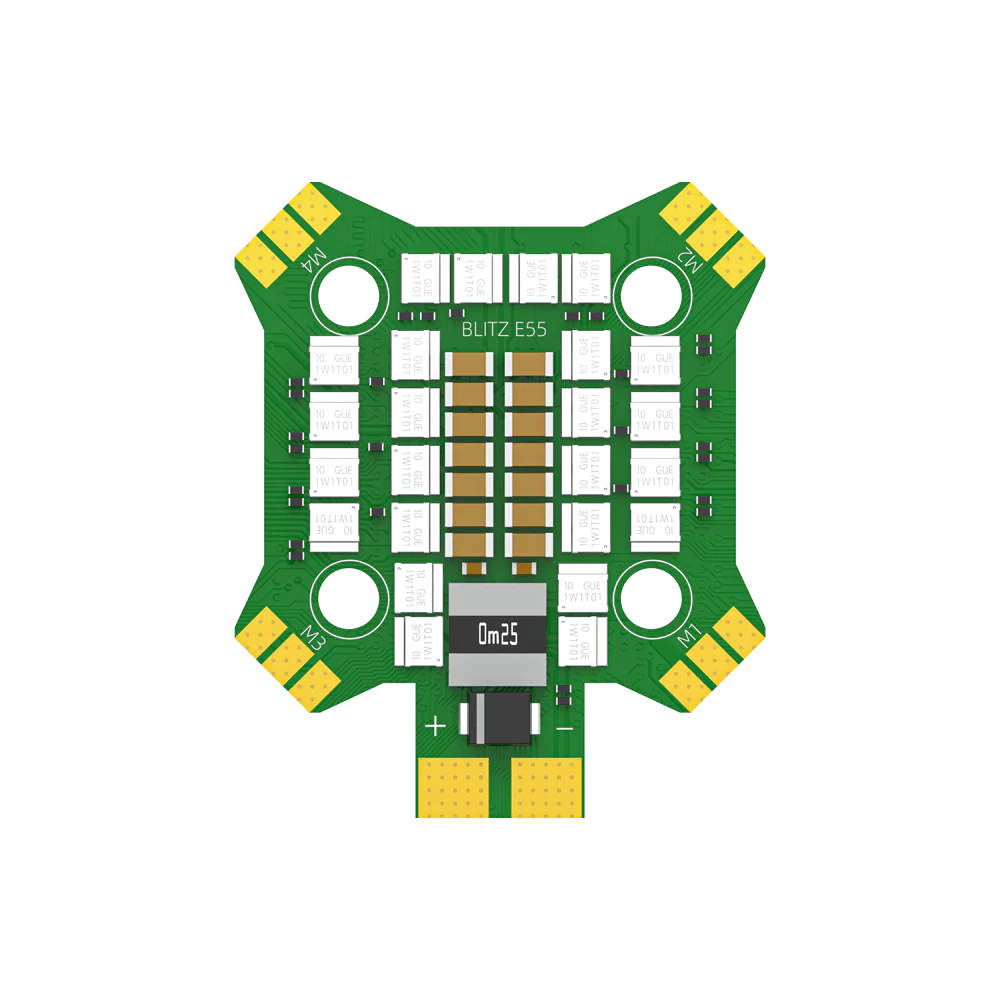

Product Name: BLITZ Mini E55 4-IN-1 ESC
Input Voltage: 2-6S
Max. Continuous Current: 55A
Max. Burst Current: 65A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G071_01 32.9
Mounting Dimensions: 20 x20 mm/Φ4mm
Dimensions: 35x42mm
Weight: 11.3g
Protocol: Supports DShot DShot150/300/600/MultiShot/ OneShot etc

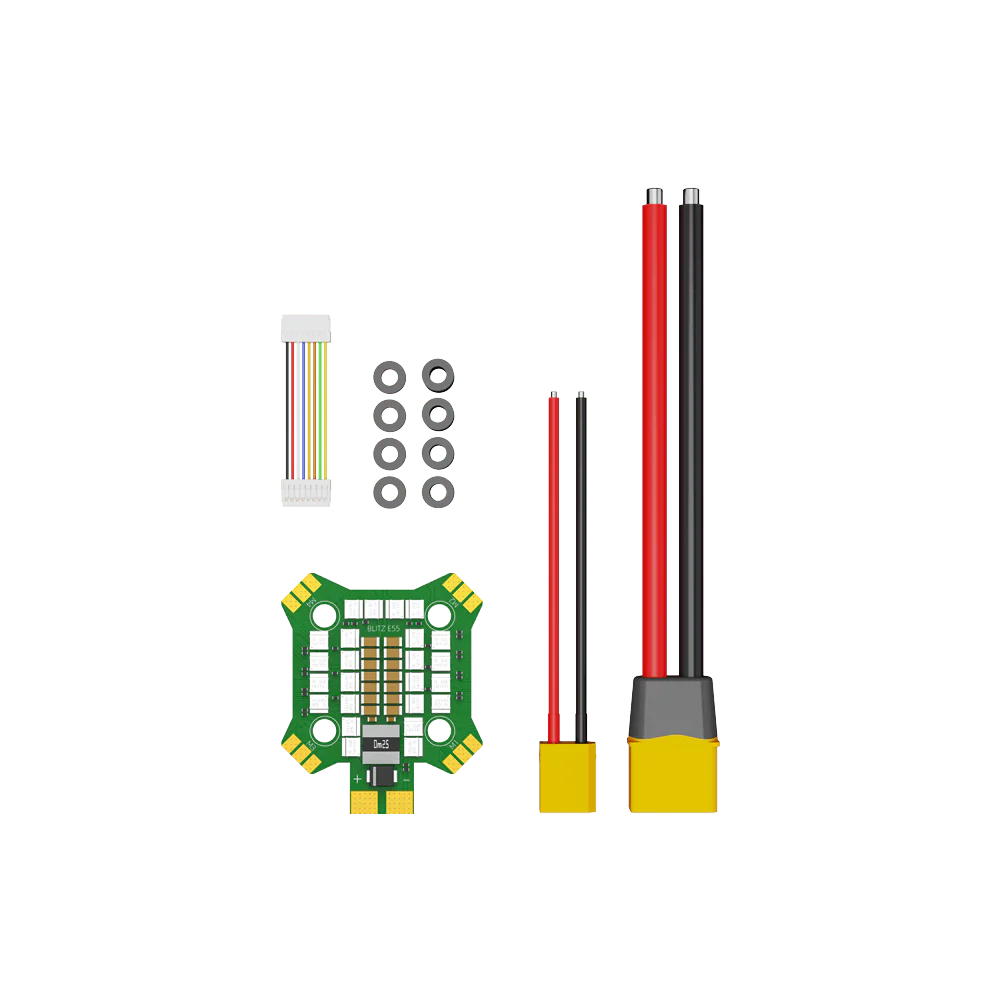

Packing List:
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires
