Description
Unmatched Performance for FPV Racing Enthusiasts

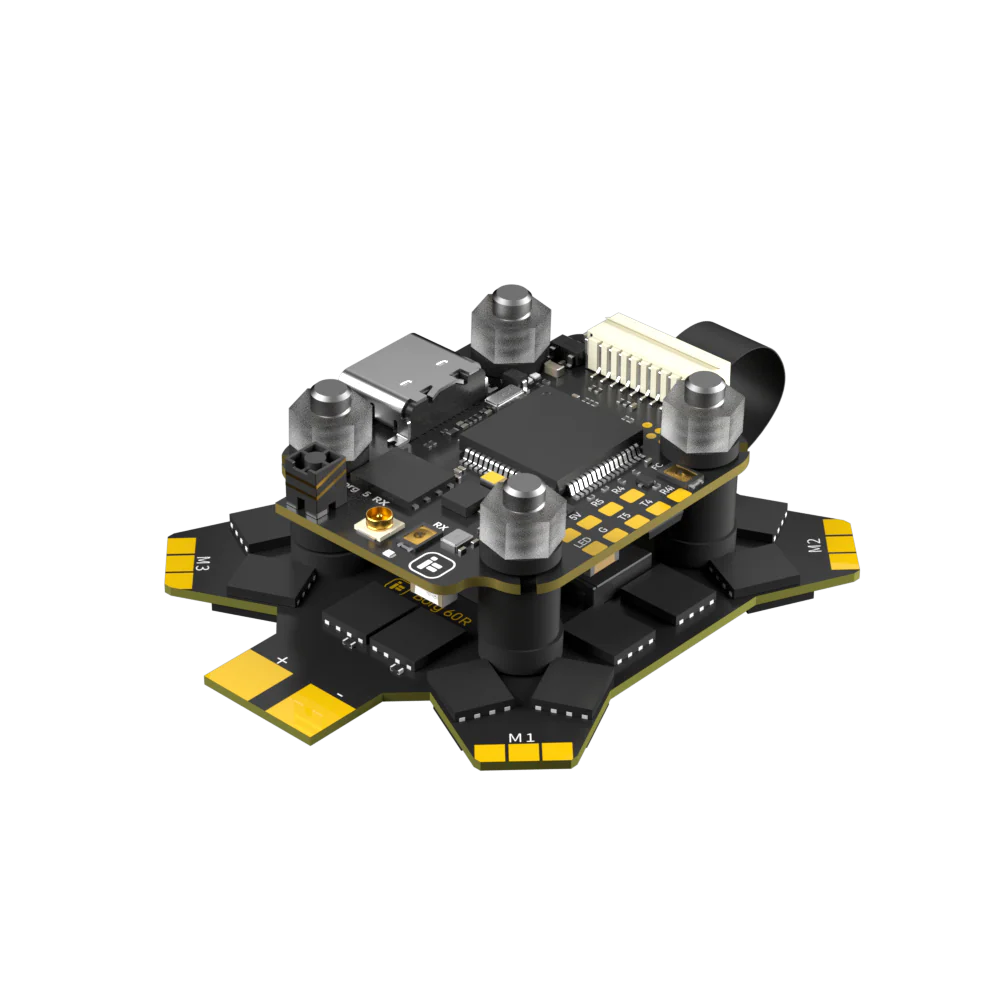

Introducing the Borg 5S RX FC Flight Controller, the ultimate solution designed to redefine FPV racing. Built with precision and performance, this advanced flight controller empowers you to reach new heights in your racing endeavors. Whether you’re competing or simply perfecting your skills, the Borg Series ensures a smooth, reliable, and exhilarating flight experience every step of the way. Built to provide seamless control, this flight controller is backed by cutting-edge technology to elevate your racing game.
Reliable Connection with Built-In ELRS 2.4GHz Receiver
The Borg 5S RX FC comes integrated with an ELRS 2.4GHz receiver, setting a high standard for connectivity during FPV races. Experience uninterrupted control thanks to the reliable, high-performance connection provided by the built-in receiver and antenna system. Whether you’re navigating tight corners or soaring through straightaways, this controller ensures stability and precision like no other. Take charge of your flight with confidence, knowing you have the technology to meet the demands of high-speed racing.
Flexibility to Customize Your Racing Setup
Every FPV racer has unique needs, and the Borg 5S RX FC Flight Controller is designed to accommodate them. With its ability to support external receivers, this controller offers unparalleled customization options to suit your individual preferences. Whether you’re upgrading components or tailoring your setup for a specific track, this flight controller delivers versatility that aligns with your racing style. The Borg Series puts customization at your fingertips, ensuring you stay in control while aiming for peak performance.

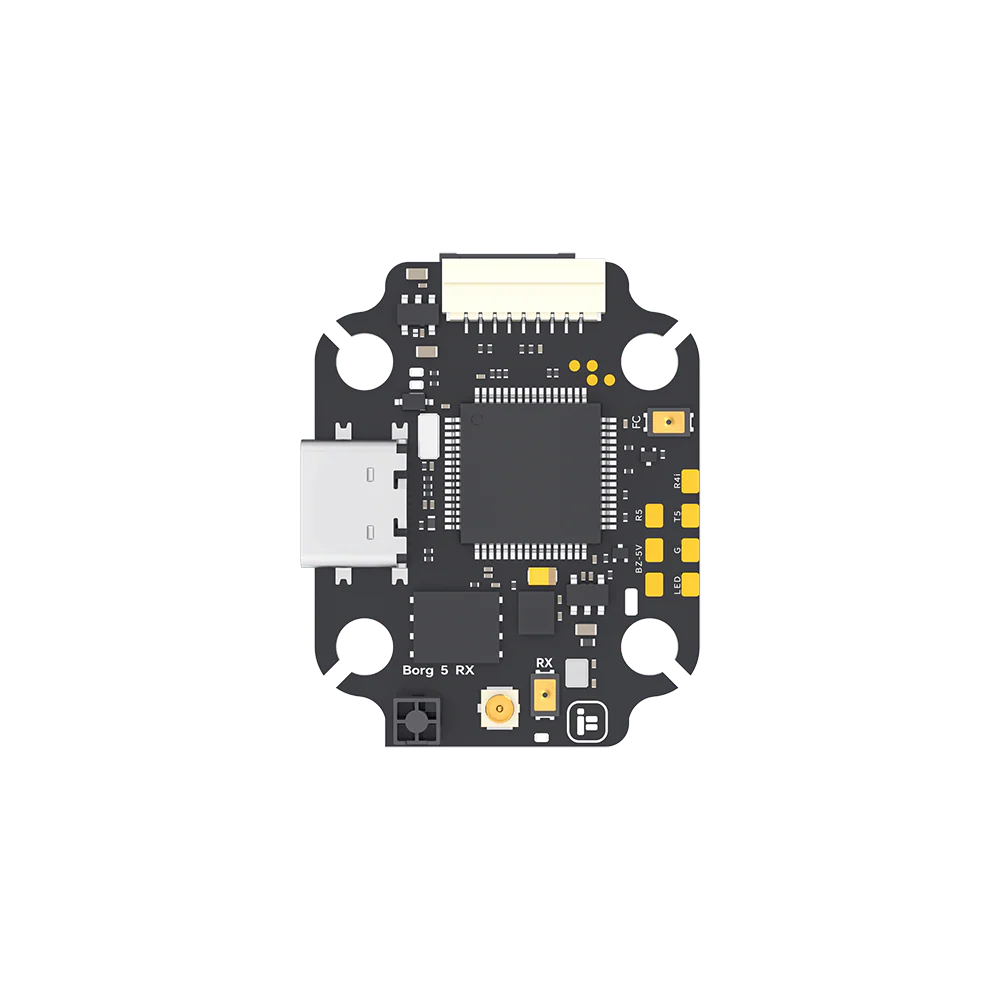

FC Features
Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.
Supports 4S to 8S battery inputs, offering versatility for various racing setups.
Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.
FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.
Input voltage: 4-8S; Support LIHV battery
MCU: AT32F435RGT7
Gyro: ICM42688
Barometer: N/A
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 4
Motor outputs: 4
I2C serial: Not supported
VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)
Mount pattern: 20*20φ4
Dimensions: 34*27mm±1
Weight: 6.8g±1
BEC: 5V 2.5A, 12V 2A (12V with VTX switch)
Wiring Suggestion
UART 1 for VTX HD / Analog
UART 2 for ESC Telemet
UART 4 for Built-in ELRS receiver/SBUS input
UART 5 for GPS or other sensors that require a serial port

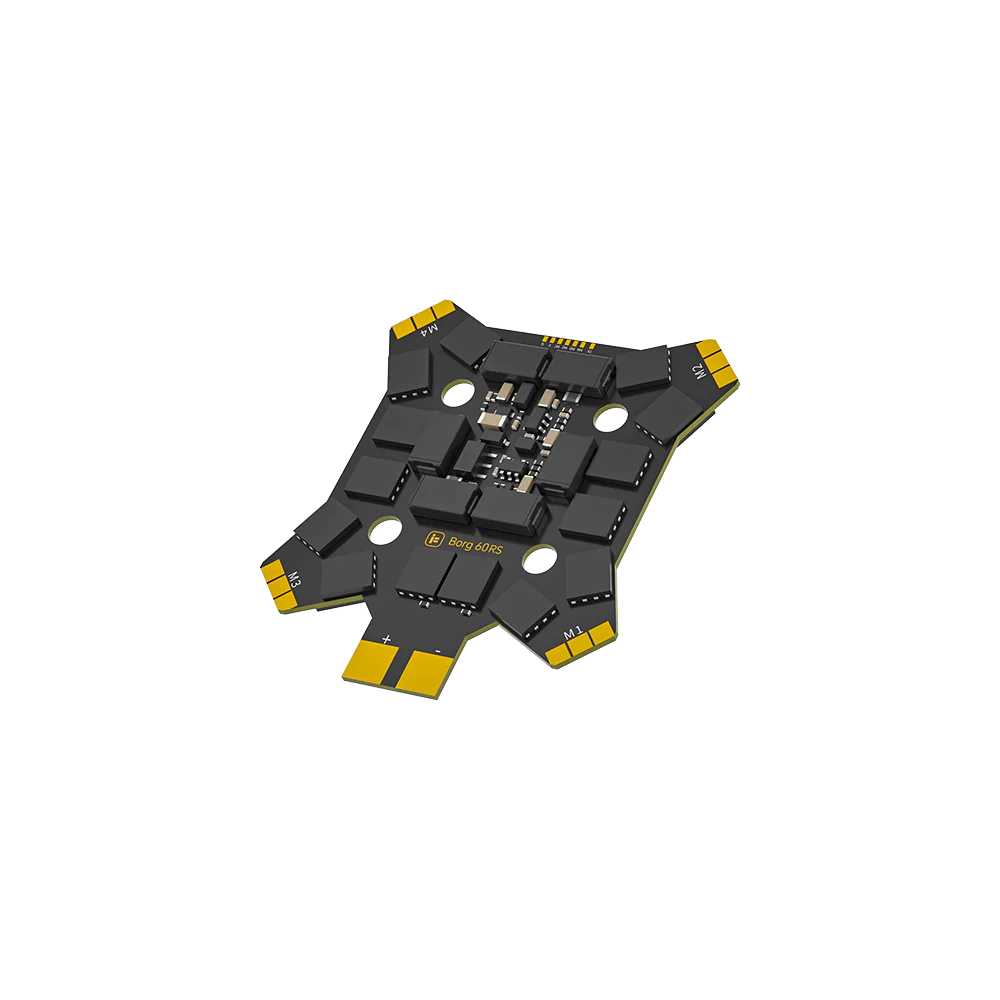

ESC Specifications
Product Name: Borg 60R ESC
Input Voltage: 3-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: N/A
BEC: N/A
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 45*52mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Weight: 14.5g±1
Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.
Packing List
1 x Borg 60R ESC
1 x Borg 5S RX Flight Controller
1 x Cable set
5 x silicon grommets
