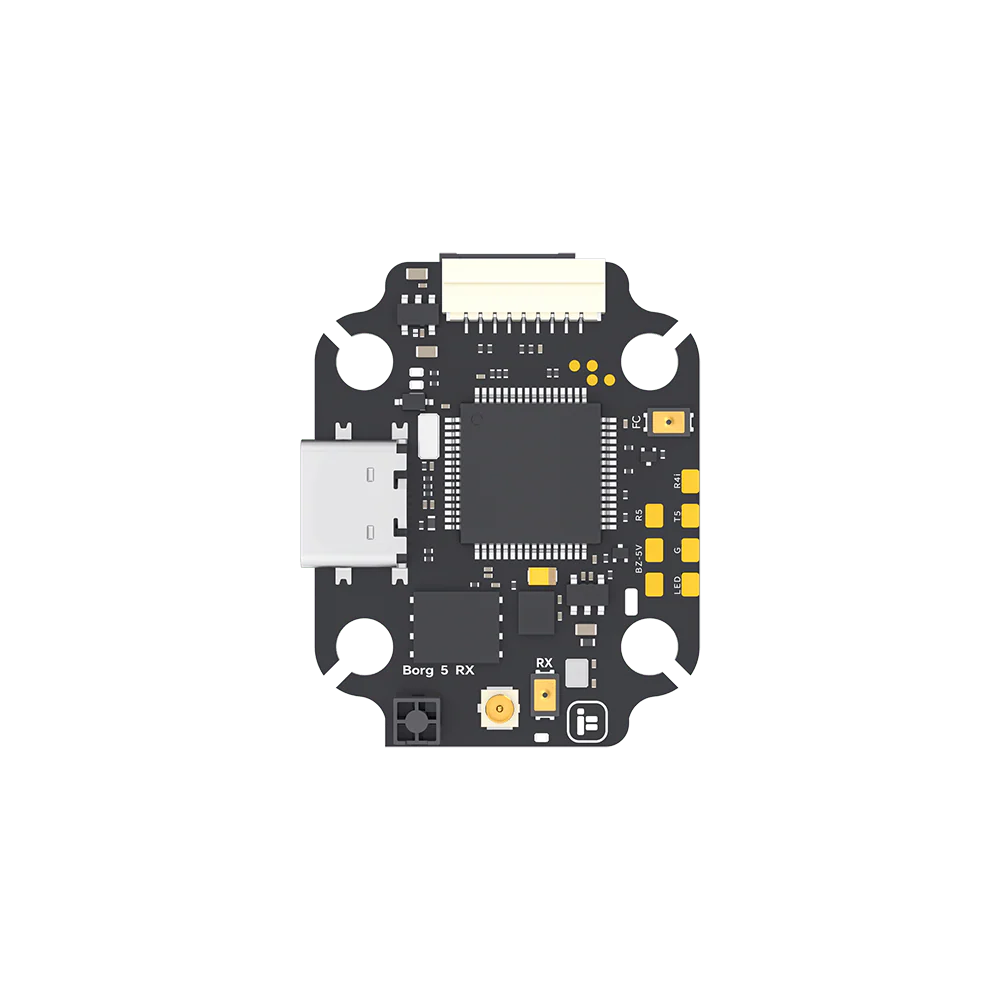

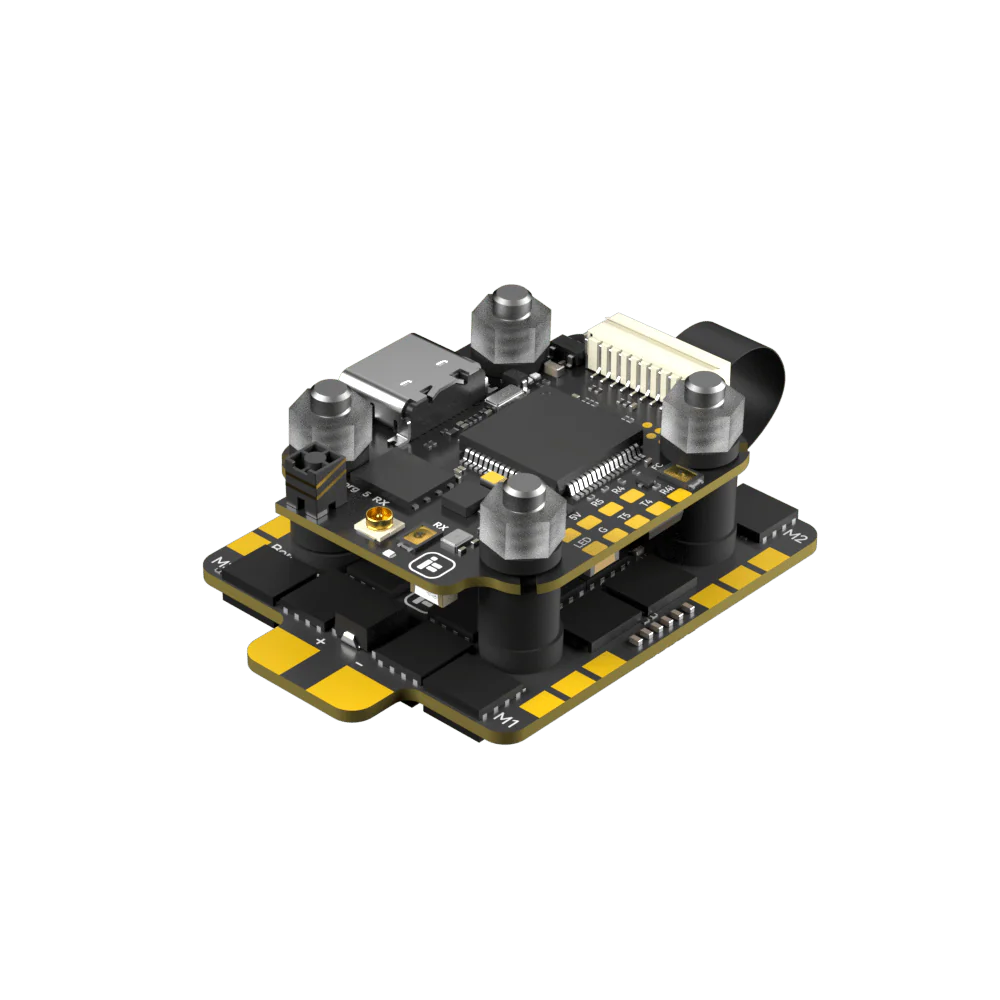

Borg 5S RX Stack (60RS 4-IN-1 ESC)

0 Reviews Write a review
Availability In Stock

112.80

Description

Unmatched Performance for Racing FPV Enthusiasts

Discover the ultimate solution to all your FPV racing needs with the Borg 5S RX FC Flight Controller – a perfect combination of power and precision. Engineered to elevate your racing experience, this next-generation flight controller is packed with innovative features to ensure smooth and reliable control. Whether you’re an experienced pilot or a newcomer looking to ace your FPV racing journey, the Borg Series delivers performance you can trust.

Built-in ELRS 2.4GHz Receiver and Integrated Antenna

At the heart of the Borg 5S RX FC lies its revolutionary built-in ELRS 2.4GHz receiver, paired seamlessly with an integrated antenna. This design ensures that your connection remains reliable and interruption-free during intense races, eliminating the hassles of signal drops. With the advanced ELRS system, you’ll experience quicker response rates and precision that puts you ahead of the competition. The integrated antenna enhances connectivity, creating a streamlined setup and reducing complexity.

Customizable and Versatile for Every Pilot

Designed with flexibility in mind, the Borg 5S RX FC Flight Controller is compatible with external receivers, providing the freedom to tailor your setup according to your unique preferences. Whether you wish to push the limits with custom configurations or prefer to stick to built-in convenience, this flight controller adapts to your needs with ease. This versatility ensures that no matter your racing style or requirements, the Borg 5S RX FC rises to the challenge.

When it comes to performance, reliability, and cutting-edge technology, the Borg Series stands out as a trusted ally in the FPV racing world. Experience unparalleled precision and control, and enjoy the ease of customization with this feature-packed controller. The Borg 5S RX FC Flight Controller isn’t just a tool; it’s your key to achieving your racing goals and surpassing expectations every time you take to the skies.

FC Features

Built-in ELRS 2.4GHz Receiver, while also being compatible with external antennas for enhanced flexibility.

Supports 3S to 8S battery inputs, offering versatility for various racing setups.

Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off.

FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces.



FC Specifications

Input voltage: 4-8S; Support LIHV battery

MCU: AT32F435RGT7

Gyro: ICM42688

Barometer: N/A

OSD Chip: AT7456E

Flash: 16MB (Blackbox flash)

UARTS: 4

Motor outputs: 4

I2C serial: Not supported

VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero

LED controller: Yes

Beeper pad: Yes

Firmware target: IFLIGHT_BLITZ_ATF435(Betaflight)

Mount pattern: 20*20φ4

Dimensions: 34*28.5mm±1

Weight: 6.8g±1

BEC: 5V 2.5A, 12V 2A (12V with VTX switch)



Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for ESC Telemet

UART 4 for Built-in ELRS receiver/SBUS input

UART 5 for GPS or other sensors that require a serial port

ESC Specifications

Product Name: Borg 60RS ESC

Input Voltage: 4-8S; Support LIHV battery

Max. Continuous Current: 60A

Max. Burst Current: 65A (10s)

MCU: STM32G071N

Driver: FD6288

Firmware: BL32 (32bit ESC)

Target: IFLIGHT_BLITZ_G3 32.9

Current Sensor: N/A

BEC: N/A

Telemetry: Supported

Bidirectional DSHOT: Supported

Dimensions: 45*35mm±1

Mounting Holes: 20 x20 mm/Φ4mm

Weight: 9.5g±1

Protocol: Supports DShot150/300/600、MultiShot、OneShot etc.



Packing List

1 x Borg 60RS ESC

1 x Borg 5S RX Flight Controller

1 x Cable set

4 x silicon grommets
