Description
Unmatched Voltage Protection for Enhanced Safety
The Borg Series ESCs redefine reliability in competitive racing with their innovative technology. Equipped with an integrated anti-spark circuit and a TVS transient voltage suppressor, these ESCs provide double-layered protection against harmful voltage spikes that can damage sensitive equipment. These advanced safety measures ensure that your racing performance is uninterrupted and secure, giving you peace of mind when it matters most.
Simplified Installation for Competitive Edge
Say goodbye to the hassle of external capacitors! The Borg Series ESCs boast high polymer capacitors that are specially designed to eliminate the need for additional external components in 5-inch racing models. This innovative feature not only simplifies the installation process but also reduces the overall weight of your setup, giving you the competitive edge in speed and agility without sacrificing reliability.
Performance Turbocharged for Demanding Racers
Built with precision and cutting-edge technology, the Borg Series ESCs are tailor-made for competitive racers seeking superior performance and reliability. Whether you’re competing on the professional stage or testing your skills locally, these ESCs deliver consistent results under extreme conditions. The enhanced technology not only boosts dependability but ensures an optimized experience every time you power up your racing model.
Experience the future of racing with the all-new Borg Series ESCs – where power meets precision for the ultimate competitive advantage!
Features
Supports 3-8S Battery Input for versatile power options.
6-Layer 3OZ PCB allows for continuous current handling of 60A, with a peak current of 65A.
Integrated Anti-Spark Circuit protects your equipment from voltage spikes.
Built-in High Polymer Capacitors eliminate the need for external capacitors in racing models.
FPC Ribbon Cable Connection ensures a more reliable link between the flight controller and ESC.
Specifications

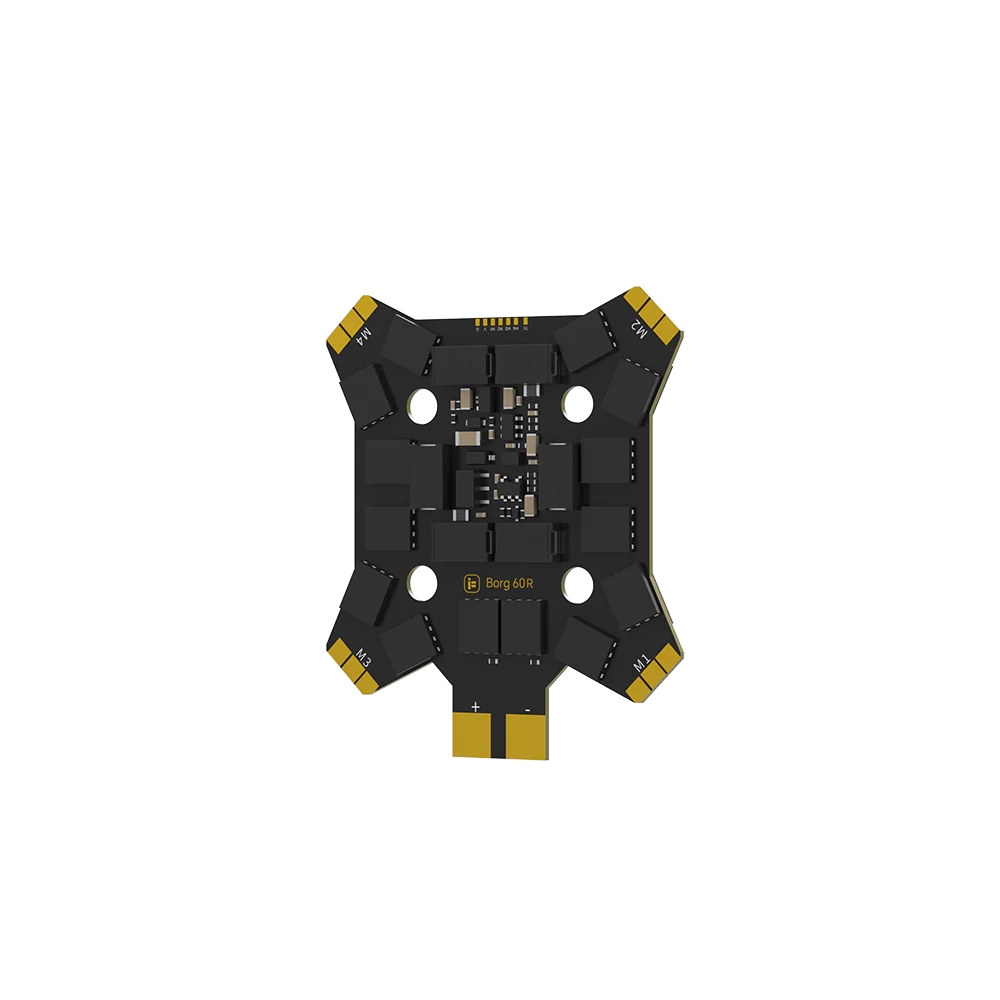

Product Name: Borg 60R ESC
Input Voltage: 3-8S; Support LIHV battery
Max. Continuous Current: 60A
Max. Burst Current: 65A (10s)
MCU: STM32G071N
Driver: FD6288
Firmware: BL32 (32bit ESC)
Target: IFLIGHT_BLITZ_G3 32.9
Current Sensor: No
BEC: No
Telemetry: Supported
Bidirectional DSHOT: Supported
Dimensions: 45*52mm±1
Mounting Holes: 20 x20 mm/Φ4mm
Weight: 14.5g±1
Protocol: Supports DShot150/300/600, MultiShot, OneShot, etc.
Packing List
1 x Borg 60R ESC
1 x Cables set
4 x silicon grommets
