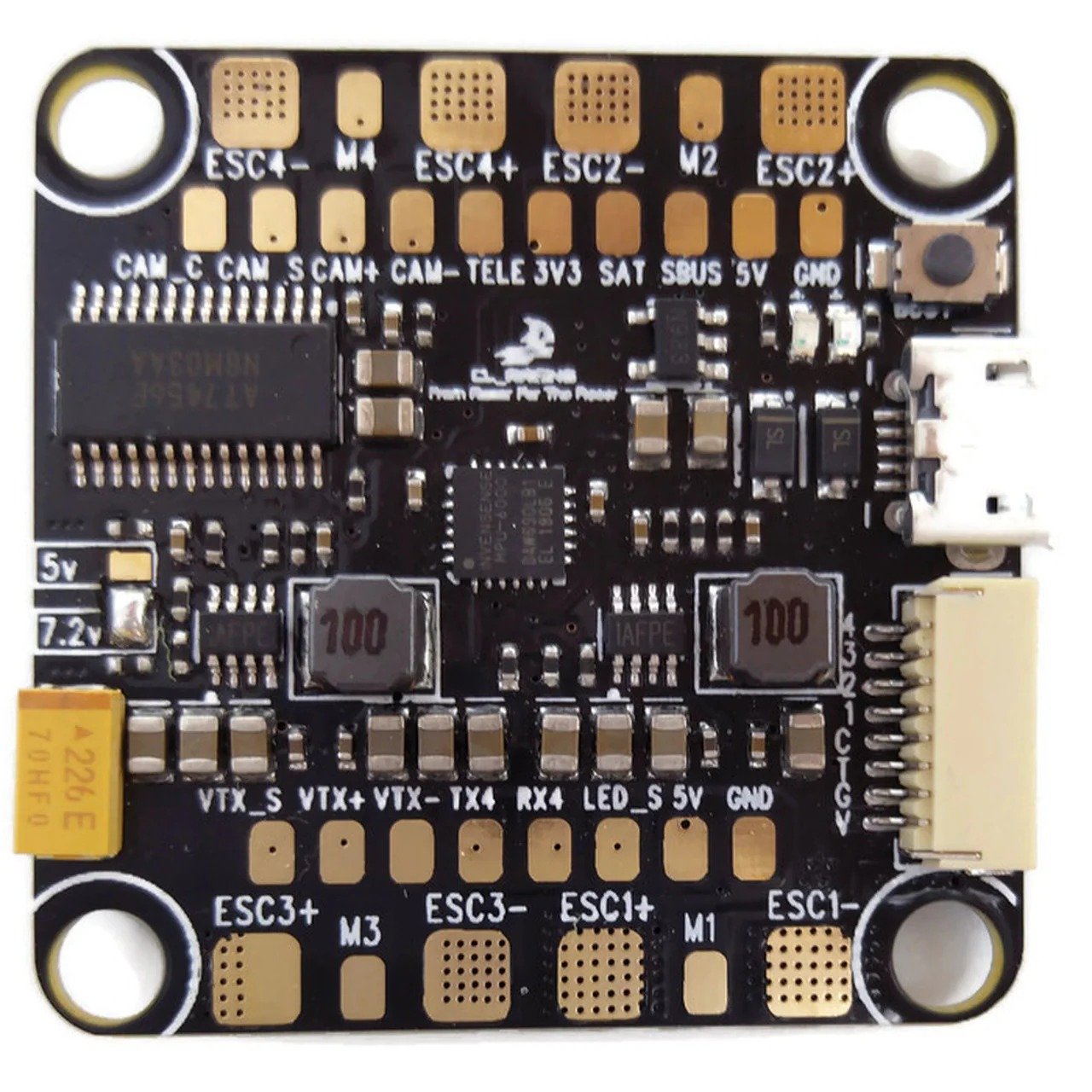

CL Racing F4S Flight Controller PDB OSD AIO V1.6 – 30x30mm

Advanced Design for Maximum Compatibility

This flight control board is designed to fully embrace and optimize all the features offered by Betaflight, the leading open-source flight controller software. What sets this product apart is its forward-thinking design, ensuring functionality not just for the current version but also for upcoming updates, such as Betaflight 3.2. By investing in this FC, you’re equipping yourself with technology that stays ahead of the curve. While all features are operational, the buzzer functionality will be enabled upon the release of Betaflight 3.2, making this board future-ready for any advanced settings you plan to integrate.

Built to Meet Custom Quad Builders’ Needs

Inspired by the passion for custom quad builds, this flight controller offers precisely what drone enthusiasts need the most: reliability and performance. Unlike other flight controllers with inflated pricing strategies, this board comes with a remarkably low price point. Armattan is driven by the vision of providing high-quality components essential for custom builds without the pressure of commercialization. The board offers durable construction, essential features, and programming capabilities, making it a solid foundation for your next quadcopter build.

Convenient Features and Transparent Overview

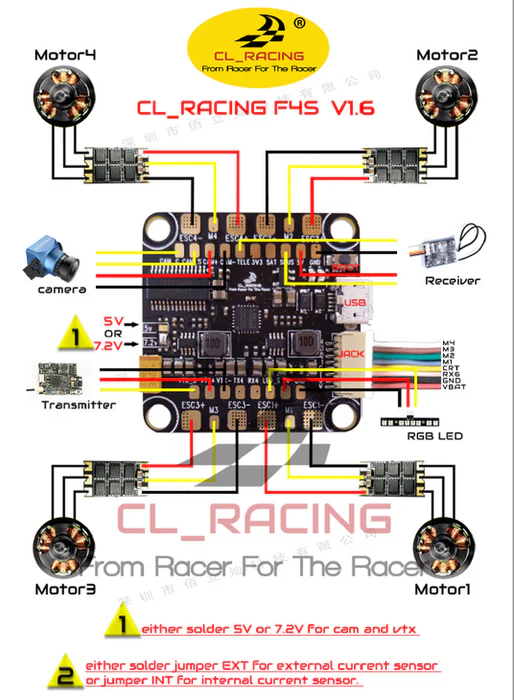

The programmable micro buzzer is a highlight feature that improves user experience, allowing customizable alerts that enhance drone handling. To make assembly easier, we provide a comprehensive wiring diagram and detailed specifications, empowering you to confidently integrate this FC board into your drone. Be sure to check out the video for a complete walkthrough and demonstration of the board’s capabilities. Whether you’re troubleshooting or optimizing, this board delivers the tools you need to make drone building as smooth as possible.

Choose this flight control board for its high performance, anticipated Betaflight 3.2 compatibility, and affordability. Elevate your quad builds with a solid, dependable FC tailored for builders who prioritize quality and efficiency without compromising on value.

New features:

• Build in 5V BEC 2A
• Build-in User selectable 7.2v or 5v 2A Filtered BEC For camera and VTX
• Dedicated hardware inverted connect to  UART3 for smartport telemetry
• 6 layer 2oz Copper PCB
• Dedicated Camera setting control pads along with camera power signal pads
• 4 in 1 esc socket with external current sensor input
• Added TX1 and TX6 pads
• Support External Current sensor from 4 in 1 ESC.

Specifications

• LiPo Input: 2-6S (5V-30V)
• Power rail: 3.3v,5v,72v,vbat
• 132A ( MAX display ) Current sensor with 160A PDB build in
• 6 layer 2oz Copper PCB
• Size: 36x36mm
• Mount Holes: 30.5 x 30.5 mm
• CPU – STM32F405RGT6 (F4 chip)
• MPU-6000
• Full SD Card socket
• Build in 5V BEC 2A
• Build-in User selectable 9v or 5v 2A Filtered BEC For camera and VTX
• Dedicated Camera setting control pads along with camera power signal pads
• Dedicated VTX connection with along with TX4 for easy connect and control VTX
• Build in Betaflight OSD
• 4 UARTS + USB (UART1 , UART3 ,UART4, UART6 ) (Pinout TX1, TX4,RX4, TX6,RX6 )
• 5V LED strip output
• 4 motors on each corner for a better layout.
• Support RX : Dedicated Sbus hardware inverted ,Satellite RX, Ibus,TBS Crossfire
• Dedicated hardware inverted connect to UART3 for smartport telemetry
• 4 in 1 esc socket with external current sensor input
• Support TP and Smartaudio VTX
• Buzzer pads for external buzzer

Includes

• 1x Armattan CL_Racing_F4S
