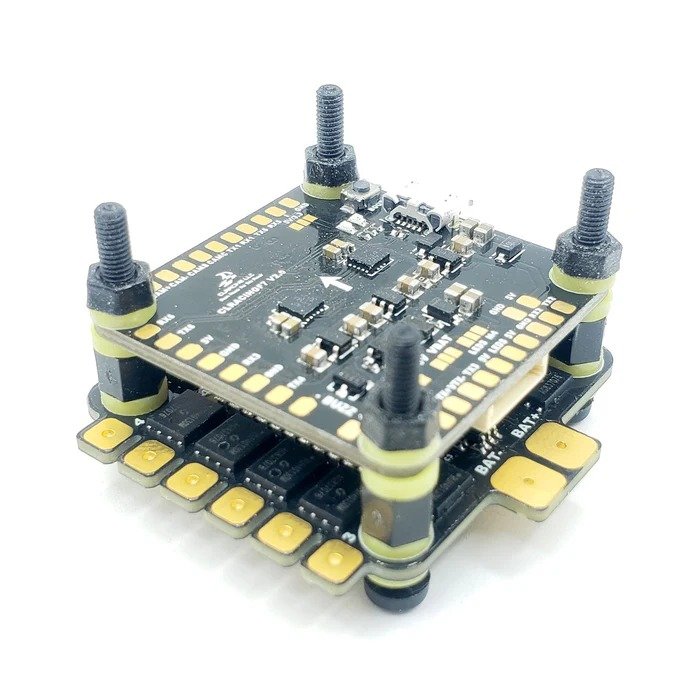

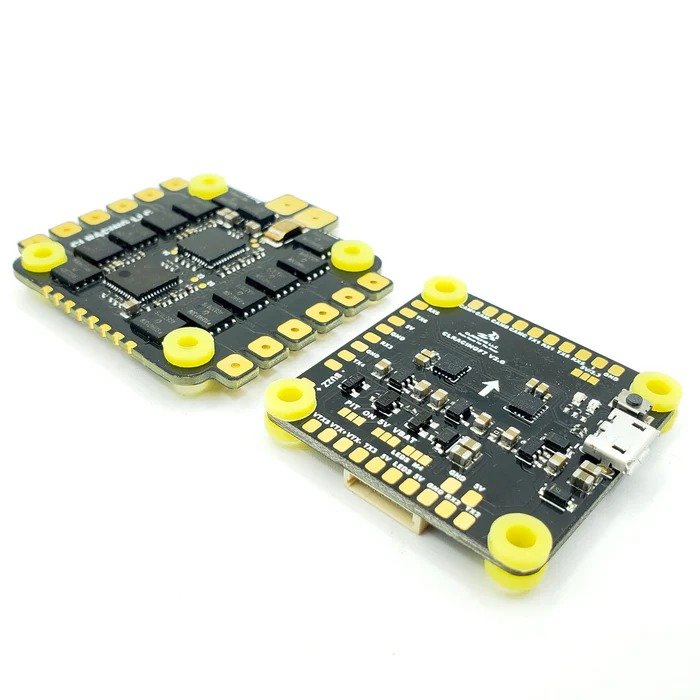

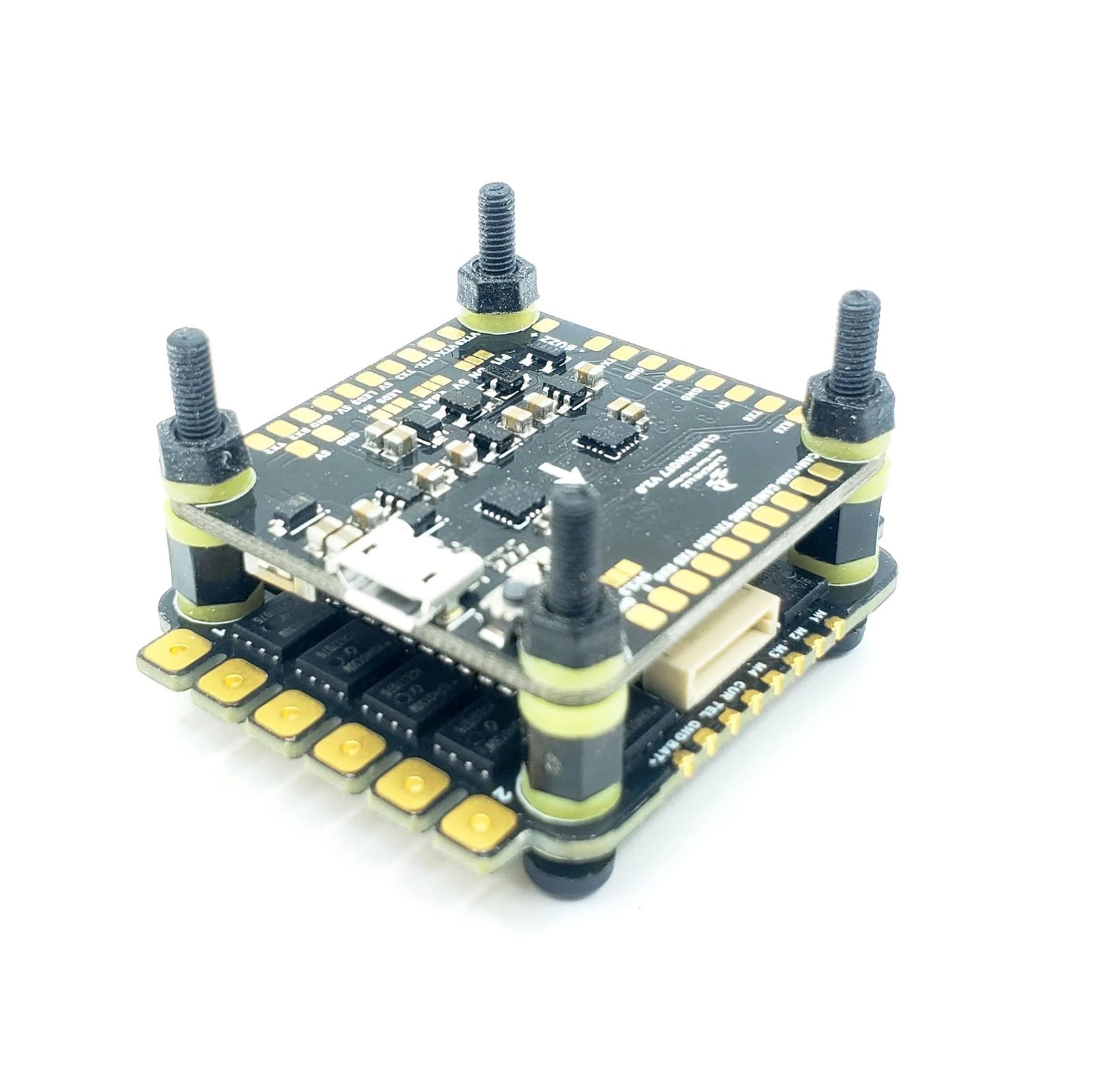

Experience Performance with CLRACINGF7 V2ESC Combo
The CLRACINGF7 V2ESC Combo is designed for racers who demand precision, reliability, and peak performance. Whether you’re competing or simply enjoying high-speed flights, this stack delivers state-of-the-art features tailored for your racing needs. Its compact design ensures streamlined setup while offering maximum functionality without compromising stability or power.
Enhanced Features for Unmatched Racing
Equipped with cutting-edge technology, the CLRACINGF7 V2ESC Combo brings unparalleled advancements to the table. The F7 flight controller ensures lightning-fast responses and smooth control during even the most challenging races. The integrated ESC (Electronic Speed Controller) is engineered to provide consistent power output, supporting high-speed maneuvers and sharp turns effortlessly. With its efficient performance, optimizing your racing drone has never been easier.
A Durable and Reliable System
Durability meets innovation with the CLRACINGF7 V2ESC Combo. Crafted with high-quality materials and tested under rigorous conditions, this stack is built to withstand the demands of competitive racing. Its advanced board design also minimizes electrical interference, ensuring stable communication between components. Whether you’re flying through complicated courses or pushing the limits, this system guarantees resilience and reliability.
Why Choose CLRACINGF7 V2ESC Combo?
Perfectly built for racers, the CLRACINGF7 V2ESC Combo offers seamless integration, exceptional performance, and easy configuration. With a user-friendly interface and robust design, it ensures that both professional and amateur racers can elevate their drone experience. Choose CLRACINGF7 V2ESC Combo for a reliable and efficient stack designed with racers in mind.
Main FC Features
- 1. MCU: STM32F722RET6 216MHz
- 2. DUAL 6-Axis ICM20602 Separated Interrupts
- 3. Build in Beta flight OSD
- 4. Up to 8S(36V) direct battery power
- 5. Build in Voltage monitoring resistor
- 6. Build in 5V/3A BEC and 3.3V/250mA for system
- 7. Led strip share 5V with 5V/3.0A BEC
- 8. 5V OR VBAT, camera and VTX POWER VIA Pit Switch
- 9. 6 Full UARTS: UART1, UART2, UART3, UART4, UART5, UART6
- 10. Build in Camera Control pin with necessary resistor and capacitor near camera connection
- 11. Buzzer pads for external buzzer
- 12. VBAT Polarity protection
- 13. Build in 32MB Blackbox flash chip
- 14. M4 Can be selected either led strip signal or M4 signal for RPM filtering

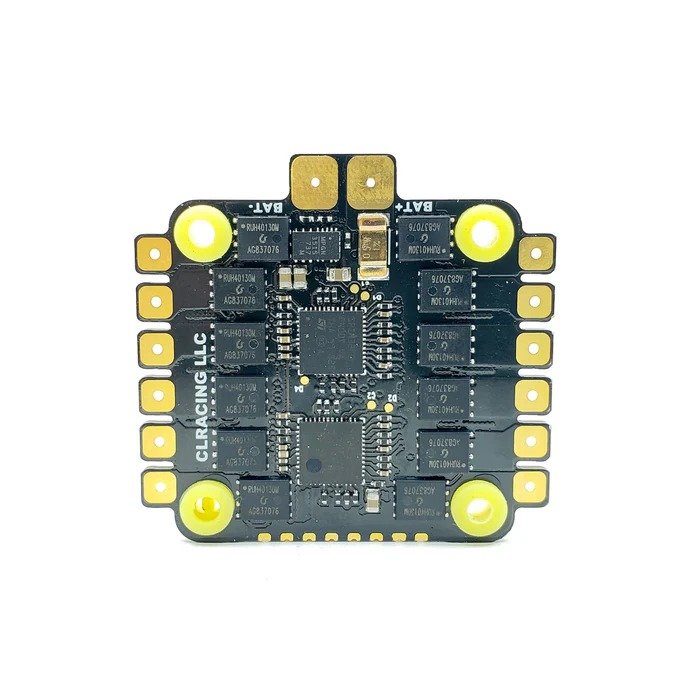

Main ESC Features
- LIPO: 2-6S LIPO
- Weight:13.5g
- Firmware: Blheli_32
- Size : 43.5mm x 46.5mm
- Mounting : 30.5mm x 30.5mm / ID 4mm
- Con.Current:45A, Peak 55A @10s
- Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
- Connection: PNP with CLRACING F7 FC, with JST1.0 8 pin connector or soldering pads
- Current scale: 250
Includes:
- 1 x CLRACING F7 DUAL V2.2 ESC COMBO The stack for RACERS – 30x30mm
- 10 x M3*5mm nylon thread through spacers
- 5 x M3*25mm nylon screws
- 5 x M3 nylon nuts
- 5 x Yellow Grummits
- 2 x 14 AWG 80mm Silicone wires
- 1 x connection cable
- 1 x Amass XT60
- 1 x Rubycon 1000uf 35v ZLH capacitor
