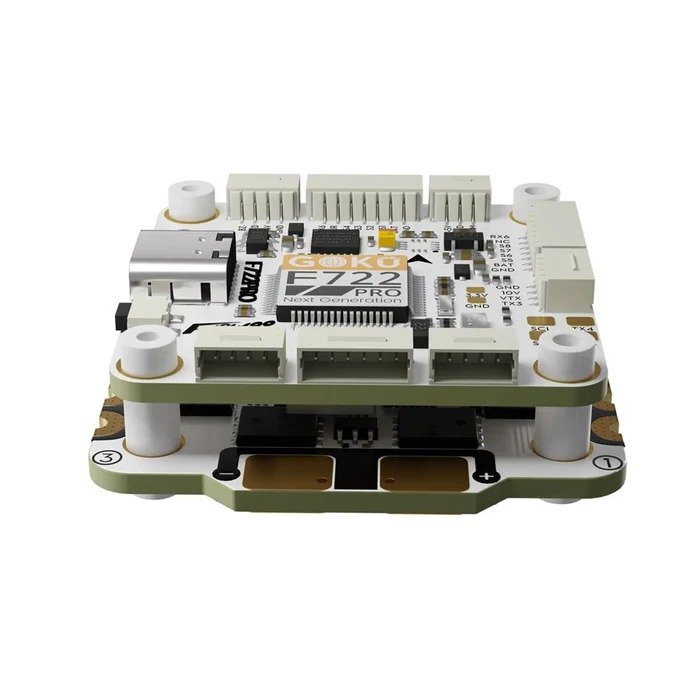

Flywoo Goku F722 Pro V2 Stack with F722 Flight Controller and 55A AM32 128K 4in1 ESc – 30x30mm

High-Performance Flight Controller for Your Drone Builds

The FLYWOO F722 PRO V2 flight controller brings a new standard to drone building with its upgraded AM32 firmware, replacing the discontinued BLHeli32 version. Engineered for superior functionality, this flight controller boasts a robust STM32 F722 main control unit paired with the advanced ICM42688 gyroscope, ensuring optimal performance for demanding flight conditions. With a universal 30.5mm size, this cutting-edge device is designed to suit a wide range of drone builds, making it a versatile addition to your drone tech arsenal.

Enhanced Connectivity and Installation Efficiency

Setting a new precedent in ease of use, the FLYWOO F722 PRO V2 offers a user-friendly socket design for all ports. This innovative feature significantly reduces the complexity of device connections, streamlining installation procedures and cutting down on maintenance time. Whether you’re inspecting faults or replacing components, this flight controller is equipped to make the process as simple and efficient as possible. Additionally, the dual 4-in-1 ESC sockets and support for 8 motor outputs provide unrivaled flexibility for more complex setups, catering to both hobbyists and experienced pilots alike.

Flexibility and Seamless Integration

With the F722 PRO V2, build customization is taken to the next level. Although the socket design simplifies connectivity, every solder pad is also retained, giving you the choice to opt for traditional wiring methods if preferred. This versatile design accommodates diverse user preferences, enabling you to create a build that suits your specific needs. Furthermore, DJI enthusiasts will appreciate the plug-and-play compatibility with the DJI O3 Air Unit, delivering seamless integration and unlocking the full potential of DJI’s advanced digital transmission system. Whether you’re assembling the drone of your dreams or upgrading existing builds, this flight controller removes barriers and empowers pilots to focus on their creativity.

Features:

• High-performance processor: Equipped with the STM32F722 high-performance processor with a processing speed of up to 216MHz for faster response.
• Precision gyroscope: Features the ICM42688 gyroscope for improved control precision and enhanced flight stability.
• Modular installation: Utilizes snap-lock sockets for plug-and-play functionality without the need for soldering, enabling modular installation, and includes reserved solder pads.
• Large-capacity black box: Includes a 16MB large-capacity black box to ensure sufficient storage of flight data for later analysis.
• Stable current output: Onboard 10V/2A and 5V/2A BEC to provide stable current output for VTX and various peripherals.
• Multiple motor outputs: Supports 8 motor outputs and reserves dual 4-in-1 ESC sockets for simplified connections.
• Durable design: Utilizes immersion gold PCB manufacturing process to ensure high-temperature and high-current resistance, guaranteeing stable operation.

Specifications:

• GOKU F722 PRO V2 Flight Controller
  • BF Flight Controller Firmware: FLYWOO F722PRO
  • INAV Firmware: FLYWOO F722PRO
  • MCU: STM32F722
  • Gyroscope: ICM42688
  • OSD: AT7456E
  • Barometer: DP310
  • Black Box: 16MB
  • UARTS: 1/2/3/4/5/6
  • Input Voltage: 7.4V-26V/2-6S LiPo
  • BEC: 10V2A/5V2A
  • Flight Controller Size: 37mm x 37mm x 8mm
  • Mounting Holes: M3 30.5×30.5mm
  • Weight: 9.9g



• GOKU G55M BL32 4in1 ESC
  • Support AM32
  • Support Dshot300, Dshot600,Dshot1200
  • PWM frequency: 24k-128k
  • Input Voltage: 3-6S Lipo
  • Continuous Current: 55A
  • Firmware: BL32 ： GOKU_F4A32_PRO
  • Weight: 15g

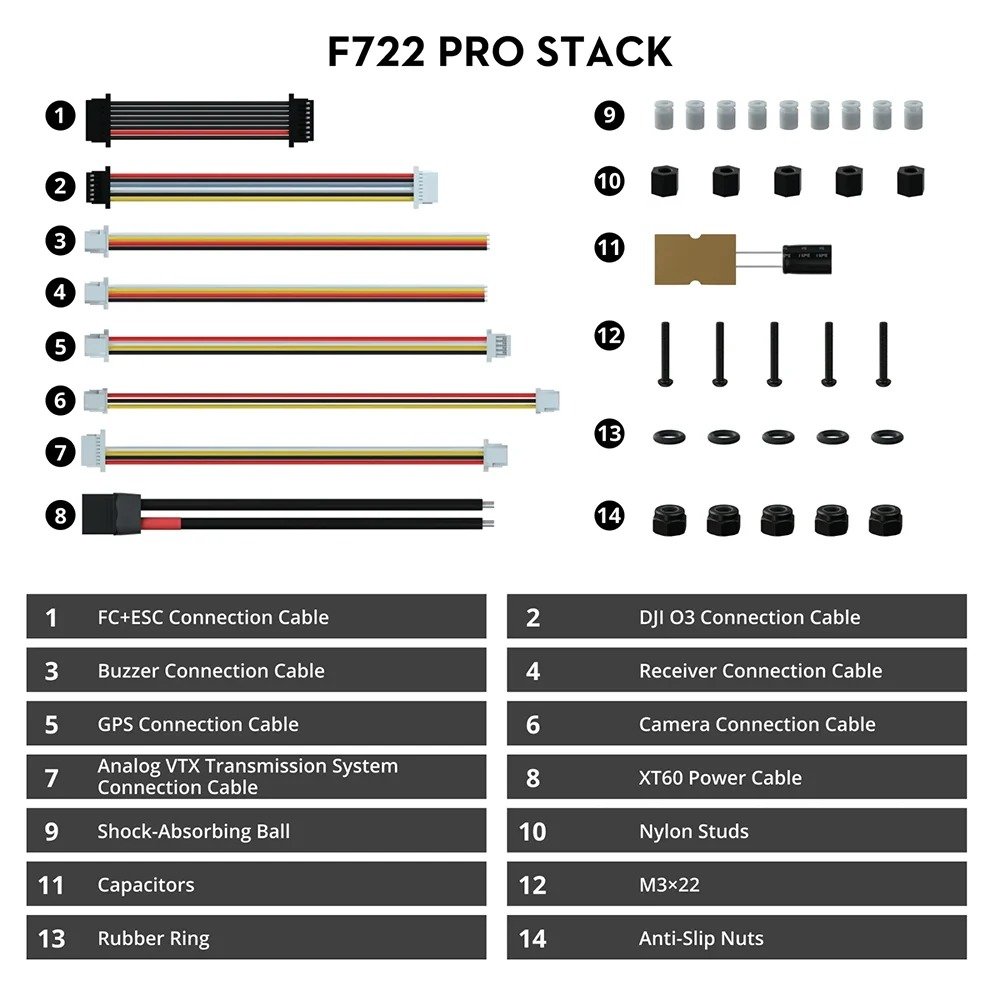

Package Includes:

• 1 x FC&ESC Connection Cable
• 1 x Buzzer Connection Cable
• 1 x GPS Connection Cable
• 1 x DJI O3 Connection Cable
• 1 x Receiver Connection Cable
• 4 x M3 Shock-Absorbing Ball
• 7 x M3 Rubber Ring
• 1 x Analog VTX Connection cable
• 1 x Camera Connection Cable
