GEPRC CineLog20 HD O3 4S 2″ BNF FPV Drone W/ DJI O3 FPV System

Transform Your Indoor Shooting with the GEPRC CineLog20

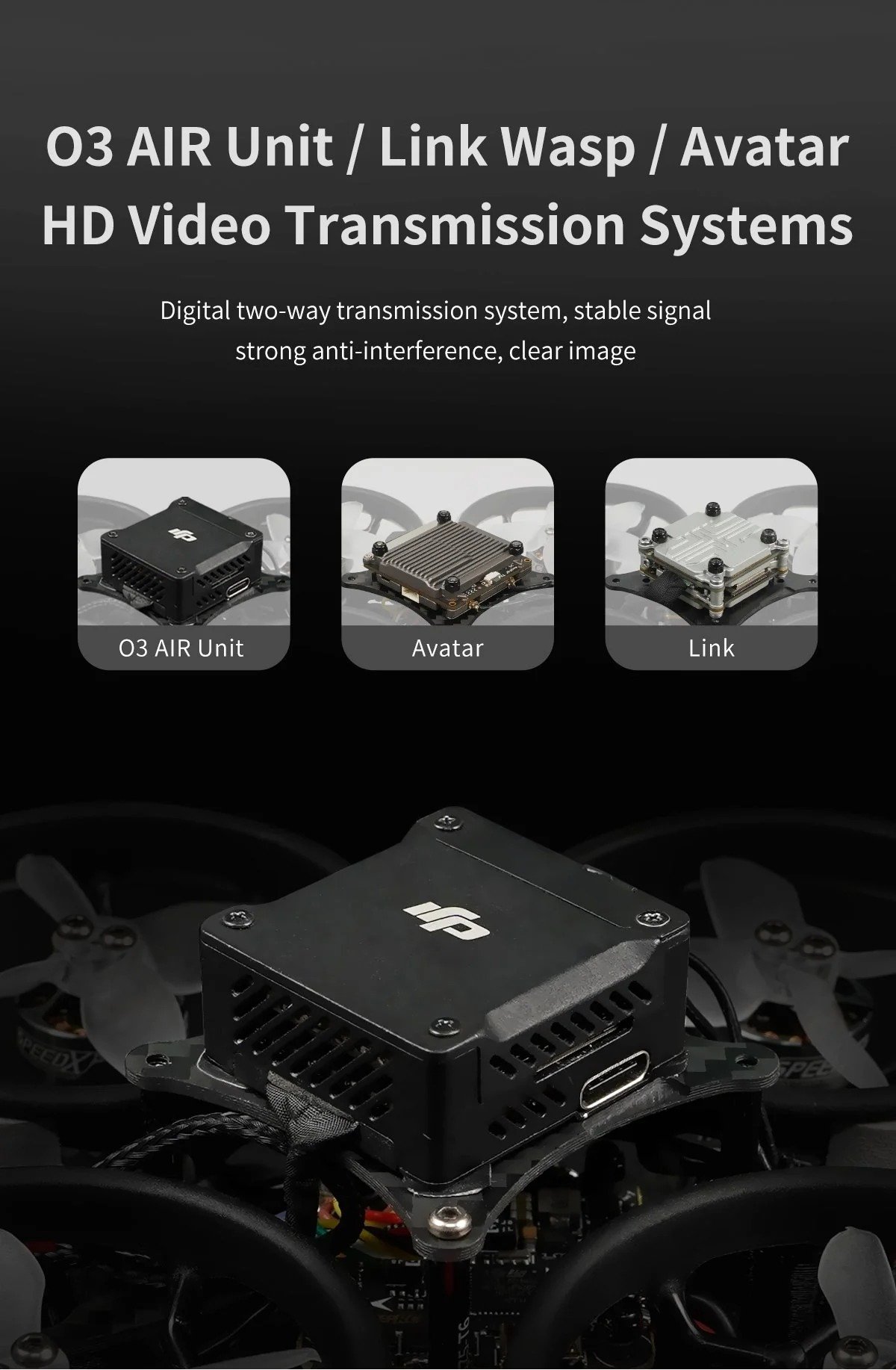

The GEPRC CineLog20 is built to tackle the unique challenges of capturing stunning footage in complex indoor environments. With its highly efficient 2-inch Cinewhoop design, this masterpiece stands as the latest addition to the renowned CineLog series. Offering compatibility with four mainstream video transmission systems—Link Wasp, O3 AIR Unit, Walksnail, and Analog—this versatile drone empowers filmmakers and hobbyists alike to adapt to any shooting requirement with ease.

A Design Focused on Stability, Durability, and Lightweight Performance

The CineLog20 introduces a groundbreaking approach to camera stabilization. Its redesigned camera gimbal vibration reduction system ensures unmatched anti-shake performance, making it ideal for high-quality video production. When paired with the O3 AIR Unit, the CineLog20 provides video recording in 4K resolution at a stunning 120fps—all without needing to mount an external camera, thereby reducing weight and extending battery life for longer shooting sessions.

Equipped with the GEPRC SPEEDX2 1303.5 5500KV motor and GEP-F411-35A AIO, the CineLog20 boasts an efficient power system that ensures quiet flights and extended runtime. The addition of Emax 4-blade propellers optimizes the power output while maintaining precision and stability, giving users peace of mind during their flights.

A Universal Platform for Action Cameras

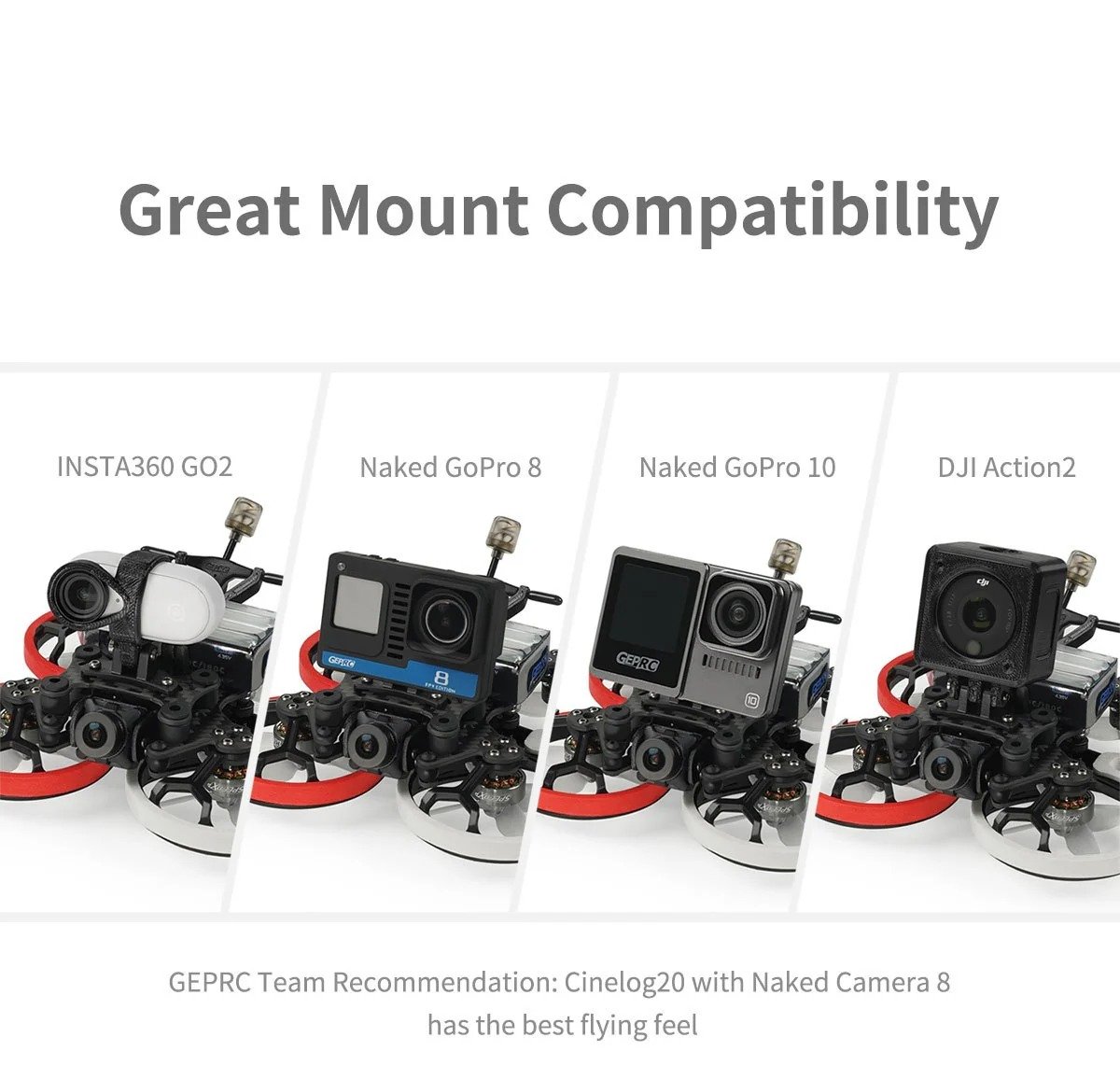

Whether you’re a professional videographer or a drone enthusiast, the CineLog20 is meticulously designed to meet your needs. Its integrated injection-molded camera mount system allows seamless installation of lightweight action cameras such as the GEPRC naked GoPro 8/9/10/11, Action2, Insta360 Go2, Peanut, and others. With this level of adaptability, your shooting capabilities are endlessly customizable.

Elevate your indoor cinematography and experience smooth, quiet flights with GEPRC’s CineLog20. Designed for reliability, efficiency, and exceptional video quality, this compact Cinewhoop is a stellar addition to any filmmaker’s toolkit.

Specifications

• Model: CineLog20 HD O3
• Frame: GEP-CL20
• Wheelbase: 100mm
• Gimbal plate: 2.0mm
• Top plate: 2.5mm
• Bottom plate: 1.5mm
• FC system: GEP-F411-35A AIO
• MCU: STM32F411CEU6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: 8Bit 35A
• VTX: O3 AIR Unit
• Camera: O3 Camera
• Antenna: 5.8G&2.4G
• Motor: GR1303.5 5500KV
• Propeller: EMAX Avan Micro 2×2.4×4
• CineLog20 HD O3 TBSNanoRX weight: 140g
• Receiver: PNP(built-in DJI receiver), ELRS2.4G, TBS Nano RX / RXSR
• Recommended battery: LiHv 4S 450mah-660mah
• Flight time:4-6min

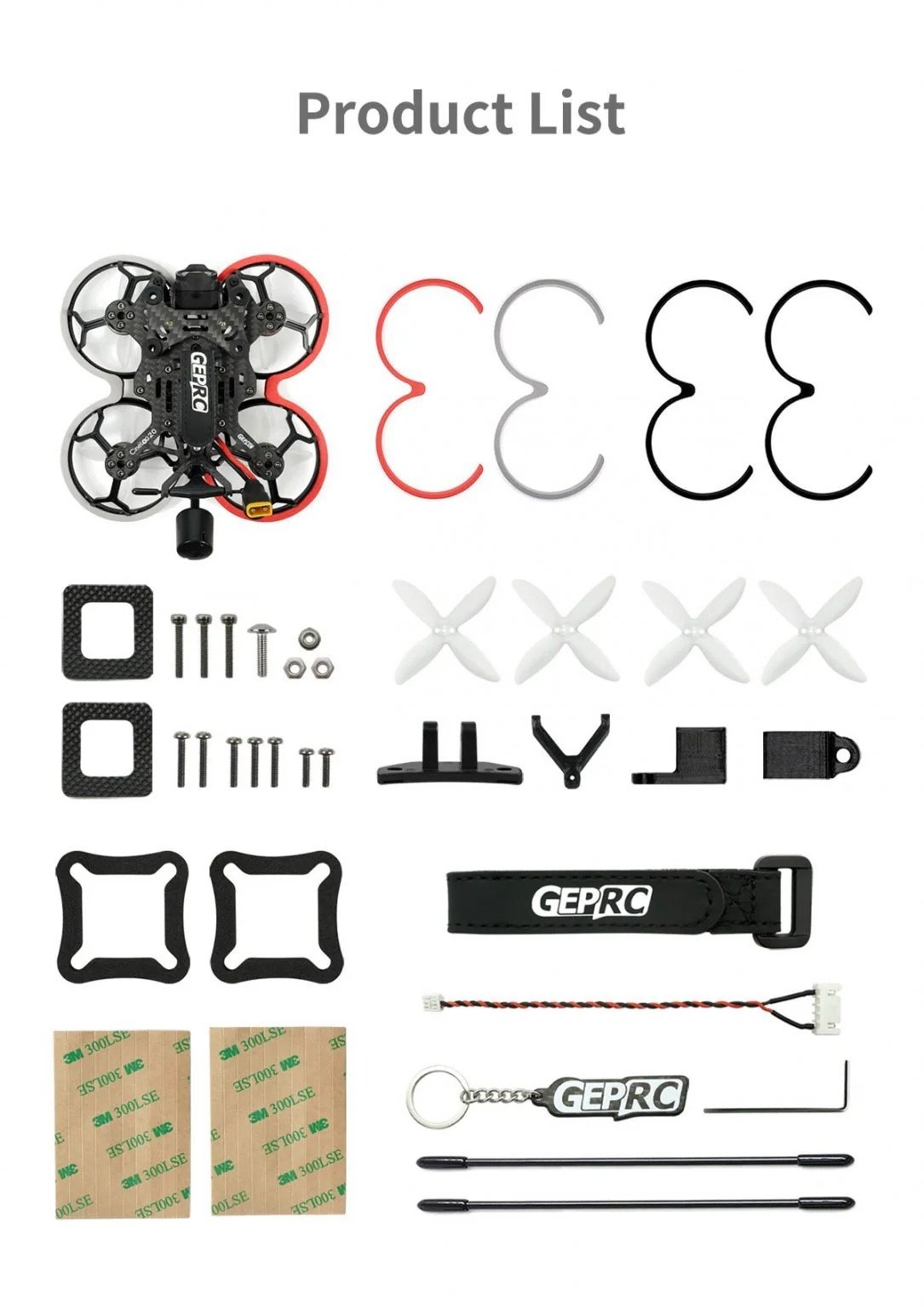

Includes

• 1 x GEPRC CineLog20 HD O3 4S 2″ BNF FPV Drone W/ DJI O3 FPV System – Chosen Receiver Type
• 2 x 2 inch propellers (pairs)
• 1 x Naked GoPro Base
• 2 x M15*150mm battery strap
• 2 x Battery Silicone Pads
• 2 x EVA landing Pads
• 1 x Set of screws
• 1 x L-shaped screwdriver (1.5mm)
• 1 x Antenna fixed tube
• 1 x 4S Naked GoPro power cable (with balanced terminal head)
• 2 x EVA damping rings of guards
• 1 x TBS Antenna mount (Vertical Type)
• 1 x TBS Antenna mount (Horizontal Type)
• 1 x TBS Antenna printed parts
• Screw package includes:
  • 3 x M2*12mm cup head screws
  • 2 x M2*5mm round head screws
  • 1 x M2*8mm round head screw with pad
  • 3 x M2*7mm round head screws
  • 2 x M2*8mm round head screws
  • 2 x M2 iron nuts
  • 1 x self-clinching nut

Note: Action camera is not included.
