Description
Unleash Superior Flight Performance

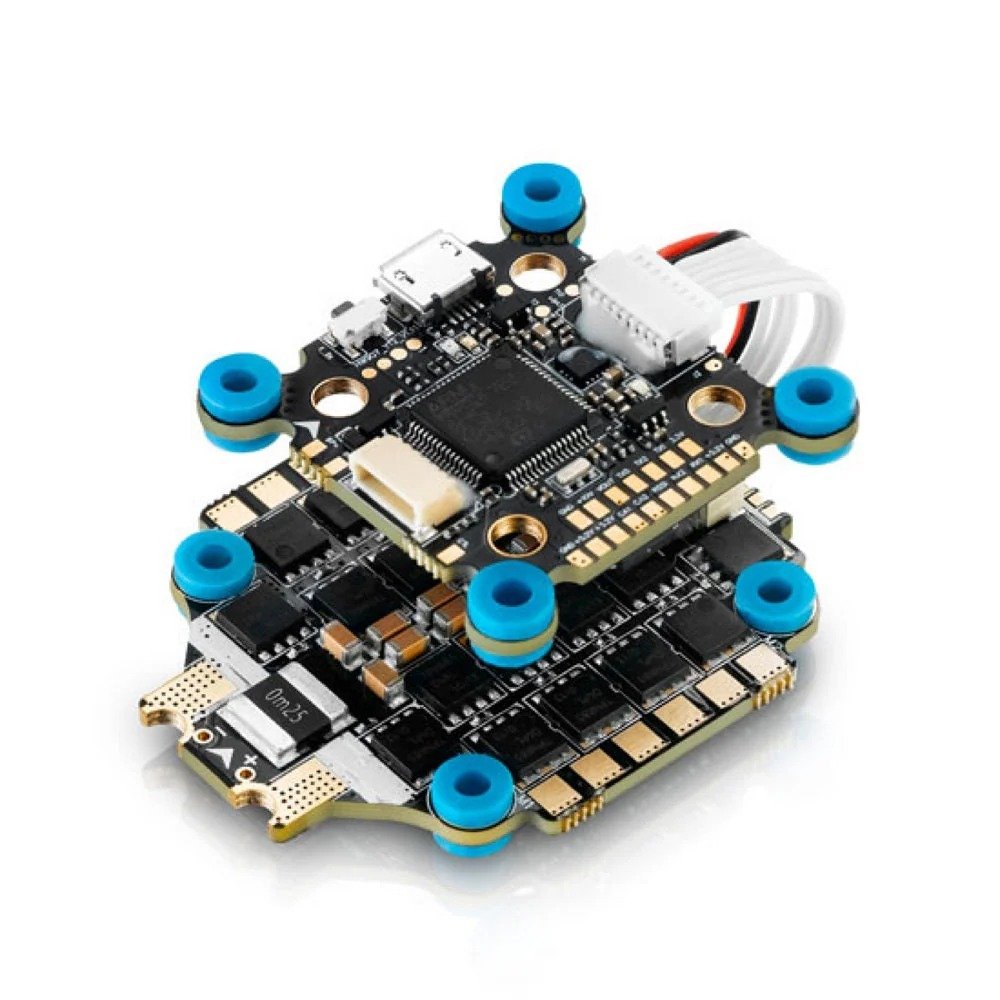

The HobbyWing XRotor Convertible F7/65A Stack takes your drone experience to the next level with innovative technology and reliable components. At the heart of this stack lies the powerful F7 flight controller equipped with STM32F722 MCU, boasting high computing abilities and fast operational speeds. Whether you’re flying recreationally or professionally, the high-sensitivity ICM20602 six-axis motion sensor ensures absolute control and stability for a smooth flight experience.
Seamless Connectivity & Operation
Enjoy ease-of-use like never before thanks to the HD DJI Plug-and-Play feature. With optimized bi-directional D-Shot digital throttle communication, the HobbyWing XRotor delivers responsiveness and precision that every pilot desires. Additionally, you’ll appreciate the integrated OSD chip, which makes adjusting and setting OSD parameters effortless through the FC parameter adjustment software and your radio transmitter. This feature eliminates unnecessary steps, saving you time and ensuring better control over flight dynamics.
Enhanced Data Management & Debugging
One standout feature of the XRotor Convertible Stack is its built-in large-capacity Flash memory chip. This allows you to record and store significant flight logs with ease, providing valuable data for debugging and enhancing your drone’s performance based on specific aviation metrics. Whether you’re troubleshooting or fine-tuning your craft for optimum performance, this flight stack has got you covered.
Designed for Peak Reliability
Equipped with a robust 65A HW ESC (Electronic Speed Controller), this stack provides efficient power management and stability without missing a beat. Its 30×30 mounting size ensures compatibility with most drone builds, making it versatile and adaptable to various configurations. HobbyWing’s commitment to quality engineering ensures your drone flies with precision and durability in every session.
The HobbyWing XRotor Convertible F7/65A Stack is the perfect choice for drone enthusiasts and professionals seeking reliable performance, ease of use, and exceptional flight control. Experience the next evolution in drone technology with HobbyWing.
FC Specifications:
- Compatible with (Multirotors) Quadcopters
- Firmware HOBBYWING_XROTORF7CONV
- FC Programming Supported
- Programming via Betaflight/ Cleanflight-configurator
- Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
- Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- OSD Built-in
- Voltage Monitoring Supported
- Current Monitoring Supported
- External Buzzer Supported
- LED Control Supported
- BEC 5V @ 1.5A ; 10V @ 1.5A
- Size 32x32mm
- Weight 3.3g
ESC Features:
- High-performance 32-bit microprocessor with the running frequency of up to 48MHz for an excellent performance.
- BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
- All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environments.
- The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
- Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
- The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.
- Onboard 10V &5V BEC, powering different accessories such as FC, VTX, Camera and LED lights and etc.
ESC Specifications:
- LiPo Power input: 3S-6S
- Cont.Current: 65Ax4
- Burst Current: 80Ax4
- BEC Output: 5V@ 0.5A
- Input wires: 12AWG-130mm* (Red/Black)
- Output Wire: No wires but solder tabs
- Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
- Weight / Size: 15.0g / 32.7×18.4×6.2mm
- Mounting holes: 30.5×30.5mm
- Throttle Calibration: Supported
- ESC Programming: BLHeliSuite32
Package Includes:
- 1 x HobbyWing XRotor Convertible F7/65A HD Stack DJI PNP – 30x30mm
