Description
Unmatched Innovation for Your Drone Experience
The Holybro Kakute F4 V2.4 Flight Controller is engineered to take your drone setup to the next level. Designed for ease and performance, this flight controller brings together advanced technology and user-friendly features to ensure a seamless flying experience. Featuring a plug-and-play DJI O3 HD camera plug, integrated 4-in-1 ESC ports, and a built-in barometer, the Kakute F4 V2.4 is ideal for both beginners and professionals who demand reliability and quality.
Packed with Cutting-Edge Features
With the Holybro Kakute F4 V2.4, you get a comprehensive suite of features designed to maximize functionality and convenience. It boasts five UARTs, enabling extensive configuration for various kinds of peripherals. The onboard logging capability with built-in flash allows you to capture and review flight data effortlessly, giving valuable insights into your drone’s performance. Moreover, the integrated OSD (On-Screen Display) means you’ll always have critical flight information readily available during operation.
This flight controller also comes equipped with dependable power management solutions through its versatile 5V and 9V/3A BEC. It ensures a stable power supply for your drone’s components, including your HD video transmitter, such as the DJI O3 Air Unit. The easy soldering layout further simplifies installation, allowing for quick assembly and modifications without compromising on efficiency.
Designed for Seamless DJI HD Integration
The Holybro Kakute F4 V2.4 is specially crafted to be DJI HD-ready. At the core of its design is the onboard 9V/A regulator, which is dedicated to powering your HD video transmitting unit with precision and reliability. With the simple and intuitive plug-and-play DJI HD port, you can effortlessly connect your DJI O3 camera system, enhancing your drone’s video capabilities. Whether you’re using it for aerial photography, FPV racing, or professional drone projects, this feature ensures crystal-clear visuals and smooth performance.
The Kakute F4 V2.4 is built for flexibility and ease-of-use, offering a combination of robust hardware and convenient features that make it stand out in the market. Its streamlined layout, reliable components, and thoughtful features elevate it to be an industry-leading flight controller for any drone enthusiast.
Specifications
Kakute F4 V2.4
- MCU – STM32F405
- IMU – MPU6000
- Barometer – BMP280
- OSD – AT7456E
- 5x UARTs (1,3,4,4,6,7)
- 128 Mbit Dataflash chip
- Battery input voltage: 2S-8S
- BEC 9V/3A – Optimized for DJI O3 Air unit
- BEC 5V/2A
- 7x PWM Outputs (6 Motor Output, 1 LED)
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
- Mounting – 30 x 30mm, Φ4mm hole with M3 Grommets
- Dimension – 37x37mm
- Weight – 7g
- JST-SH1.0_8pin port (For 4in1 ESCs)
- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)
Tekko32 F4 Metal 4in1 65A ESC
F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output: 16k ~96k PWM / 4~6S / BLHELI32
The all new Tekko32 Metal is the first 4in1 ESC in the market to adapt the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response.
Features:
-
New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
-
PWM Frequency: 16k to 96k
-
Metal-cased MOSFET for excellent heat dissipation
-
Massive on-board capacitance for noise filtering at 2068uf
-
3 oz copper PCB design to allow bigger current and better heat dissipation
-
Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

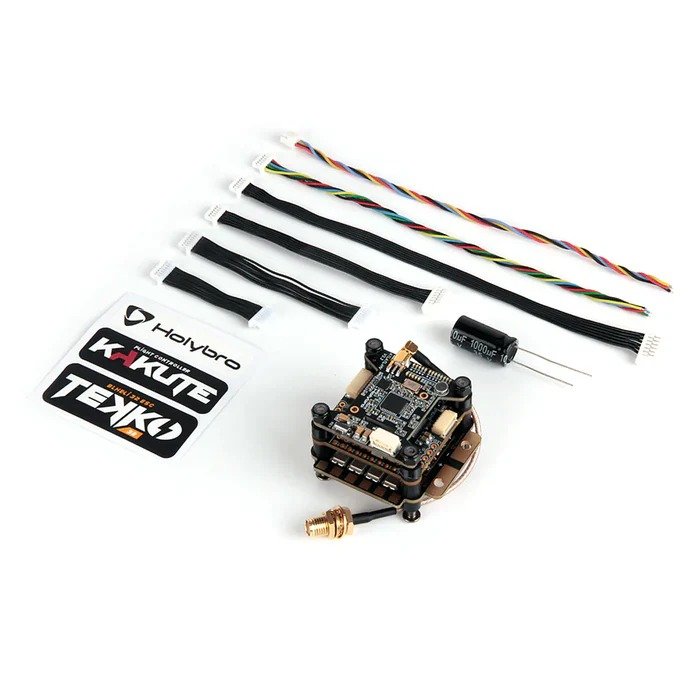

Package Includes:
- 1x Kakute F4 V2 STACK
- 1x Electrolytic capacito: 1000uF 35v
- 1x 8pin to 8pin 1mm pitch 65mm cable
- 1x 8pin to 8pin 1mm pitch 25mm cable
- 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
- 1x JST SH 6pin 100mm cable(for Caddx HD Systems)
- 1x 80mm SMA–MMCX Cable
- 1x JST GHR 4pin 150mm cable
