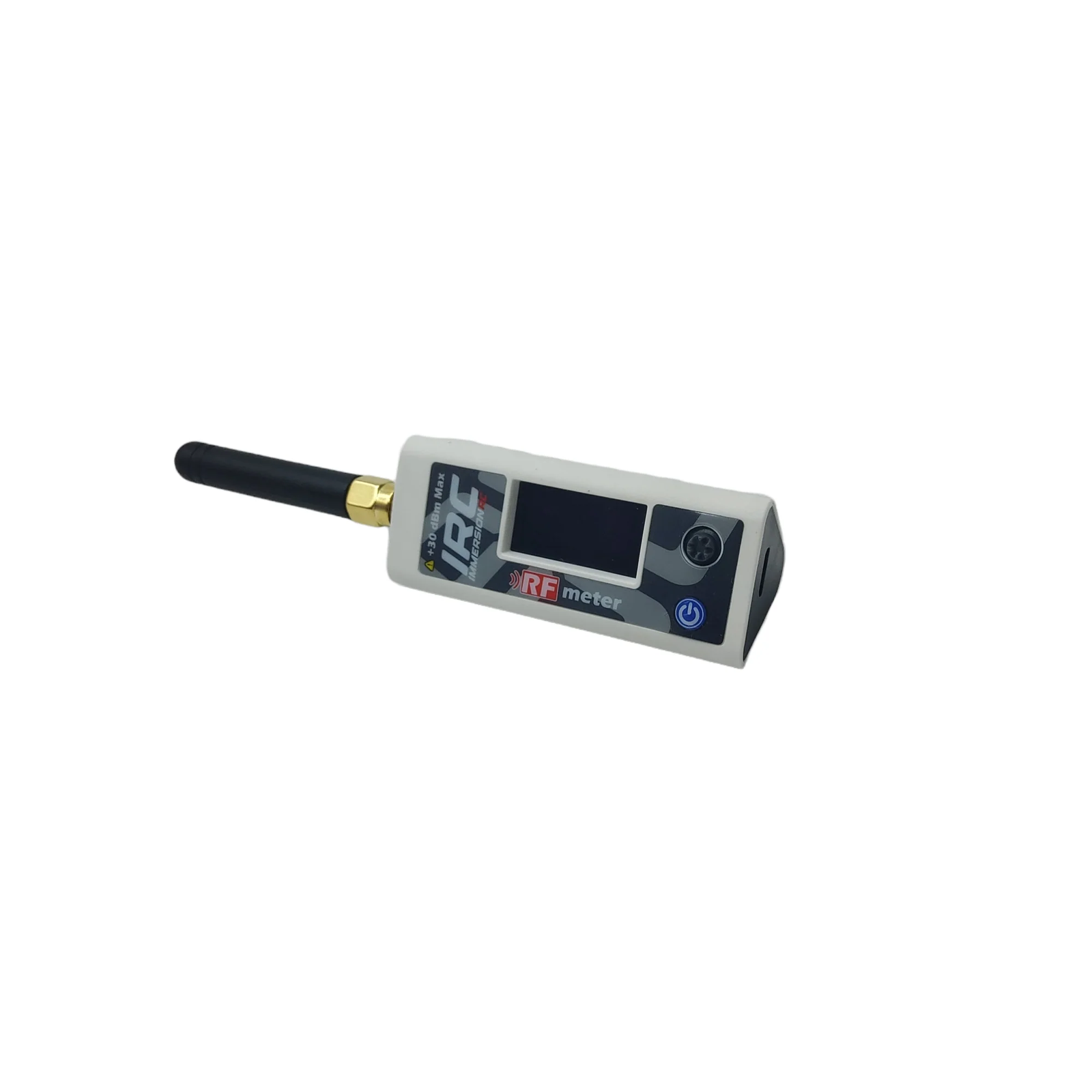

ImmersionRC Power Meter V2.1

Next-Level Precision for RF Signal Measurement

Take the guesswork out of RF signal analysis with the ImmersionRC Power Meter V2.1 — a compact and robust device engineered to bring precise measurement to all your RF-related projects. Whether you’re fine-tuning transmission systems, troubleshooting signal inconsistencies, or optimizing the output of RF equipment, this tool is designed to elevate your workflow. With seamless functionality, it is uniquely compatible with various frequencies, ensuring superior accuracy and reliability for hobbyists and professionals alike.

Effortless User Experience

The ImmersionRC Power Meter V2.1 combines high performance with intuitive usability, making it an indispensable part of your toolkit. The device’s ergonomic design ensures it is easy to transport, and the display offers clear, real-time readings, ensuring that you can monitor RF levels without hassle. It features versatile connectivity options, allowing seamless integration with your setup. Whether you’re running drone frequencies or working with wireless communication systems, the Power Meter V2.1 adapts to meet your requirements.

Built for Durability and Versatility

Constructed to withstand demanding conditions, the ImmersionRC Power Meter V2.1 boasts rugged durability, offering reliable performance in a wide array of environments. From field tests to indoor setups, this device delivers uncompromising accuracy every time. The wide frequency measurement range coupled with calibrated sensitivity makes it suitable for various applications, including RC models, UAVs, HAM Radio enthusiasts, and much more. This ensures that your RF-related tasks are executed with precision and confidence.

Whether you’re a seasoned RF expert or new to the field, the ImmersionRC Power Meter V2.1 is designed for anyone seeking high-quality measurement and enhanced performance in their RF system. Experience the difference in precision and control. Make the ImmersionRC Power Meter V2.1 an essential tool for your projects today.

FPV is made possible thanks to two RF links, a control link, and a video link. Without an RF Power Meter a pilot has no way to test these critical RF links.
Test equipment for microwave (GHz) links is not cheap. ImmersionRC changed this several years ago, and provided our ‘Power Meter v1’ to the FPV community. The v2 is the result of listening to customer feedback. We added an internal battery an internal attenuator, and a few features that every FPVer needs.

Accurate RF Power Measurements

Is the latest whiz-bang hype-train vTx really as good as the datasheet claims? Does it really emit 25mW on all race channels? Does it still emit 25mW 30 minutes later?
The RF Power Meter v2 allows these questions, and many more to be answered.
Back in the early days of FPV racing ImmersionRC pioneered low-power racing, where everyone runs 25mW. This became a world-standard within a few short months, and continues to be the standard today. The Power Meter v2 gives you the measurement tool that you need to test transmitters, before you get surprised at the next race.

Touch-Free Race Compliance

Are you ready to test your video transmitter before the hammer comes out?
With the included stubby dipole, the RF Power Meter v2 is all that you need to perform a rough power test on any FPV platform, even without unscrewing it’s antenna.
Calibrate the meter on a ‘known good’ platform, and walk down the start grid testing each quad ready to race. Quads accidentally set on high power (hammer-ready), or those with hardware/cable/connector/antenna problems emitting a few micro-watts are identified before the first gate.
We call this ‘Scully Mode’ for a good reason. Joe Scully, the best FPV MC in the business, perfected this test technique to ensure successful race meets on all four corners of the globe.

PowerScope Mode

So you know that ‘packets’ of data are flowing from your R/C Tx, or Long Range system, to your model… but what if you could ‘see’ them?.
The PowerScope mode of the RF Power Meter v2 presents you with a visual representation of the power being emitted from your radio.
How fast are they packets emitted? are the multitude of antennas in your radio working? where are they? what orientation?
You can even spot transmitters which comply with LBT (listen before talk), or Duty Cycle limitations.

Average, or Peak Measurements

Analog Video Transmitters emit a steady stream of RF goodness. R/C Controllers emit a stream of pulsed goodness (which just happens to be heading in the opposite direction).
The RF Power Meter v2 can deliver accurate power measurements for both types of RF signals.

Integrated Li-ion Battery

The v2 contains an integrated Lithium Ion battery, which will power the meter for at least 8 solid hours. With auto-shutdown after periods of inactivity, a single charge will power your meter for days at the race track.
Recharged using a standard micro-USB connector in less than one hour.

Specifications:

• Power Level: -20dBm up to +30dBm
• Calibrated Frequencies: 35, 72, 433, 868, 915, 1200, 2400, 5600-6000MHz in 50MHz steps
• Accuracy: +/- 0.5dB
• Attenuator: 30dB (Internal)
• Battery: 3.7V Lithium Ion cell, 10440 size, 600mAh
• Current Consumption: ~35mA
• Battery Life: ~8 hours
• Auto Shutdown: 5 minute timeout
• Charging: Micro USB cable
• Display: OLED, 128×64 pixels, monochrome
• User Input: Joystick
• Interfaces: USB, power control via CDC
• Antenna: 5.8GHz ‘Sniffer Antenna’ (linearly polarized ~2dBi dipole)
• Adapter: Male to Male SMA adapter

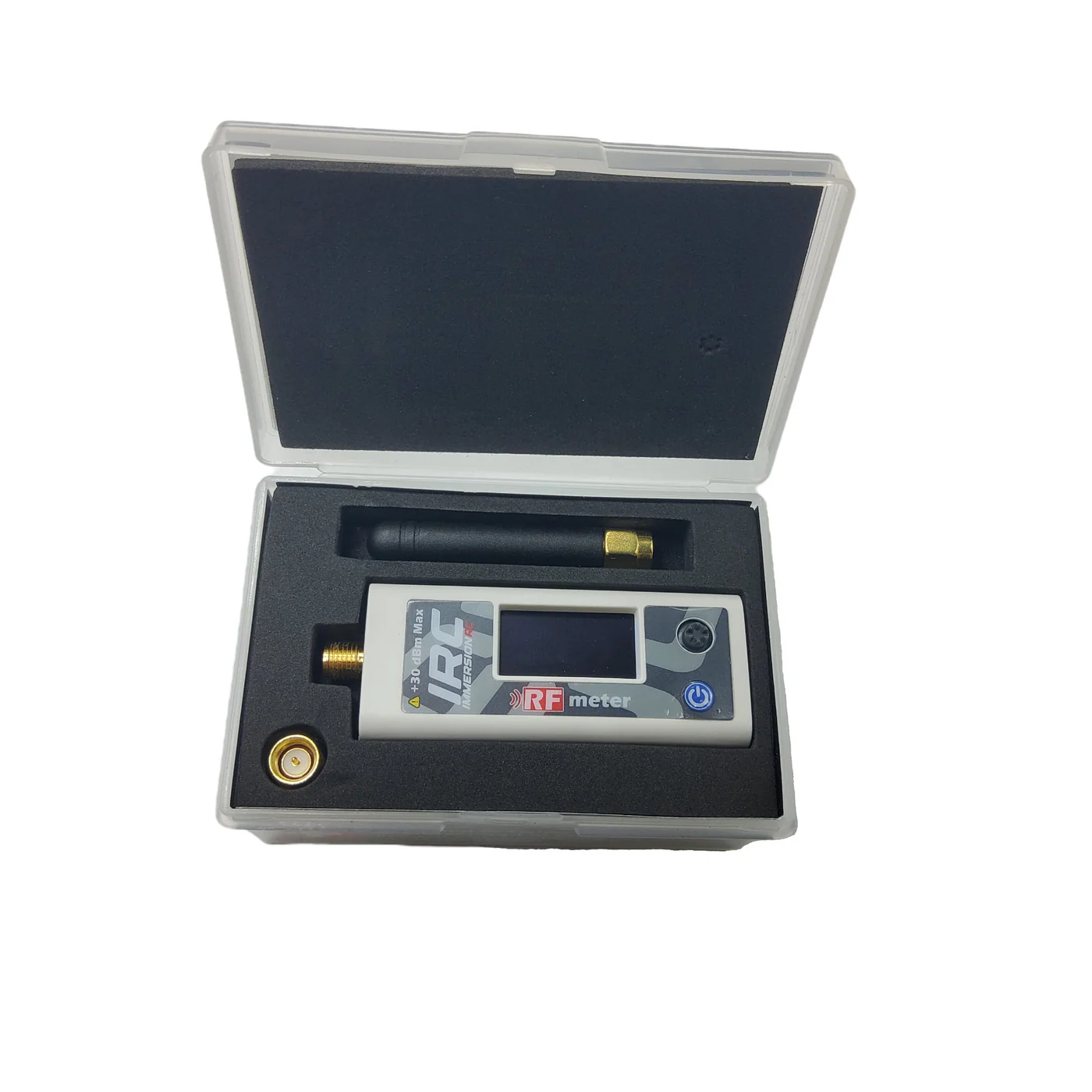

Package Includes:

• 1 x ImmersionRC Power Meter V2.1
• 1 x 5.8GHz Linear Polarized Antenna
• 1 x Male to Male SMA Adapter
