Description
Exceptional Design and Durability

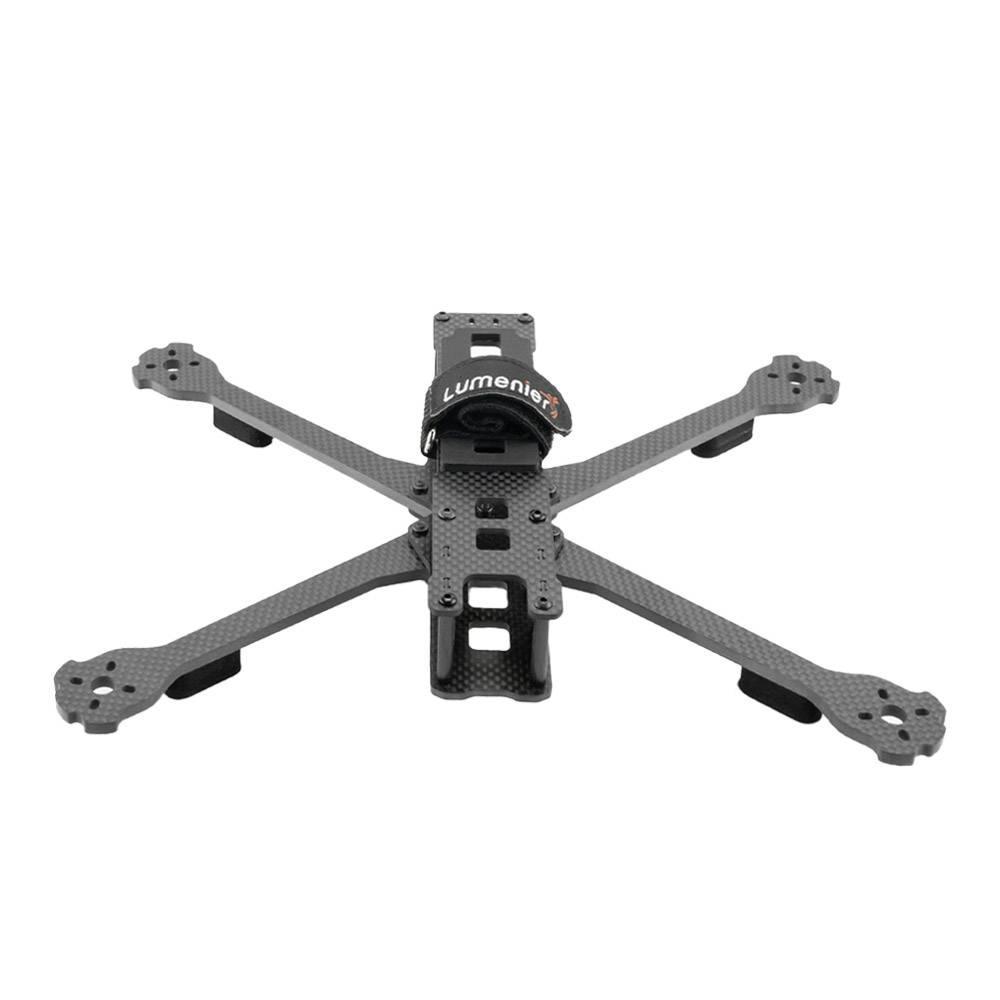

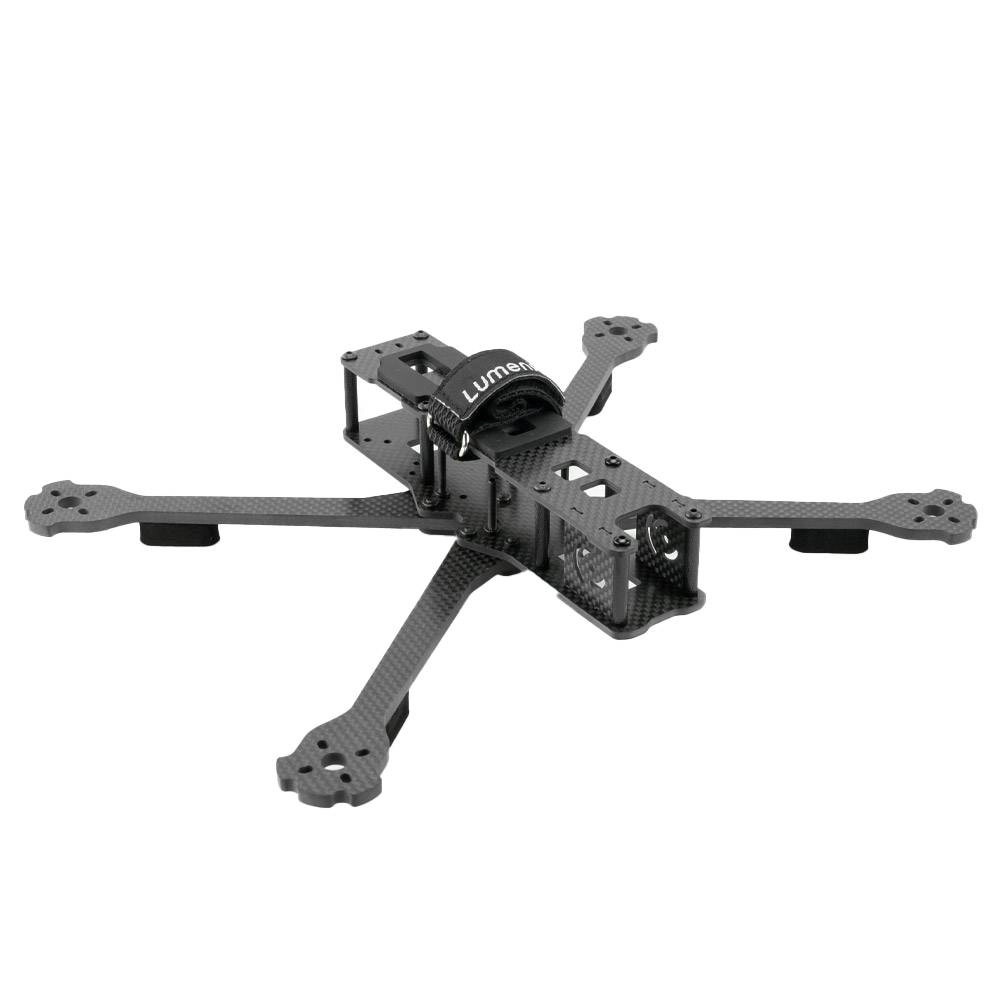

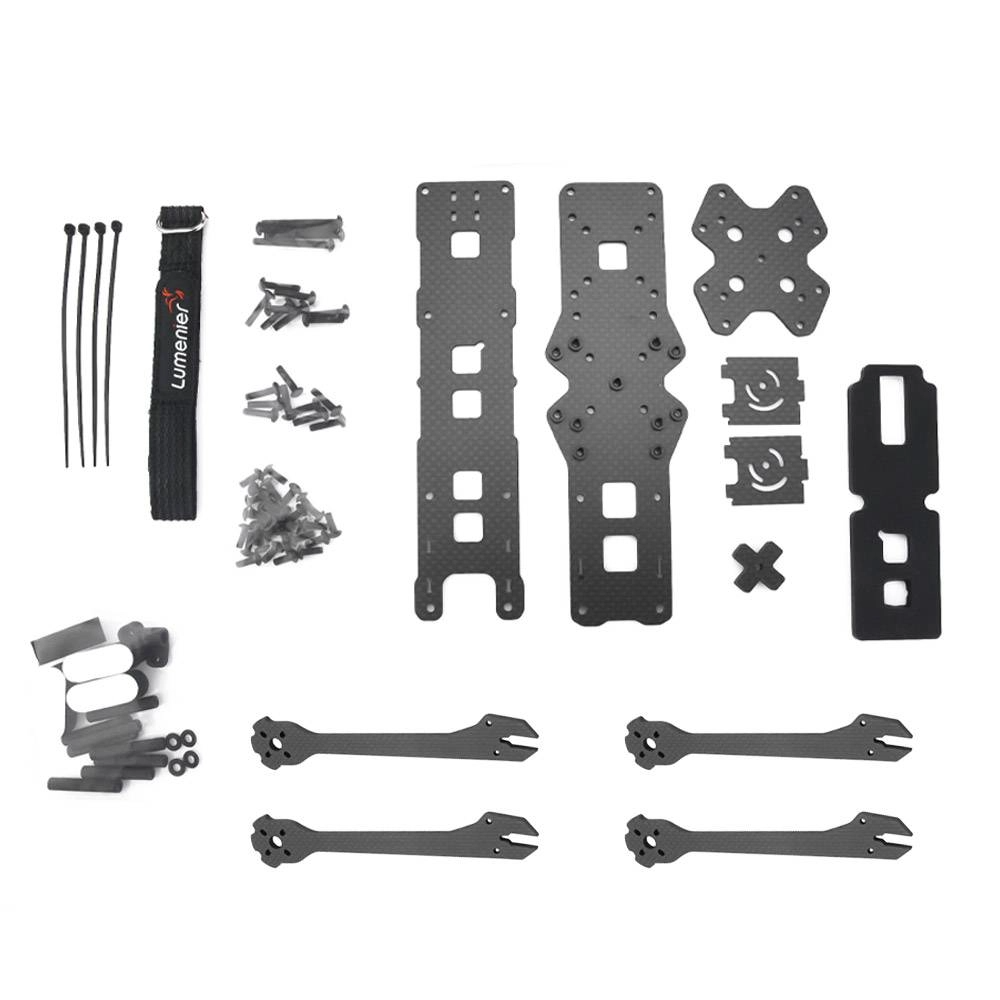

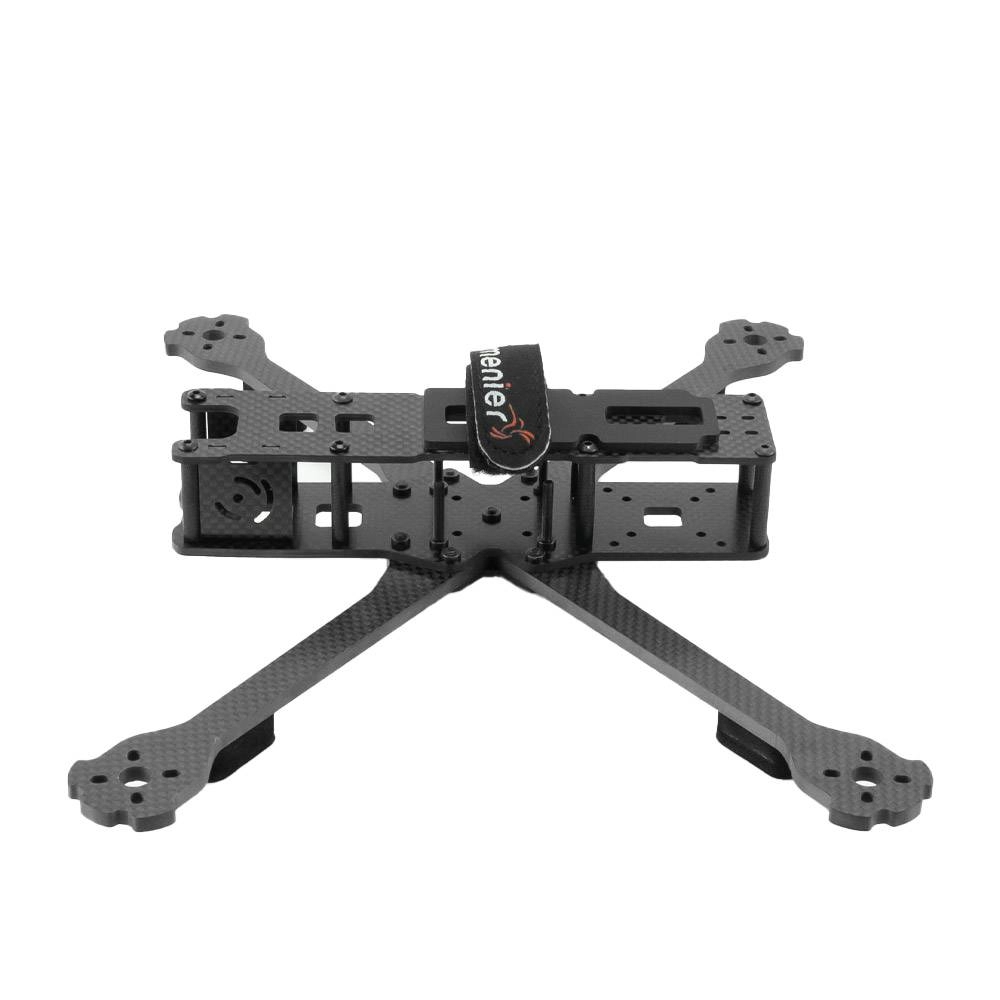

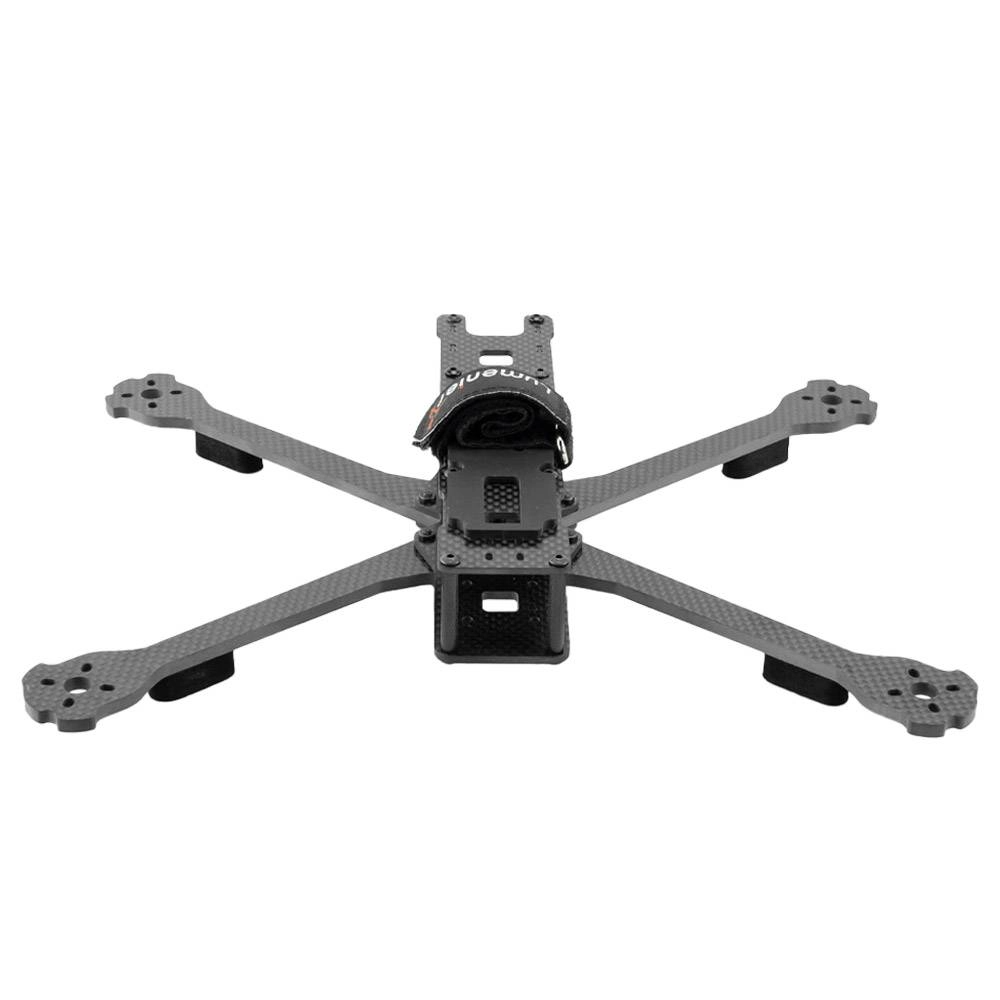

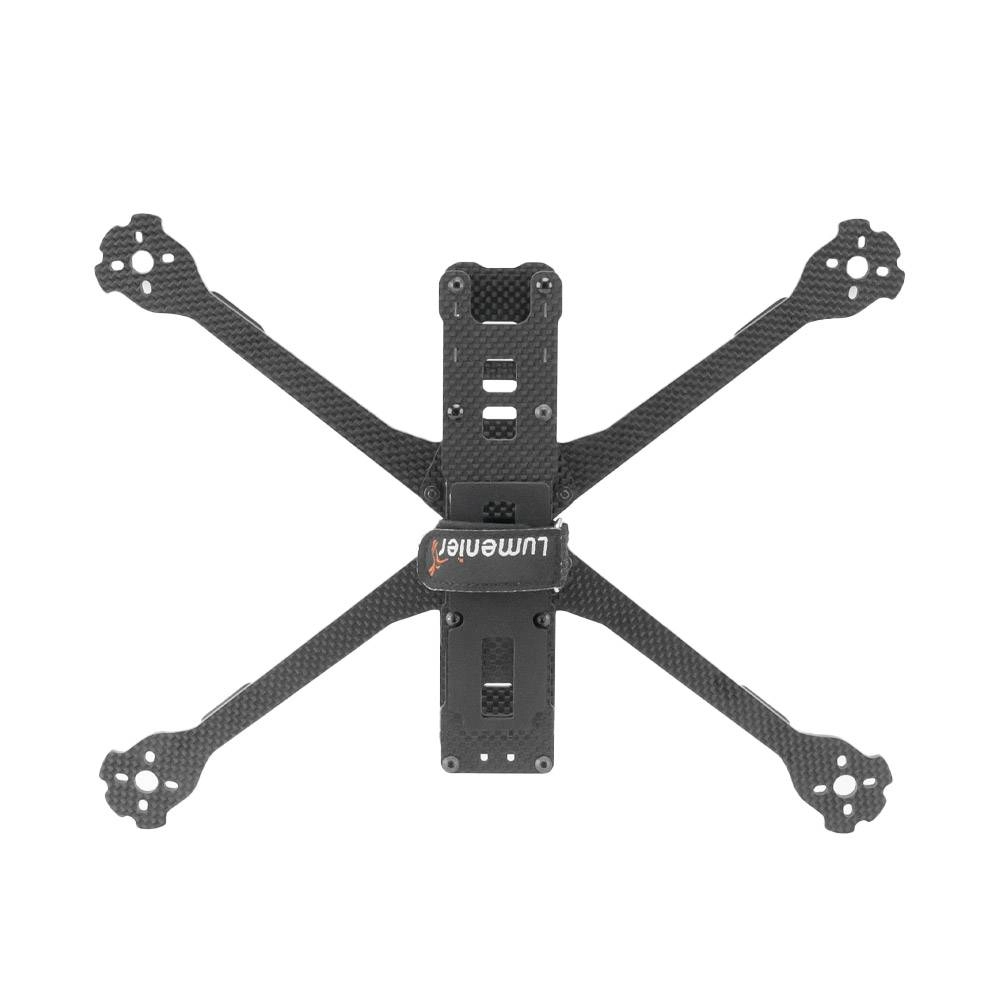

The Lumenier QAV-R 2C 7″ Frame Kit stands out with its premium build quality. Engineered using silky, clear-coated carbon fiber, this frame ensures both strength and elegance. The material not only enhances robustness but also adds a refined aesthetic to the overall design. Whether you are a seasoned drone enthusiast or just getting started, the QAV-R 2C delivers a stellar combination of performance and durability.
Ample Space for Accessories
One of the standout features of the QAV-R 2C 7″ Frame Kit is its extended main body. This thoughtful design provides ample room for you to mount accessories and electronics without restraint. Whether you want to add advanced cameras, batteries, or other equipment, this frame accommodates your unique setup flawlessly. The spacious layout makes it easier to manage wiring and components, ensuring a seamless assembly process.
Optimized for Versatility
Designed to meet the diverse needs of drone enthusiasts, the Lumenier QAV-R 2C 7″ Frame Kit is optimized for versatile usage. Whether you’re into FPV racing or aerial photography, this frame delivers top-notch performance that adapts to your application. Its lightweight yet durable carbon fiber construction makes it an excellent choice for fast maneuvers, while its stability ensures smooth footage for photographers and videographers.
Upgrade your drone experience today with the Lumenier QAV-R 2C 7″ Frame Kit—engineered for performance, durability, and versatility.
Features
- Versatile 20.5×20.5 / 30.5×30.5 Stack Mounting
- Carbon Fiber Camera Sidewalls
- Silicone Non-Slip Battery Pad
- Reinforced Bottom X-Brace
- Premium 3K Carbon Fiber
- Squashed-X Configuration
- Black Oxide Steel Screws

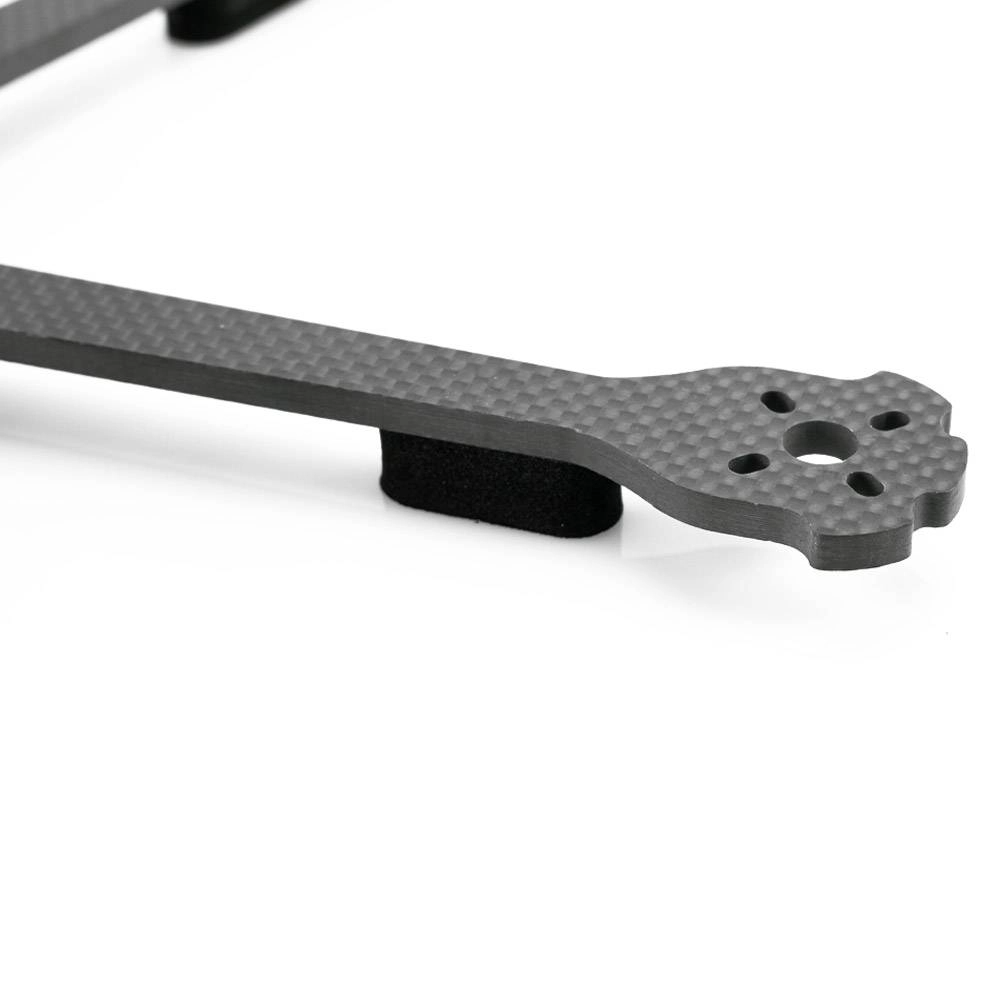

- Removable 5mm Arms
- Easy-Grip Spacers
- Motor Guards
Specifications
- Motor to Motor Dimensions: Diagonal 302mm, length 182mm, Width 242mm
- Stack Mounting: 20mm (M2) & 30mm (M3)
- Name: Lumenier QAV-R 2C Frame Kit – 7″
- VTX Mounting: 20×20 & 30.5×30.5
- Bottom to Top Thickness: 28mm
- Dimensions: 216mm * 278mm
- Battery Pad: Silicone Non-Slip
- Frame Body Weight: 172g
- Material: Carbon Fiber
- Structure: Squashed X
- Bottom Plate: 2.5mm
- Arm Thickness: 5mm
- Carbon Material: 3K
- Wheelbase: 177mm
- Prop Size: 7 inches
- Motor Guards: Yes
- Top Plate: 2mm
