Description
Powerful Combination for Peak Performance

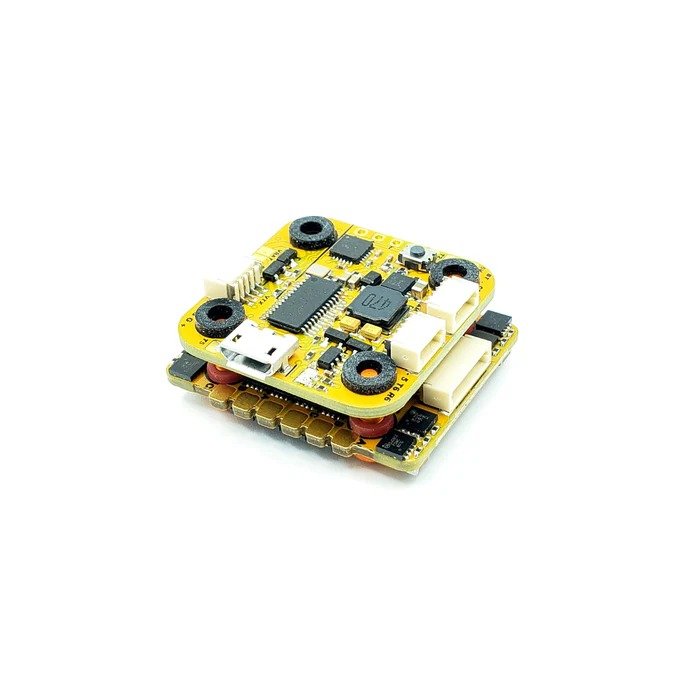

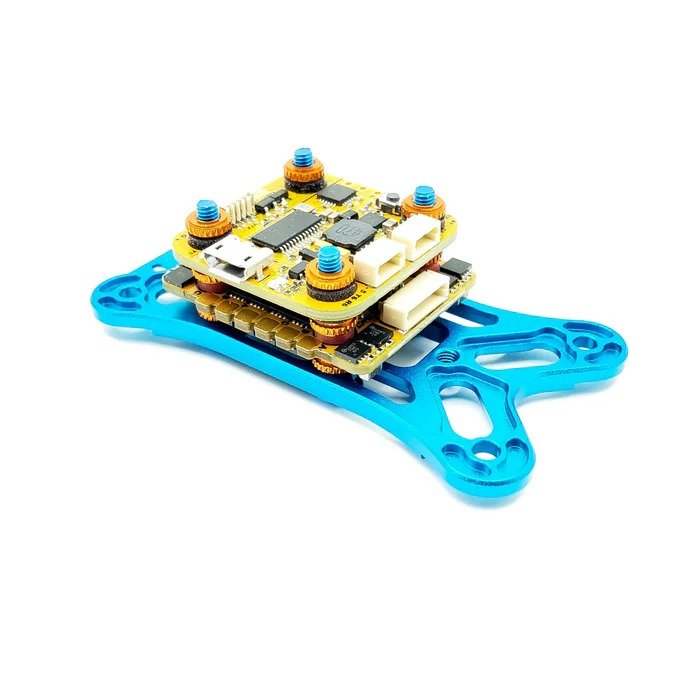

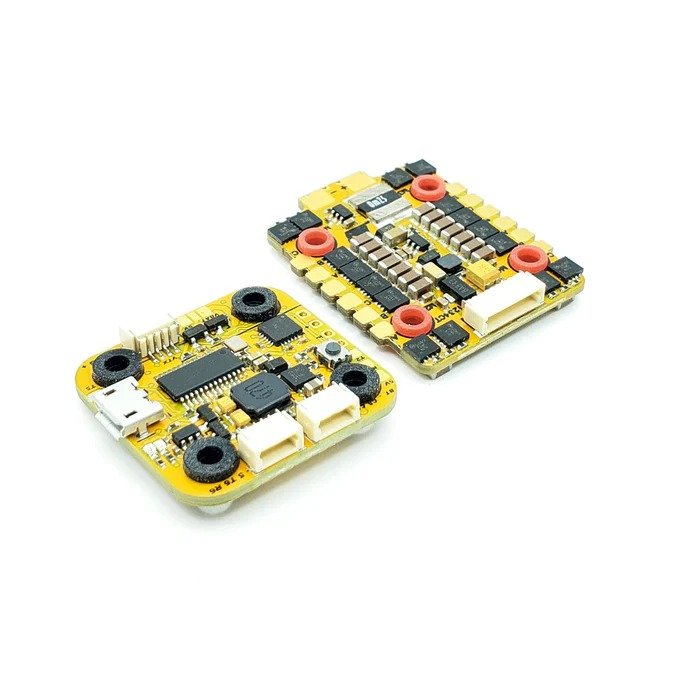

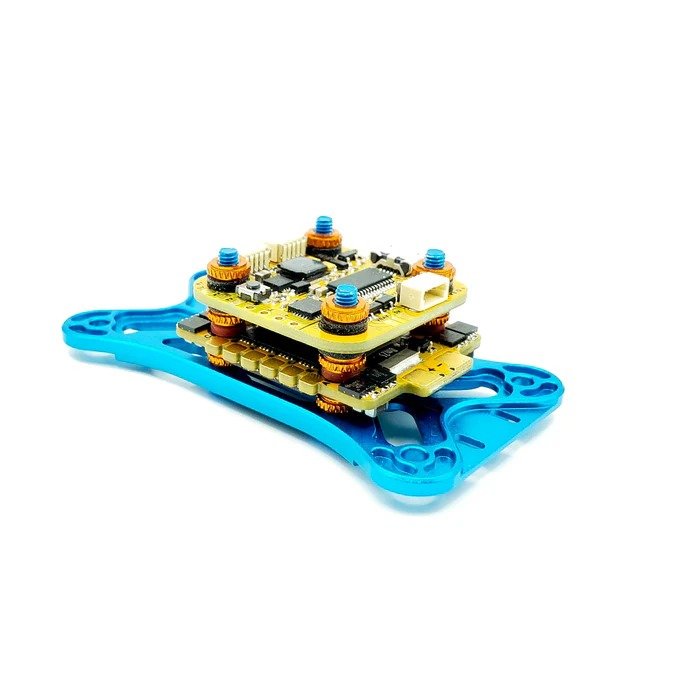

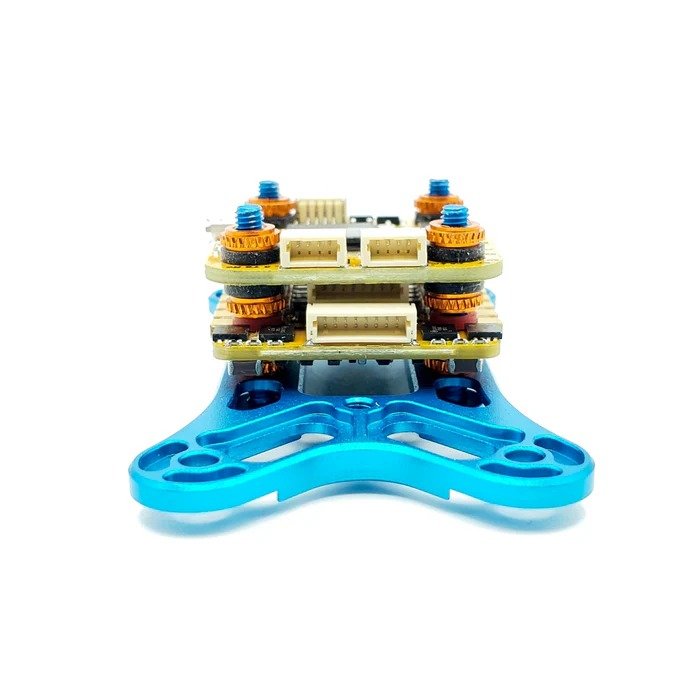

Unlock the ultimate flying experience with the Pyrodrone F7 MPU6000 20x20mm Flight Controller and Pyrodrone 32BIT 4-IN-1 35A 6S 20X20 Electronic Speed Controller combo. Designed to complement each other like bread and butter, this pairing delivers unmatched reliability, cutting-edge performance, and exceptional value. Whether you’re building a new drone or upgrading your existing setup, this combo is tailored for pilots seeking superior functionality without breaking the bank.
Pyrodrone F7 MPU6000 Flight Controller: Precision Redefined
The Pyrodrone F7 MPU6000 Flight Controller stands out for its impeccable design and robust capabilities. At just 20x20mm, this compact flight controller boasts unparalleled stability and responsiveness, making it ideal for high-intensity maneuvers and freestyle flying. Equipped with the MPU6000 gyro, known for its resistance to vibrations and smooth operation, this flight controller ensures your quadcopter feels more precise and reliable than ever. Additional highlights include advanced firmware compatibility, streamlined setup options, and seamless integration with modern FPV systems.
Pyrodrone 32BIT 4-IN-1 35A 6S ESC: Power Meets Efficiency
Paired with the Flight Controller is the Pyrodrone 32BIT 4-IN-1 35A 6S ESC, a powerhouse built to deliver unwavering power and efficiency in demanding flight scenarios. With an impressive 35A continuous current and 6S compatibility, this speed controller ensures optimal propulsion for drones needing that extra edge. The 32-bit architecture offers smoother responses, improved performance, and exceptional throttle control for enhanced flying precision. Durability and heat management are also standout features, ensuring your drone stays cool even during the most intense sessions.
Save More with the Pyrodrone Combo
By bundling these two remarkable components, Pyrodrone helps you achieve both technical perfection and cost savings. Purchasing them together offers the convenience of guaranteed compatibility while keeping your budget intact. Whether you’re a beginner or an experienced drone pilot, this combo offers everything you need for a seamless, thrilling flying experience. Don’t miss out on this exceptional deal to take your drone performance to the next level!

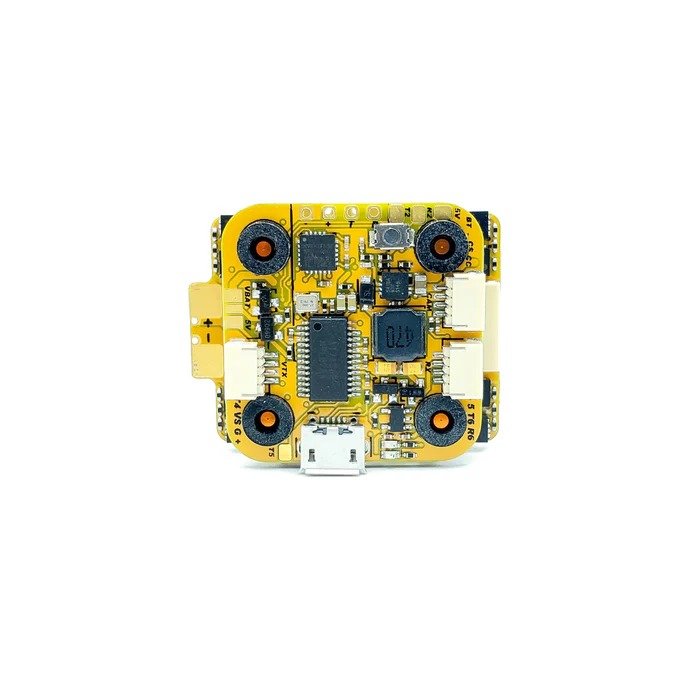

Flight controller description:
Pyrodrone F7 20*20 flight controller features all the bells and whistles and more.
Using MPU6000 gyro which has been proven over and over to be the best choice when it comes to handling vibrations, connector plugs for VTX , RX and camera while still providing pads for those who like solder over connectors ,
Pit mode with seamless and easy setup are just some of the many features this FC provides.
Features:
- – Camera, VTX and RX connector for easy plug and play setup (solder pads also available)
- – Built in VTX switch (Pit mode) through Betaflight (No soldering or jumpers required)
- – Offset 4in1 ESC harness socket to allow building lower stack (ESC Telemetry UART 3)
- – Direct solder pins for TBS Nano RX
- – M2 and M3 stack hardware compatible (M2 with the provided adapters)
- – Selectable jumper 5V or Vbat to power VTX
- – USB OTG capable to power external BT module
- – VTX plug with smartaudio On UART 4
- – RX plug for frsky, TBS Nano RX Etc.. on UART 6
- – Built in Camera Control pin with necessary resistor and capacitor near camera connection
Specifications:
- MCU: STM32F722RET6 216MH Proven noise free MPU6000
- Built in Betaflight OSD
- Up to 8S (50V max) direct battery power
- Buzzer pads for external buzzer
- Built in voltage monitoring resistor
- 5V 1.5A BEC
- Led strip shares 5V with 5V/1.5A BEC
- 6 UARTS: UART1, UART2, UART3, UART4, UART5, UART6
- Built in camera control pin with resistor and capacitor
- 5 Full UARTS with RX AND TX pins
- Logical pin layout for cleanest build possible
- 8 pin 4 IN 1 ESC plug
- Remapable LED pad for additional motor output
- TX3,RX3 can be used for I2C for external compass
- 5V, VBAT selectable VTX and CAM power
- VTX pit mode switch (positive switch)
- 20 X 20 mounting hole
Includes:
- 1 x Pyrodrone F7 20*20mm FC
- 5 x M3 to M2 brass adapters
- 5 x Rubber grommets
- 3 x 4in1 Socket connectors (8 pin, 9 pin, 10 pin)
ESC Description:
Finally one of the most if not THE most reliable 20*20 Speed controllers now in your favorite color and brand!
As racers we are all striving shaving grams from our builds, With this 20×20 ESC from Aikon you will be able to shave some grams without worrying about reliability.
The Aikon AK32 4-in-1 35A 6S is a new generation ESC that uses a variety of bleeding edge technologies in hardware and firmware.
Specifications:
Battery: 2-6S
Firmware: BLHELI32
Signal wire length: 100mm
Battery wire length: 100mm
