Sequre H743 V2 & E70 G2 4-8S Stack H743 V2 ICM42688P Flight Controller and 70A BL32 128K 4in1 ESC – 30x30mm

Unleashing the Power of STM32H743

The Sequre H743 is engineered to take your projects to the next level, equipped with a cutting-edge STM32H743 processor designed for exceptional performance. Whether you’re a hobbyist, developer, or professional, this versatile processor provides the precision and speed necessary for tackling demanding applications. Get ready to experience computing performance like never before.

Exceptional Processing Speed

At the heart of the Sequre H743 lies the STM32H743 processor, a powerhouse that ensures seamless performance with its remarkable clock speeds and capabilities. Whether you’re working on intensive data computations, real-time processing, or automation projects, this processor performs with unparalleled efficiency. With support for advanced peripherals, it opens doors to creative possibilities while maintaining a robust and reliable execution.

Built for Versatility and Reliability

The Sequre H743 isn’t just a tool—it’s a technological solution. Whether supporting complex IoT applications, robotics systems, or industrial-grade operations, the reliability of the STM32H743 sets it apart from other processors. Its durable design and compatibility with numerous modern systems make integration seamless and straightforward while ensuring optimum performance even under demanding conditions.

Features:

SEQURE H743 V2 FC

• Equipped with a high-performance STM32H743 processor, the operation frequency is up to 480MHz, offering rapid control response.
• Adopts ICM42688P gyroscope, this FC realizes precise gesture sensing and stable control, improving the reliability of the system.
• SEQURE H743 has an onboard barometer, OSD, and 16MB large capacity black box, which effectively records the flight data.
• Reserve 6 UARTS to meet the needs of most devices.
  It can control up to 8 motors, easily constructing X8.
• Equipped with a plug-in connector and dual BEC outputs, the FC provides independent 10V voltage, allowing the DJI O3 and analog VTX to plug in for use directly.
• Supports wide voltage input of 4-8S Lipo, mounting holes of 20mm and 30.5mm. Mini design, suitable for various types of racks like racing, aerial photography, freestyle, etc.

E70 G2 4IN1 ESC

• STM32G071 high-performance processor, using BLHeli_32 firmware, 2-8S wide voltage input, single-channel continuous current 70A, peak current up to 150A.
• Built-in galvanometer, supports telemetry return, and updates motor speed, temperature, current and other data in real time.
• High-quality high-power MOSFET, ultra-high efficiency conversion, reducing losses and extending flight time.
• High copper thickness multi-layer PCB design increases over-current capability, efficient heat dissipation performance, and is not afraid of load pressure.
• Precise switch interval time control, speeding up the response speed of the ESC, smooth control, and delicate feel.
• PWM frequency supports 16KHz-128KHz, and excellent circuit design to solve the out-of-step problem.
• Innovative design, oblique surface soldering pad, motor wiring layout is more beautiful and safe, while reducing welding difficulty.
• 30.5×30.5mm installation hole spacing design, compact structure, adaptable to various types of racks, easy to install.

Specifications:

SEQURE H743 V2 FC

• Processor: STM32H743
• Gyroscope: ICM42688P
• Barometer: BMP280
• OSD Chip: AT7456E
• Black Box: 16MB
• Firmware: SEQUREH7
• Input Voltage: 4-8S Lipo
• BEC Output: 5V/2.5A，10V/2A
• UARTS: 6
• Control Motor: M1-M8
• LED: WS2812 LED Strip
• Buzzer: Support
• ESC Telemetry: RX8
• USB: Type-C
• Installation Hole Distance: 20x20mm,  Φ4mm / 30.5×30.5mm,  Φ4mm

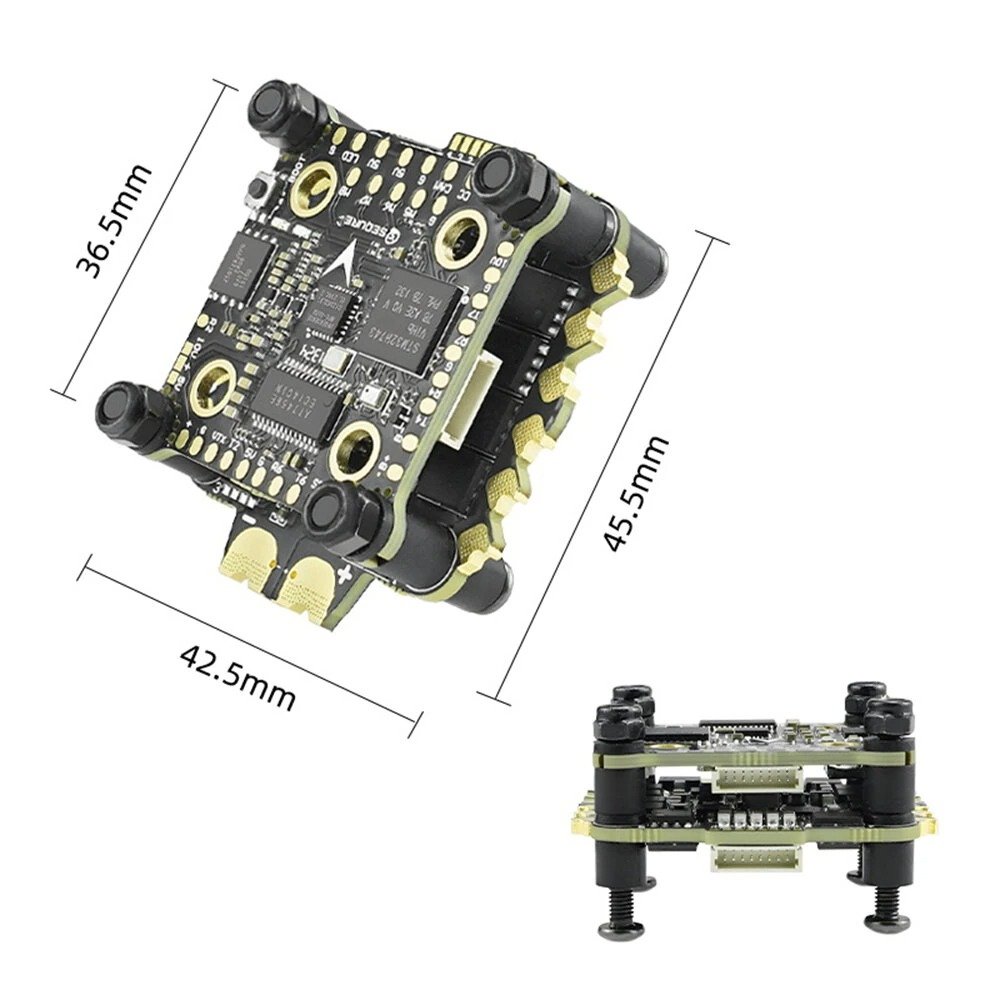

• Product Size: 36.5×36.5x6mm

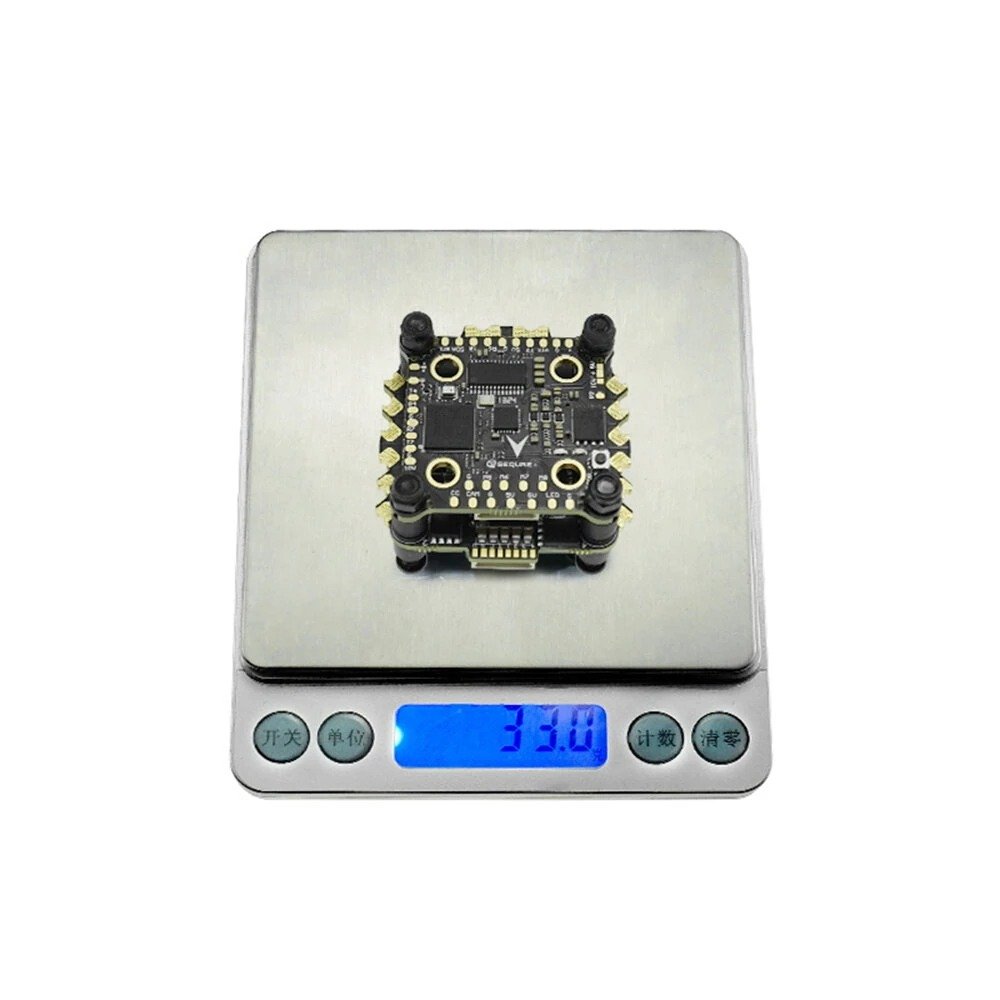

• Product Weight: 7.5g

E70 G2 4IN1 ESC

• Processor: STM32G071
• PWM Frequency: 16KHz-128KHz
• Working Voltage: 2-8S Lipo
• Continuous Current: 70A
• Peak Current: 150A
• Support Protocol: Dshot600/300/150,Oneshot,Multishot,PWM
• Firmware Version: BLHeli_32
• Telemetry Return: YES
• Galvanometer: YES
• BEC: NO
• Mounting Hole Spacing: 30.5 x 30.5mm, 4mm/M3
• Product Size: 45.5 x 42.5 x 6mm
• Product Weight: 17.5g

Package Includes:

• 1 x SEQURE H743 V2 FC
• 1 x E70 G2 4IN1 ESC
• 1 x 30AWG 40mm Reverse Double Headed SH1.0-8P Flat Cable
• 2 x 30AWG 100mm Single-head SH1.0-4P Flat Cable
• 1 x 60mm Length 12095 5V Buzzer
• 10 x M3x8mm Silicone Shock-absorbing Washer(Black)
• 2 x 12AWG 100mm Power Cable (black/red)
• 1 x XT60H-M Black Male Connector
• 1 x 35V 680UF Solid Capacitor
• 4 x M3x25mm Screw
• 4 x M3 Sleeve Nut
