Description
Unmatched Power and Versatility for Drone Enthusiasts

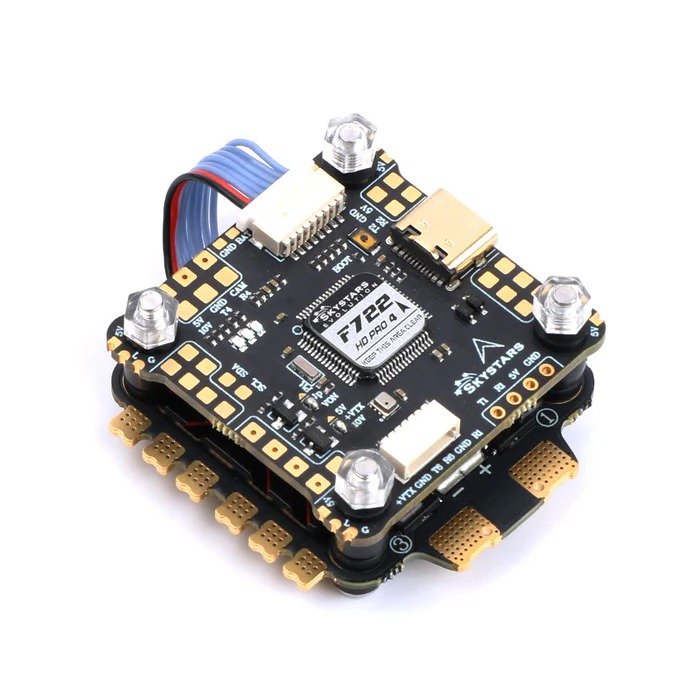

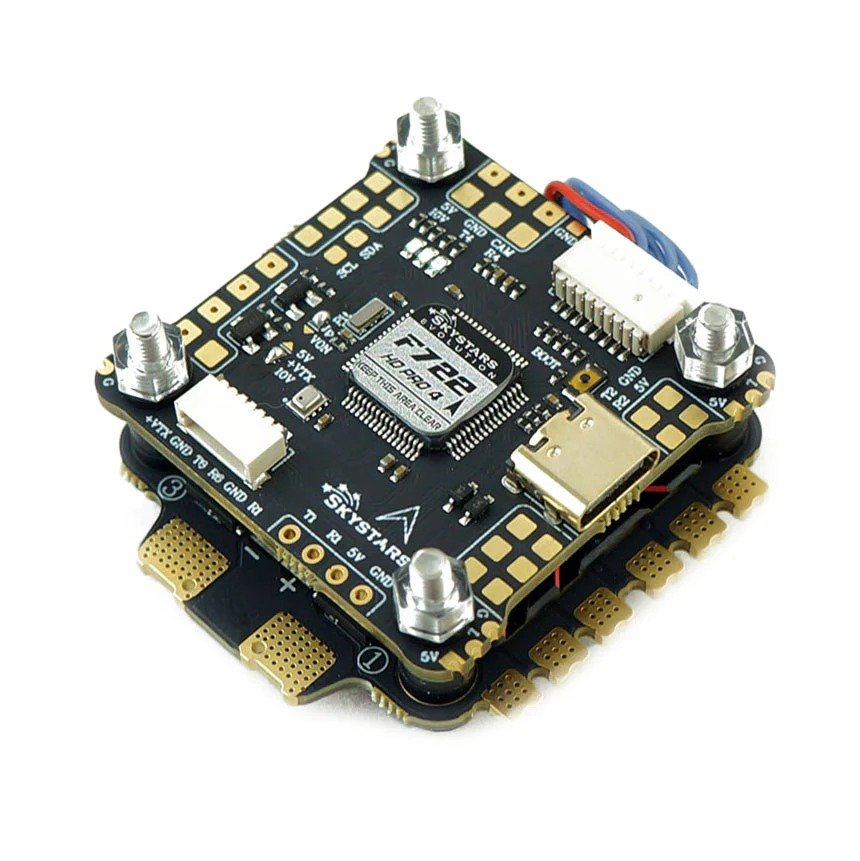

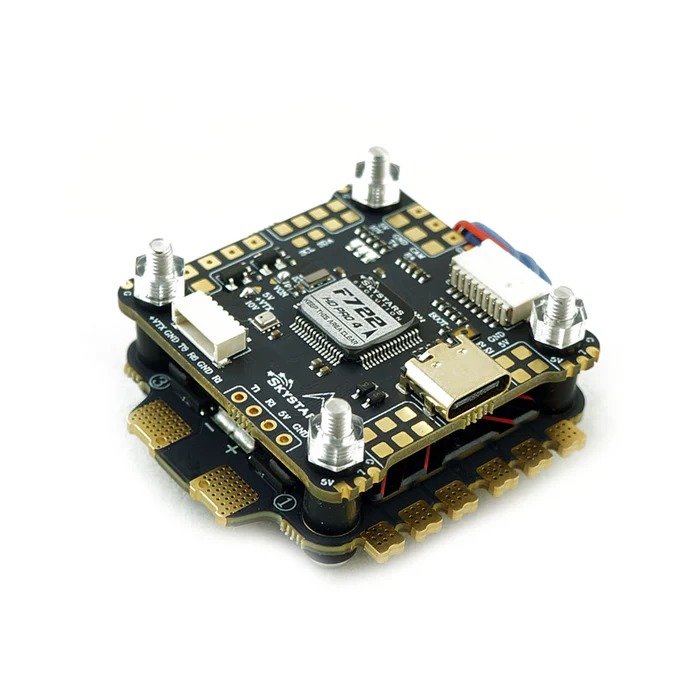

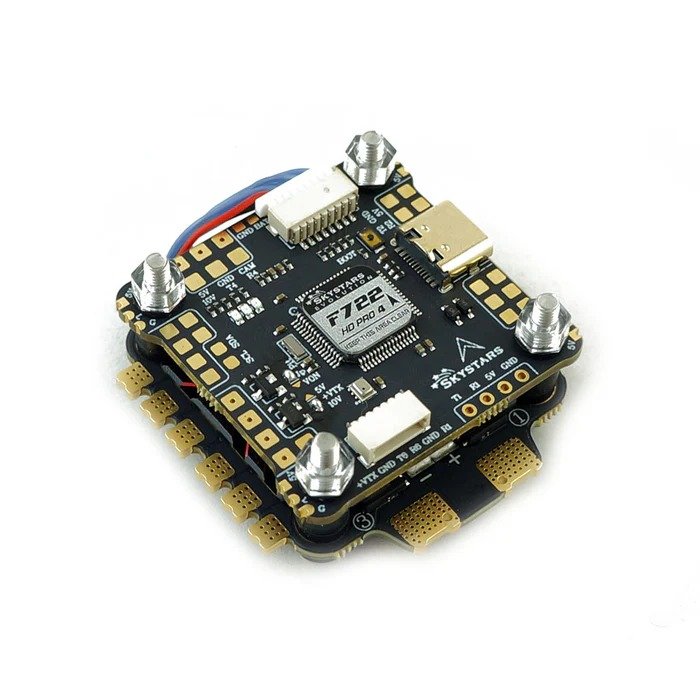

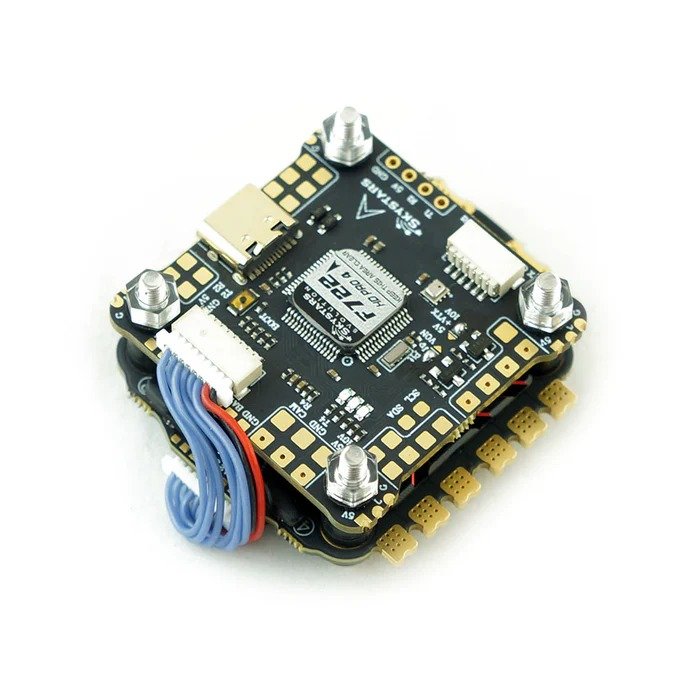

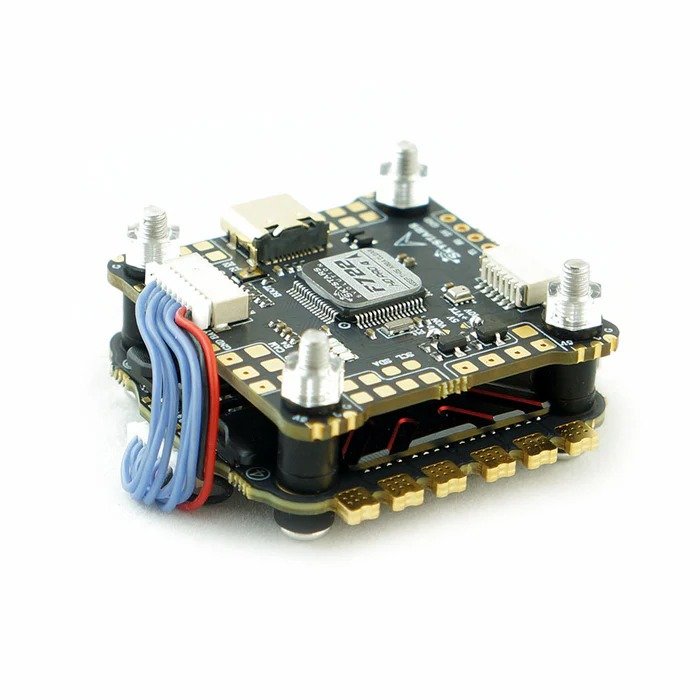

The Skystars F7 KM65 stack offers exceptional performance for drone enthusiasts, whether you’re into 5″ freestyle and racing drones or 7-8″ long-range drones. This high-performance stack is designed to elevate your flying experience, combining cutting-edge technology and robust components for seamless operation. With its advanced F7 processor, 16MB memory for blackbox logging, and versatile BEC options (5V/3A and 10V/3A), the flight controller ensures reliability and efficient power management suited to your drone’s needs.
Versatile and Convenient Video Transmission
The Skystars F7 KM65 flight controller is built to handle both digital and analog video transmission effortlessly, providing flexibility for drone setups. Whether you’re capturing stunning aerial footage or navigating challenging environments, this stack delivers seamless integration with your video systems. It also comes equipped with strategically placed LED pads in the corners, enabling easy customization and lighting setups. For added functionality, the integrated barometer provides precise altitude measurements to enhance your flying precision.

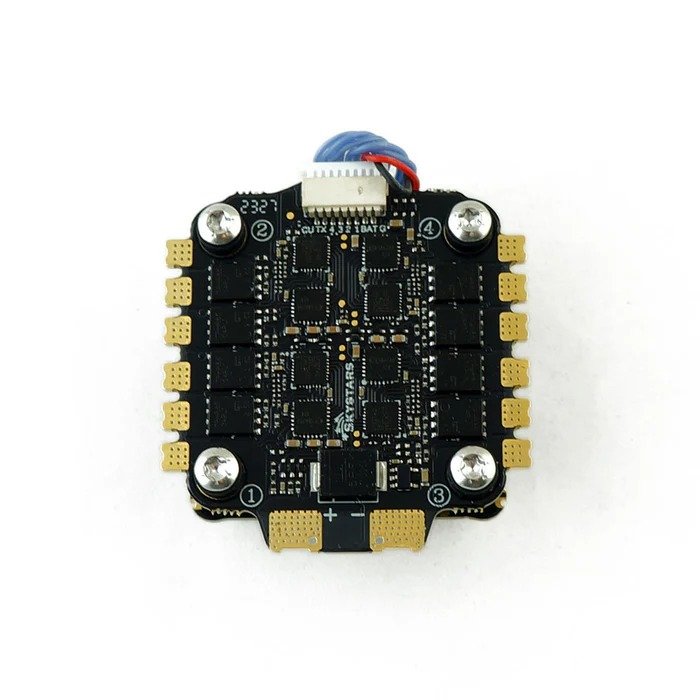

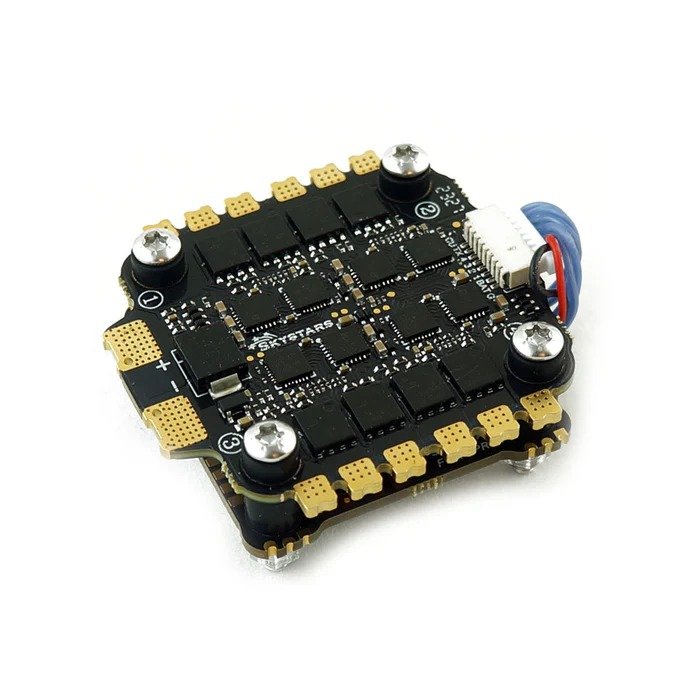

Unmatched Durability and Performance with KM65 ESC
The KM65 ESC is a powerhouse built to handle even the most demanding motors, supporting 3-6S battery power and current up to 65A. The compatibility spans motor sizes from 2207 to 2808, making it perfect for high-powered drone builds. Designed with durability in mind, the ESC features an aluminum heat sink on top for efficient heat dissipation, reducing the risk of overheating, and safeguarding your components from mechanical damage. The powerful F4 32-bit processor, combined with AM32 firmware, enables telemetry, bidirectional DShot, and PWM frequencies up to an impressive 128KHz. Additionally, a TVS diode provides essential protection against voltage spikes, ensuring your drone operates safely under intense conditions.
The Ideal Stack for Drone Pilots
Whether you’re performing daring freestyle maneuvers, racing through challenging courses, or navigating long-range drone adventures, the Skystars F7 KM65 stack is designed to meet your needs. Its combination of cutting-edge technology, reliable performance, and thoughtful design makes it an ideal choice for drone enthusiasts looking for a powerful and enduring solution. Take your drone experience to the next level with Skystars F7 KM65!
Features:
- 1. Solder pads are the largest in size compared to other FC in market.
- 2. Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.
- 3. ESC connector on top-side rather than bottom which makes it easy for repair.
- 4. TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
- 5. Powerful 3A BEC to supply all your electronics.
- 6. Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don’t get any wire overlapping this gives you a uniform twist and clean look.
- 7. Support DJI O3 connector on the top side.
- 8. Support VTX ON/OFF Pit Switch.
- 9. Gyroscope independent power supply, No power lines near MPU6000 Gyro to avoid any EMI interference.
- 10. Two stages of Quality check to reduce any faulty electronic.
- 11. Comes ready with I2C support and INAV.

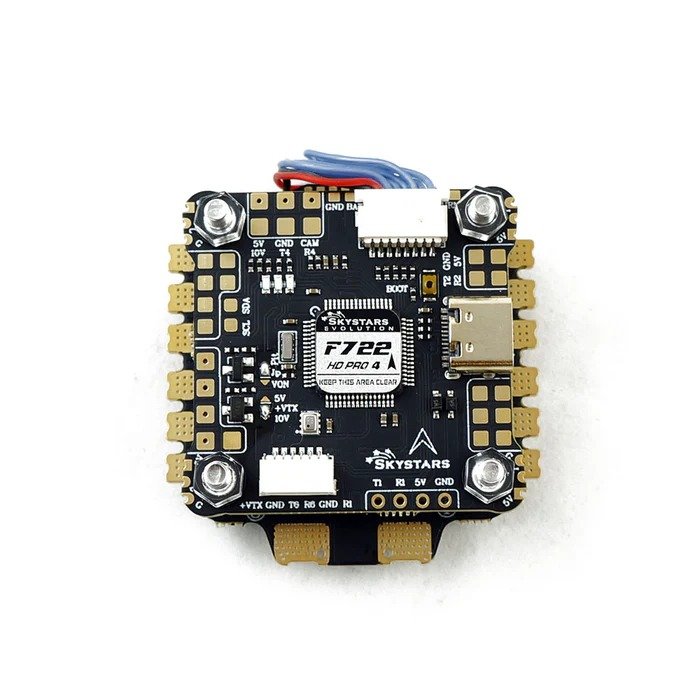

FC Specifications:
- MCU: STM32F722RET6 216MHz
- Gyroscope: MPU6000
- Baro:Bmp280
- OSD: Betaflight SPI OSD DJI HD OSD(UART6)
- Black box: 16MB
- 6x Uarts: UART 1/2/3/4/5/6
- 4x PWM outputs
- 1x I2C
- 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
- USB Type-C(USB2.0)
- 1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
- 1x JST-SH1.0_6pin connector (10V/Gnd/TX6/RX6/Gnd/Sbus)
- VTX 10V/Vbat filtered power ON/OFF Pit switch
- DJI FPV OSD is supported by any spare UART
- LED: 4 LED independent pads, support WS2812 programming lamp output.
- Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.
Power:
- Input voltage: 3-6S
- BEC: 5V/10V 3A dual-channel BEC supports stable power supply on the sky side of DJI O3
- LDO 3.3V: Max.250mA
- Flight control onboard voltage sensor.
FC Firmware:
- BetaFlight firmware: SKYSTARSF722Pro
- INAV firmware:SKYSTARSF722HD
Mounting:
- Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation
- External size 39mm × 39mm
- Flight control weight: 6.9g
AM32-65A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC Specifications:
- Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal
- Excellent over-current capability.
- Extreme stably support 6S LiPo battery with TVS.
- Excellent heat dissipation performance
- Better control performance F4 core MCU support 128K.
- Input voltage: 3-6S LiPo
- Con.Current: 65A
- Peak Current: 90A≥ 10S
- Firmware: AM_32
- Support : Dshot 600/1200
- Mounting hole : 30.5mm/M3
- BEC: No
- Product size: 45.6*45*7.6mm
- Weight: 19g
Package Includes:
- 1x F7HD Pro4 FC
- 1x KM65 128K AM32 4IN1 ESC
- 8x Silicon grommets M4 to M3
- 2x JST-SH1.0_8pin cable, 4cm
- 1x JST-GH-6P cable for DJI port, 10cm
