Description
Unmatched Efficiency and Performance

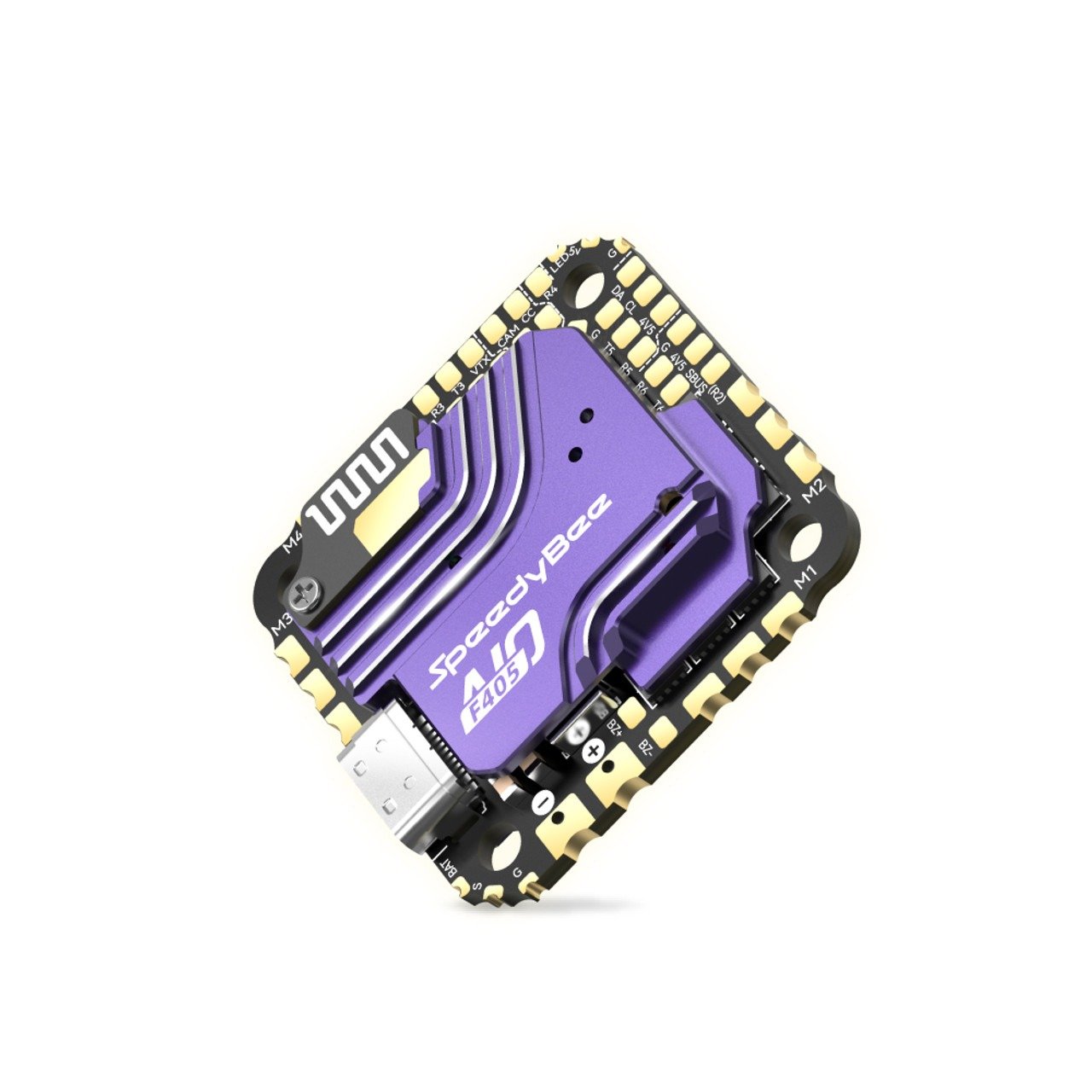

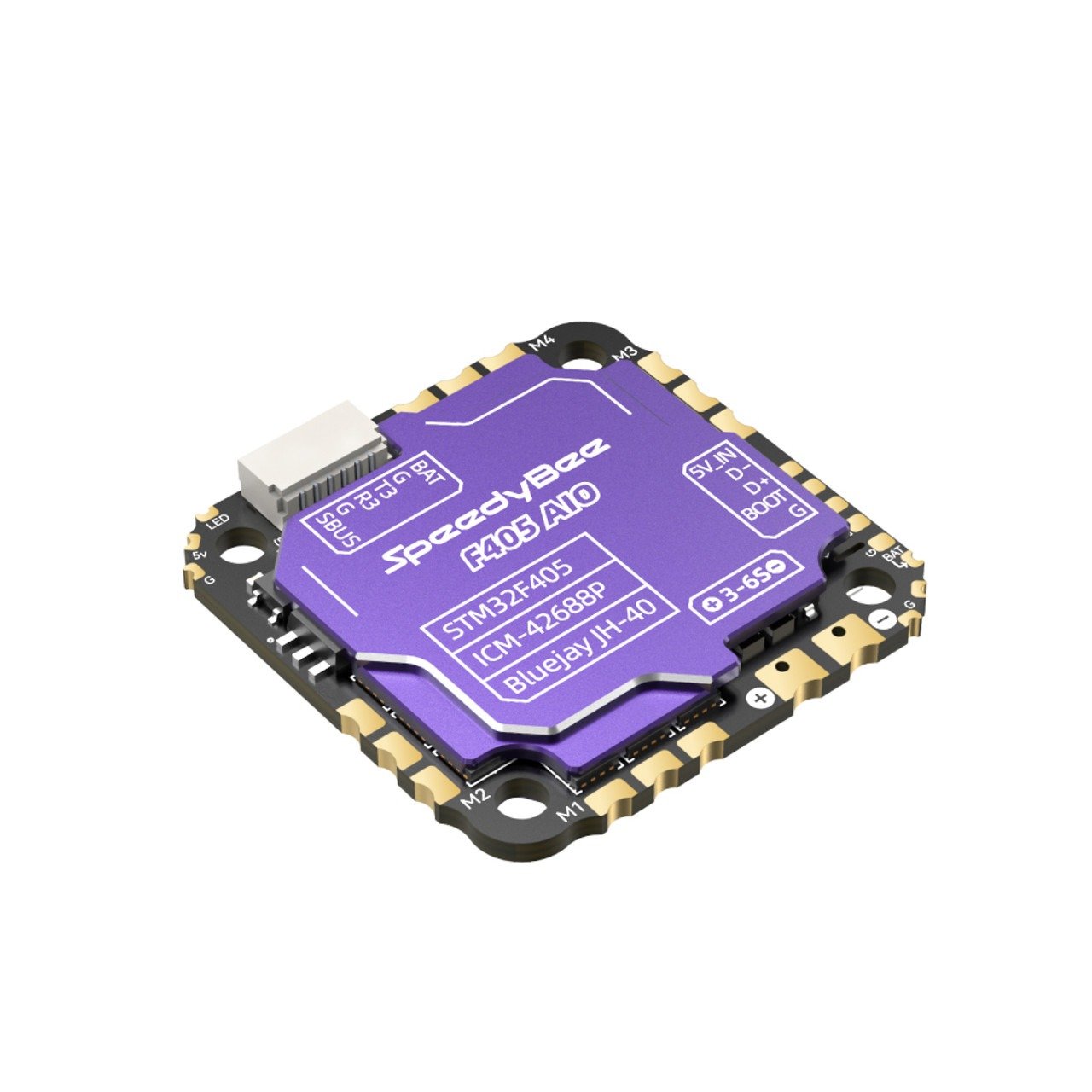

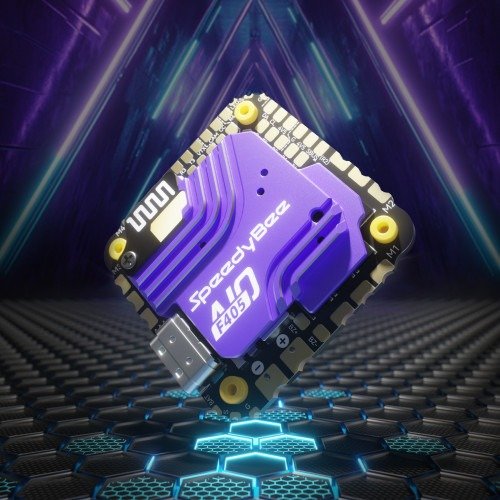

The SpeedyBee AIO – F4 FC 40A 3-6S 4-in-1 Bluejay ESC sets a new benchmark for drone enthusiasts and professionals alike. Combining the powerful STM32F405 flight controller with a 40A ESC, this all-in-one solution provides optimized performance for your drone systems. With support for 3-6S LiPo batteries and DSHOT600/300 protocols, it ensures smooth flight operations and reliable power delivery, allowing you to push boundaries and achieve unparalleled aerial control. Weighing only 13.6g, this compact design is both durable and lightweight, reducing unnecessary payload and maximizing efficiency.
Advanced Connectivity and Features
The SpeedyBee AIO boasts cutting-edge Bluetooth BLE functionality, allowing wireless firmware updates and seamless pairing with compatible devices. With 8MB of flash memory, you can store essential flight data without worry. Built for the modern drone system, this flight controller offers full Betaflight compatibility, enabling advanced flight configurations and operations. Adding to its adaptability, it includes multiple UART ports for connecting peripherals and LED pads for vibrant customization, making it an ideal choice for drone builders who demand sophistication and flexibility.
Reliability and Ease of Use
Engineered for convenience and dependability, the SpeedyBee AIO features a BOOT button for effortless recovery and troubleshooting during firmware updates or configurations. Its robust design ensures stability even under demanding conditions, establishing itself as a trusted companion for drone pilots striving for excellence in every flight. Whether you are a hobbyist or a professional, this product has everything you need to elevate your flight experience with powerful outputs and efficient operations.
Features
- Camera Parameter Adjustment via Betaflight CC pads supported
- Compatible with DJI O3, RunCam Link, Caddx Vista
- 25x25mm Mounting Pattern
- Battery Support 3-6S LiPo
- 40A Continuous Current
- Betaflight Compatibility
- 45A (10s) Burst Current
- Easy firmware recovery
- Flight Controller & ESC
- 8MB Flash Memory
- ICM-42688P Gyro
- BLE Bluetooth
- Lightweight
Specifications
FLIGHT CONTROLLER
- 6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
- BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
- 9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
- Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)
- DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering
- UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
- 5V BEC Output: Three 5V outputs, total current 2A (shared with 4V5)
- Supported Flight Controller Firmware: BetaFlight (Default), INAV
- Betaflight CC Pads (Camera Parameter Adjustment): Supported
- Dimensions: 33.0mm (length) x 33.0mm (width) x 8mm (height)
- Bluetooth BLE: Supported, Bluetooth speed enhancement 2.0
- LED Pads: Supported, used to control WS2812 LED lights
- Wireless Download & BlackBox Analysis: Not supported
- 4V5 Output: Two 4V5 outputs, total current 1A
- Firmware Target Name: SPEEDYBEE F405AIO
- Mounting: 25.5 x 25.5mm, 2mm hole diameter
- Buzzer Pads: Supported, BZ+ and BZ- pads
- Product Name: SpeedyBee F405 AIO
- Input Voltage: 3S-6S LiPo battery
- Weight: 13.6g (including CNC)
- SmartPort: Not supported
- Flash (for BlackBox): 8MB
- Barometer: SPA06-003
- USB Port Type: Type-C
- ESC Telemetry: None
- Gyro: ICM-42688P
- MCU: STM32F405
- RSSI Pads: None
- OSD: Supported
- Motor: M1-M4
- I2C: Supported
ESC
- ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors; please use with caution
- Output Voltage: VBAT battery voltage (used to power the flight controller)
- Current Sensor: Supported (Scale = 254, Offset = 0)
- Product Name: SpeedyBee F405 AIO
- Input Voltage: 3-6S LiPo battery
- Firmware: Bluejay JH-40 48kHz
- Continuous Current: 40A
- Burst Current: 45A (10s)
Includes
- 1x SpeedyBee AIO – F4 FC + 40A 3-6S 4-in-1 Bluejay ESC – 25×25
- 1x Black Heat Shrink Tube for Type-C Extension Module
- 1x 4-pin*80mm Cable for Type-C Extension Module
- 1x Transparent Heat Shrink Tube for External BEC
- 1x DJI Air Unit 6pin*80mm Connection Cable
- 4x M2*6.6mm Silicone Dampering Sleeve
- 1x 6-pin*30mm Cable for External BEC
- 1x 35V 470uF Electrolytic Capacitor
- 2x Capacitor Heat Shrink Tube
- 1x Type-C Extension Module
- 1x Practice Soldering Board
- 1x XT30 Power Cable (7cm)
- 1x Power Expansion Board
- 1x Hardware Set
- 1x User Manual
- 1x BEC
