Description

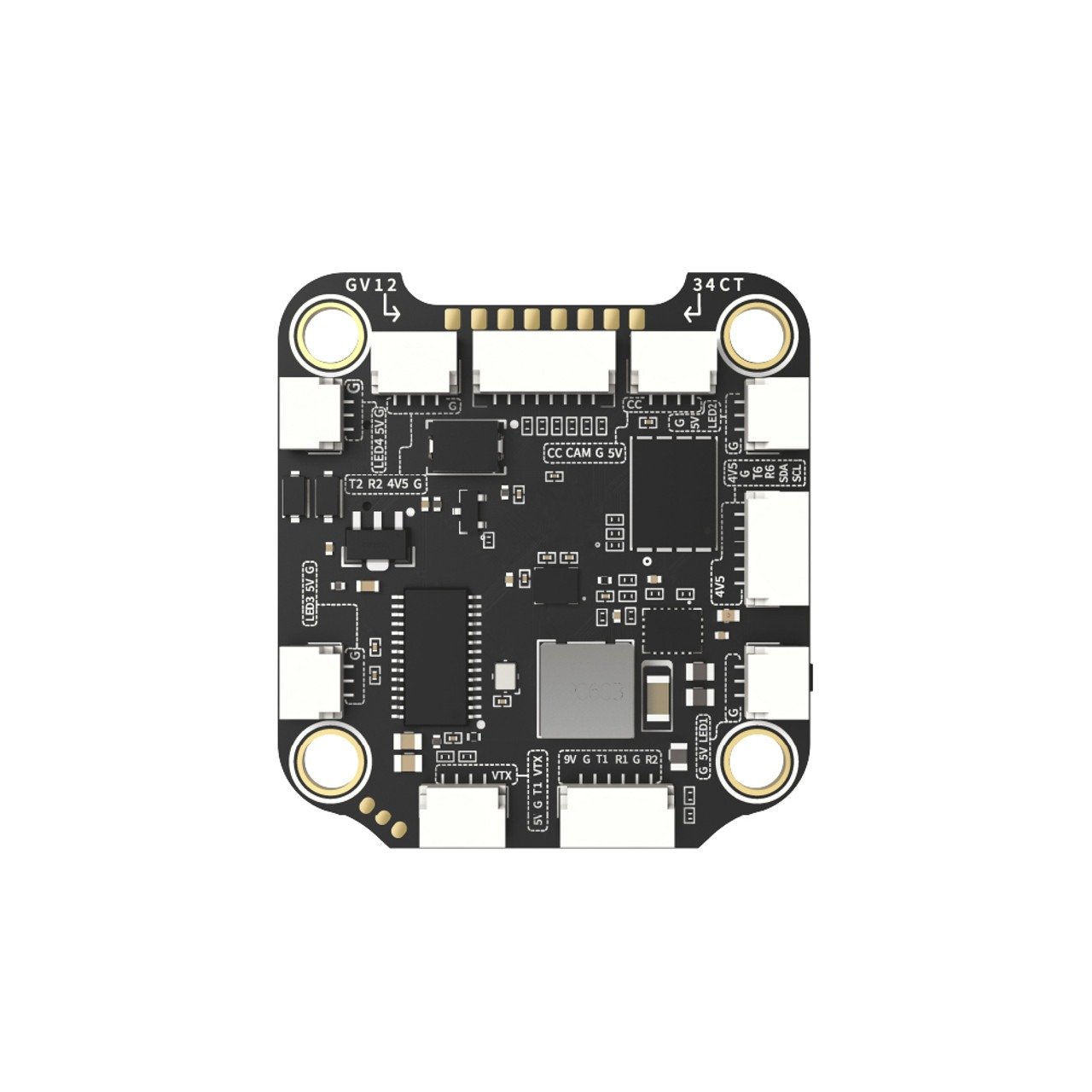

Unmatched Performance with the SpeedyBee F7 V3 Flight Controller
Take your FPV drone to new heights with the SpeedyBee F7 V3 Flight Controller. At its core, this robust flight controller features the cutting-edge F722 processing unit to ensure precision flight and respond seamlessly to intricate maneuvers. Designed with innovation in mind, it integrates the BMP280 barometer for exceptional altitude readings, making it an unparalleled choice for pilots seeking peak performance. With this FC, you can enjoy highly reliable operations in various conditions for a consistently thrilling FPV experience.
Innovative Design for Ease of Connectivity
One of the standout features of the SpeedyBee F7 V3 Flight Controller is its solder-free connectivity options. Gone are the days of tedious soldering when assembling your FPV setup. This FC’s user-friendly design lets you connect components effortlessly, saving you time while reducing potential errors during assembly. Whether you are a seasoned builder or a beginner, this flight controller simplifies the process, allowing you to focus on flying rather than troubleshooting.
Enhanced Functionality and Reliability
The SpeedyBee F7 V3 Flight Controller comes packed with advanced features aimed at optimizing your drone’s functionality. It includes a reliable 500MB Memory Blackbox, enabling you to record and analyze crucial flight data for detailed diagnostics. Its built-in FC LiPo monitoring system ensures consistent power management for extended flight sessions while safeguarding your battery’s longevity. Additionally, the integrated OSD (On-Screen Display) delivers real-time flight information right to your goggles, enhancing situational awareness and control.
Whether you’re enhancing your current FPV setup or creating a new build from scratch, the SpeedyBee F7 V3 Flight Controller is the perfect choice. With its innovative features, reliable performance, and user-friendly design, this flight controller offers everything an FPV enthusiast could ask for. Take your drone racing and aerial adventures to the next level with the SpeedyBee F7 V3 Flight Controller—your trusted companion for precision and excellence in flight.
Features
- 500MB Onboard Blackbox Flash memory
- 8 Motor output perfect for X8 Cinelifters
- 30.5 x 30.5mm Mounting Pattern
- FC LiPo Monitoring System
- Built-in Barometer
- 4 LED Plugs
- F722 FC
- Buzzer
Specifications
- Power Output:
- 1) 10 groups of 5V output, three +5V pads and 1 BZ+ pad (used for Buzzer) on the front side, and 6 +5V output included in the connectors on the bottom side. The total current load is 2A.
- 2) 2 groups of 9V output, one +9V pad on the front side and the other included in a connector on the bottom side. The total current load is 4A.
- 3) Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load Supported. Designed for 3.3V-input receivers. Up to 500mA current load.
- WiFi Support, used for data transfer, e.g firmware flashing, and Blackbox analysis.
- I2C: Supported. SDA & SCL pads on the front side. Used for magnetometer, sonar, etc.
- Support Flight Controller Firmware: BetaFlight
- ESC signal M1 – M4 on the bottom side and M5-M8 on the front side.
- LED: Used for WS2812 LED controlled by Betaflight firmware.
- UART: 5 sets (UART1, UART2, UART3, UART4, UART6)
- DJI Air Unit plug: A full DJI Air Unit JST slot onboard
- BLE Support, used for Flight Controller configuration
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- Mounting: 30.5×30.5mm, 4mm hole size
- Dimensions: 41(L) x 38(W) x 8.1(H)mm
- OSD: BetaFlight OSD w/ AT7456E chip
- BlackBox: 500MB onboard data flash
- BetaFlight Camera Control Pad: Yes
- ESC Telemetry: UART UART4 RX
- Power input: 3S – 6S Lipo
- Target: SPEEDYBEEF7V3
- SmartPort: Supported
- Baro: BMP280 (I2C)
- MCU: STM32F722
- Boot button: Yes
- RSSI input: Yes
- IMU: BMI270
- USB: Type-C
- Weight: 9G
Includes
- 1x SpeedyBee F7 V3 Flight Controller
- 1 4-Pin SH1.0 to SH1.0 Analog VTX Cable 60mm – Yellow and Blue
- 1x 6-Pin SH1.0 GPS module Cable without connector – 100mm
- 1 4-Pin SH1.0 to 3+ 2-Pin JST1.25 FPV Camera Cable – 30mm
- 1 4-Pin SH1.0 to 3+ 2-Pin JST1.25 FPV Camera Cable – 60mm
- 1 4-Pin SH1.0 to 4-Pin JST1.25 FPV Camera Cable – 60mm
- 1x 6-Pin SH1.0 GPS module Cable with connector
- 1 4-Pin SH1.0 Radio Receiver Cable – 100mm
- 1x SH 1.0mm 8-Pin Cable -30mm
- 5x M3 8mm Silicone Grommets
- 1x DJI 6-Pin Cable – 80mm
