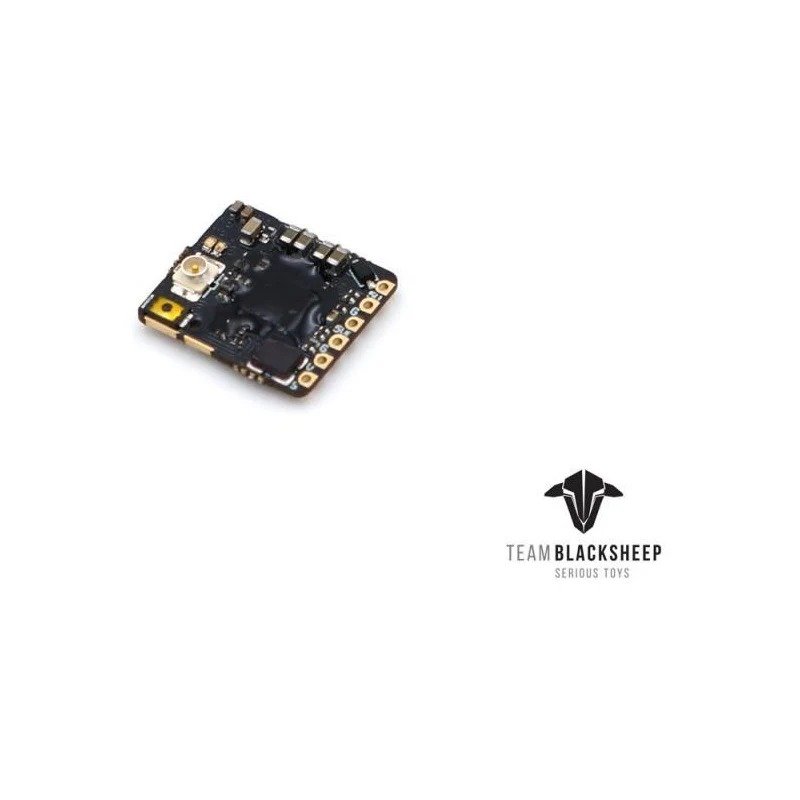

TBS Unify Pro32 Nano 5G8 V1.1 VTx Video Transmitter

Unmatched Video Transmission in a Compact Design

The TBS Unify Pro32 Nano 5G8 V1.1 VTx Video Transmitter is the ultimate solution for FPV enthusiasts seeking the perfect balance of size and performance. With its compact design, this transmitter is ideal for drones or unmanned aerial systems where space and weight are at a premium. Despite its miniature size, it delivers unparalleled video clarity and transmission stability, ensuring you stay connected and informed during high-speed operations.

Advanced Features to Enhance Your FPV Experience

Equipped with cutting-edge features, the TBS Unify Pro32 Nano offers adjustable output power options to meet your unique requirements, whether you’re flying within limited proximity or pushing the boundaries of long-range. With enhanced electrical filtering and a new RF design, this transmitter guarantees superior signal reliability and reduced noise, supporting seamless video feeds across varying conditions. The V1.1 upgrade ensures even better integration, making it a go-to choice for both professional pilots and beginners looking to elevate their FPV experience.

Effortless Installation and Ultimate Compatibility

Its lightweight, minimalistic build makes installation a breeze, fitting snugly into even the smallest drone frames. Designed to be fully compatible with other TBS products and major FPV systems, the TBS Unify Pro32 Nano 5G8 V1.1 VTx Video Transmitter integrates effortlessly into your setup, without the need for excessive modifications. Additionally, its advanced remote-control capabilities simplify configuration, allowing pilots to stay focused on their flights instead of fiddling with complex settings.

Whether you’re an FPV racer or aerial photographer, the TBS Unify Pro32 Nano 5G8 V1.1 VTx Video Transmitter guarantees a reliable and high-performing connection that adds immense value to your projects. Compact in size but big on functionality, this transmitter is your ideal choice for achieving optimal video output while saving space and weight. Upgrade your FPV gear today and experience innovation at its finest.

MAIN FEATURES

• Smallest, lightest video transmitter on the market
• Up to 500mW of output power
• Ultra-clean transmission (up to 16 pilots at once!)
• PitMode – power up your quad during a race. Now with team-race capability!
• Easy OSD, FC and RC channel changes, with fallback button menu
• Robust RF amplifier allows powering up without antenna for hours!
• Clean powerup and video switching
• CE certified

PITMODE – MADE TO RACE

Zero interference even while powered up, it’s now a possibility! If you’ve ever repaired a quad during a race, you’ll know the frustrations of not being able to power on and test your system. With PitMode, we will reduce the output power to a bare minimum (way below single digit mW’s) to allow you to power up your quad and still see the image! You’ve got less than one meter of range to put your quad through its paces before placing it on that starting grid. Using SmartAudio or CRSF, you can power up the VTx using your remote!

SMARTAUDIO V2.1 & CRSF – TEAM RACE READY

SmartAudio technology provides UART control for your entire video transmitter. Parameters such as output power, bands, channels and frequency can be freely controlled. This enables remote channel control directly from a smart device (TBS Crossfire, external bluetooth or wifi module required), from your radio (TBS Crossfire with TBS Tango or OpenTX compatible remote required), or from the OSD (e.g. Betaflight OSD, TBS CORE PRO).

With all these options available, you ought to find something that fits your bill. Together with CleanSwitch, the sky is the limit … jump between channels without interfering fellow pilots in air, create backup-/emergency-frequencies, global VTx power adjustments by race organizers or other clever systems aimed at streamlining and improving race management are now a possibility!

CLEANSWITCH – NEIGHBOR FRIENDLY

CleanSwitch is a technology developed at TBS that will ensure that your video transmitter is interference-free while powering on, or while changing channels. All current video transmitters swipe across the entire band while being powered on, often resulting in flickering and heavy interference to anyone in the air, regardless of video channel chosen. TBS CleanSwitch will allow you to power on and change channels while your buddies are in the air, without any external interference. CleanSwitch is race friendly, and pilot friendly … that’s how we like it at TBS 🙂

SPECIFICATIONS

• Operating Voltage: 3-13V
• Operating Temperature: watch for normal airflow
• Video Input Impedance: 75 Ohm
• Weight: 1g

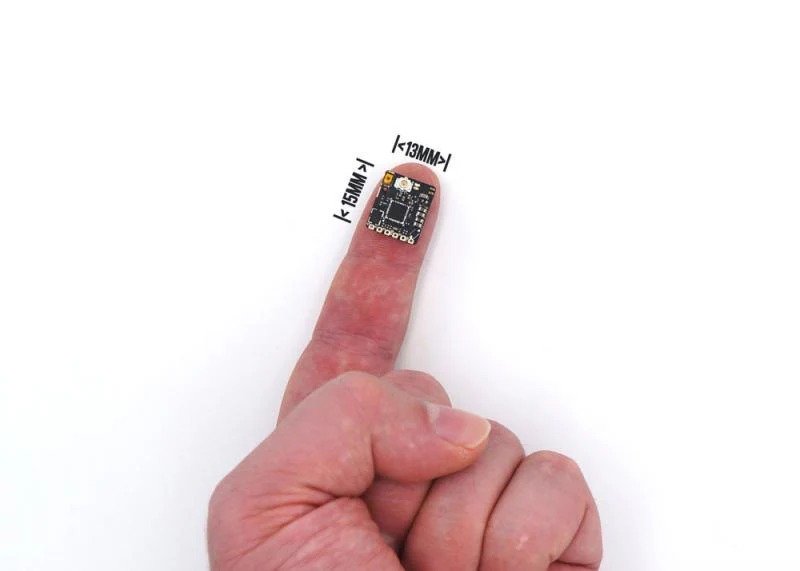

• Dimensions: 15 x 13 x 2mm
• Antenna Connector: u.FL socket
• Video Format: NTSC/PAL
• Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW)

INCLUDED

• 1x TBS UNIFY PRO32 5G8 Video transmitter
• 1x Silicone cable set (pre-tinned)
• 1x Linear whip antenna
• 1x Shrink Tube
